C0551 45 (ESP - Electronic Stability Program)
C0551 45Control Module not Added
Fault symptom
ABS warning lamp on
TCS/ESP warning lamp comes on.
Messages shown in SID.
Steering column lock not working.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Fault criteria:
Control Module not Added
System reaction to a fault:
No ABS function
No TCS/ESP function
Diagnostic help

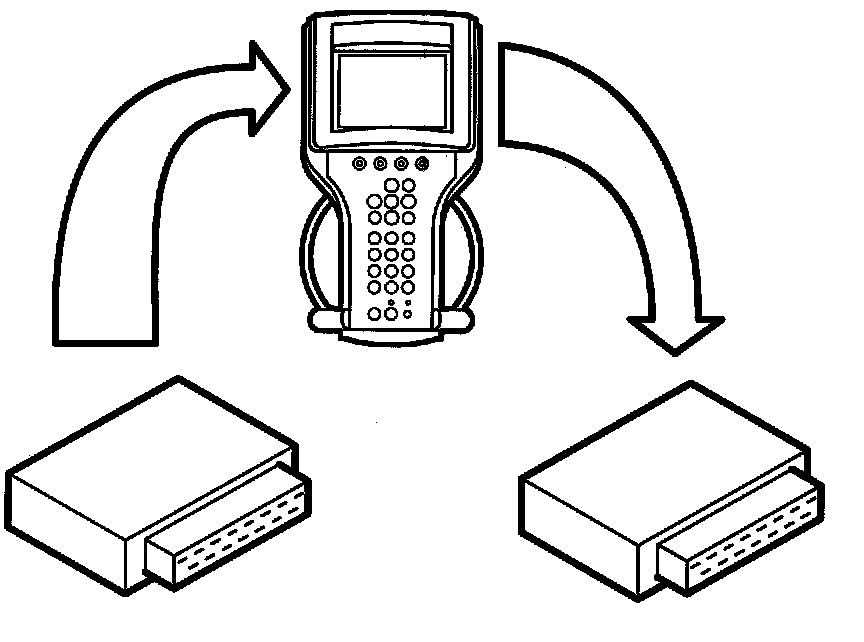

See After fitting a control module under fault diagnosis, general.
Diagnostic help
Functions in the diagnostic tool related to the fault:
See menu All - Add/Remove
