C0274

C0274 59
Control Module. Internal Fault





Fault symptom
ABS/TCS/ESP warning lamp on.
Messages shown in SID.
Steering column lock not working.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Fault criteria:
Exceeded activation time for the valves
System reaction to a fault:
No ABS function
No TCS/ESP function
Diagnostic help
Diagnosis regards:
To locate electrical faults in the control module internal electronics.
The DTC can be set if the car is driven with the Handbrake applied.

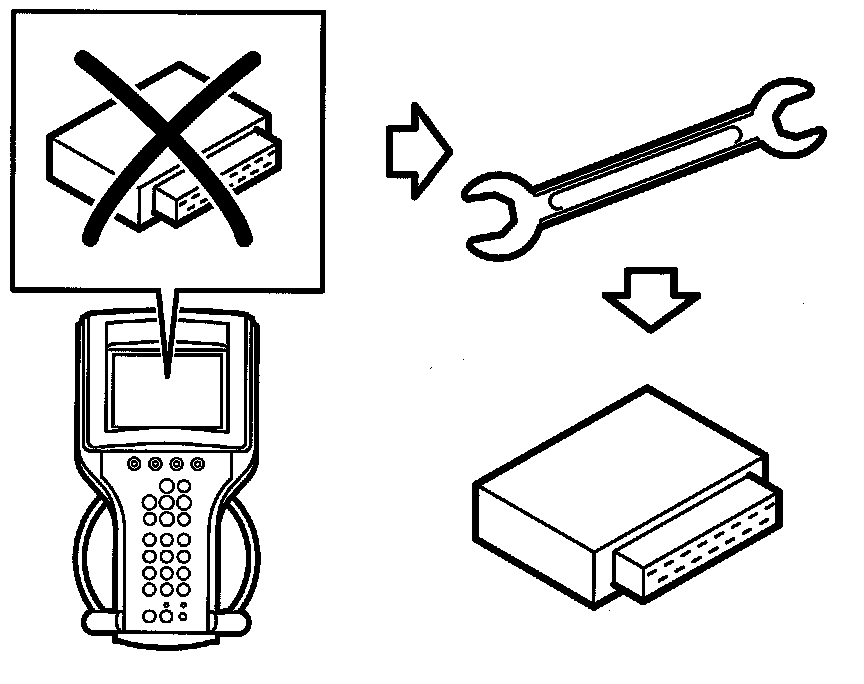

Functions in the diagnostic tool related to the fault:
See menu All - Add/Remove
