C0141 04

C0141 04
TCS/ESP Feed Valve Left Front/Right Rear, Open





Fault symptom
TCS warning lamp on.
Messages shown in SID.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Valve activated
Fault criteria:
When voltage on output exceeds 2V.
System reaction to a fault:
No TCS/ESP function
Diagnostic help

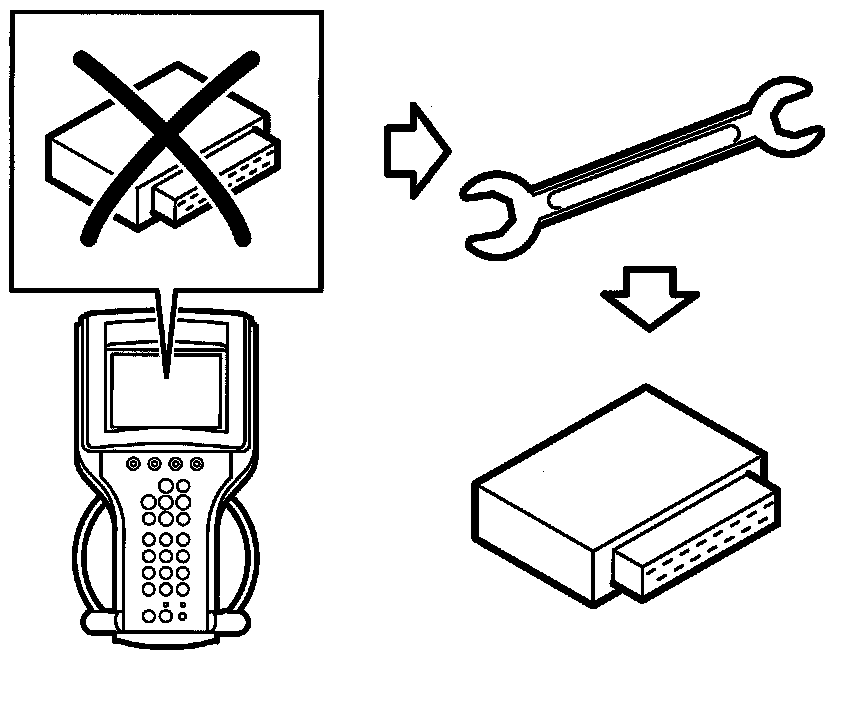

See Before changing a control module and After fitting a control module under Fault diagnosis, general.
Diagnostic help
Diagnosis regards:
Electrical fault in the component.
Functions in the diagnostic tool related to the fault:
Test value:
TC/ESP Feed Valve LF / RR
Activate:
TC/ESP Feed Valve LF / RR
(See also description of readings/activations in diagnostic tool)
