C0110 02
C0110 02Pump Motor Blocked or Shorted
Fault symptom
ABS warning lamp on
Messages shown in SID.
Steering column lock not working.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Car speed over 5 km/h
Pump motor activated.
Fault criteria:
The control module does not receive a signal from the pump motor.
System reaction to a fault:
No ABS function
No TCS/ESP function

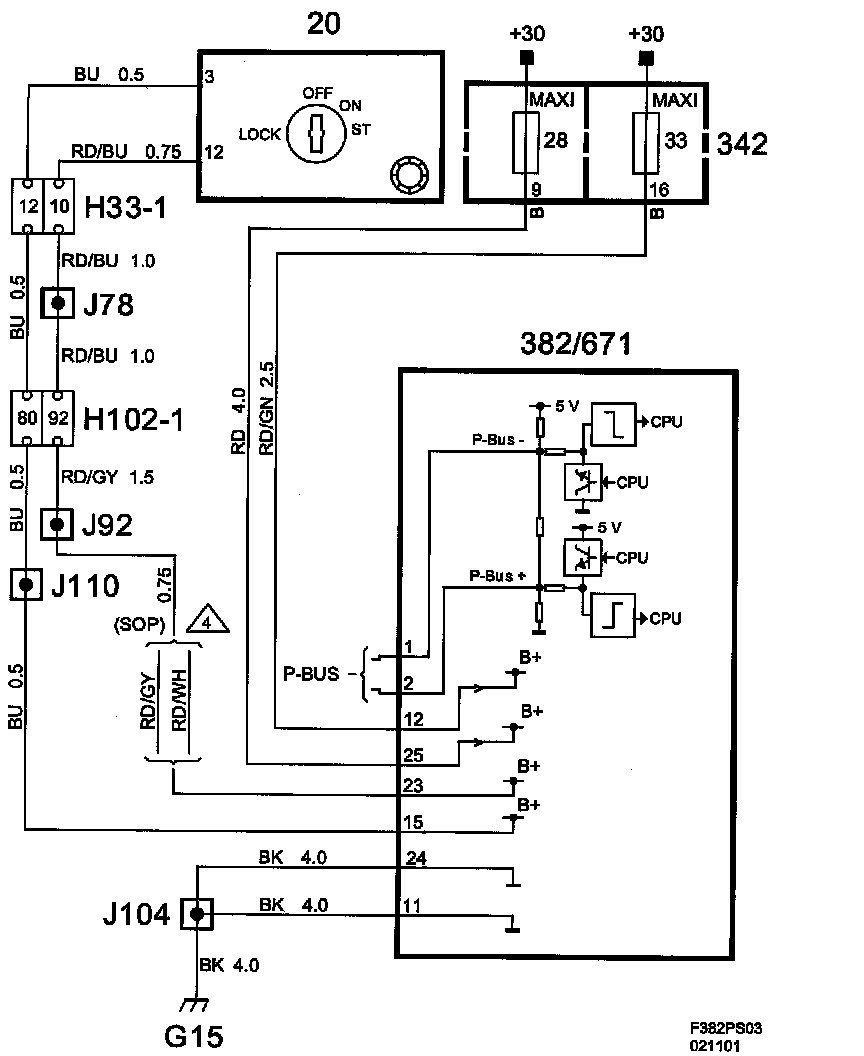

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.
Diagnostic help
Diagnosis is run each time a driving cycle starts and when the pump motor is activated.
