C0080 04

C0080 04
Left Right Outlet Valve Circuit, Open





Fault symptom
ABS warning lamp on
Messages shown in SID.
Steering column lock not working.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Fault criteria:
When voltage on output exceeds 2V.
System reaction to a fault:
No ABS function
No TCS/ESP function
Diagnostic help

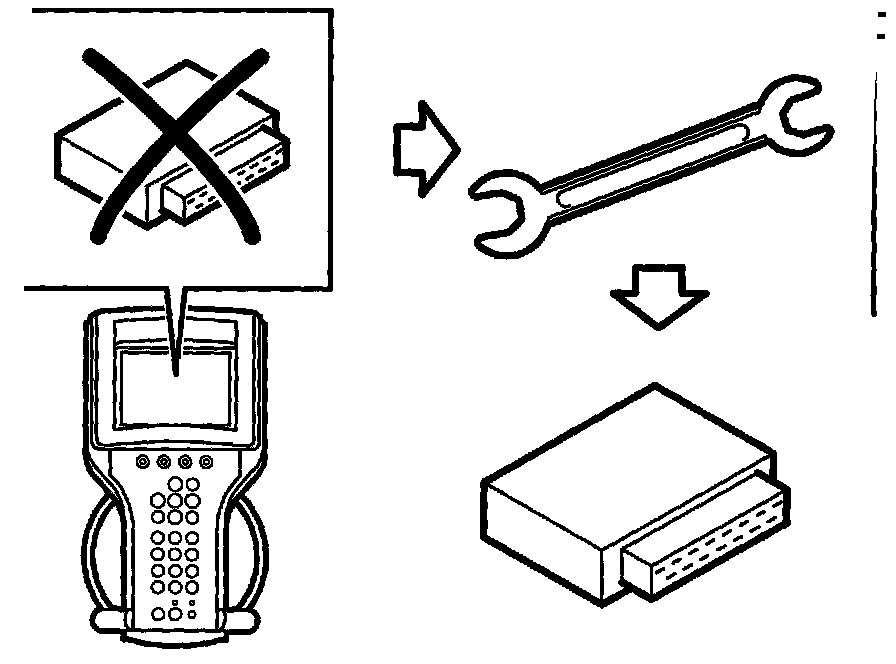

See Before changing a control module and After fitting a control module under Fault diagnosis, general.
Diagnostic help
Diagnosis regards:
Electrical fault in the component.
Functions in the diagnostic tool related to the fault:
See Reading:
Outlet Valve LR
Activate:
Outlet Valve LR
(See also description of readings/activations in diagnostic tool)
