C0070 05

C0070 05
Right Front Outlet Valve Circuit, Open/Short to B+





Fault symptom
ABS warning lamp on
Messages shown in SID.
Steering column lock not working.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Valve activated
Fault criteria:
When voltage on output exceeds 2V.
System reaction to a fault:
No ABS function
No TCS/ESP function

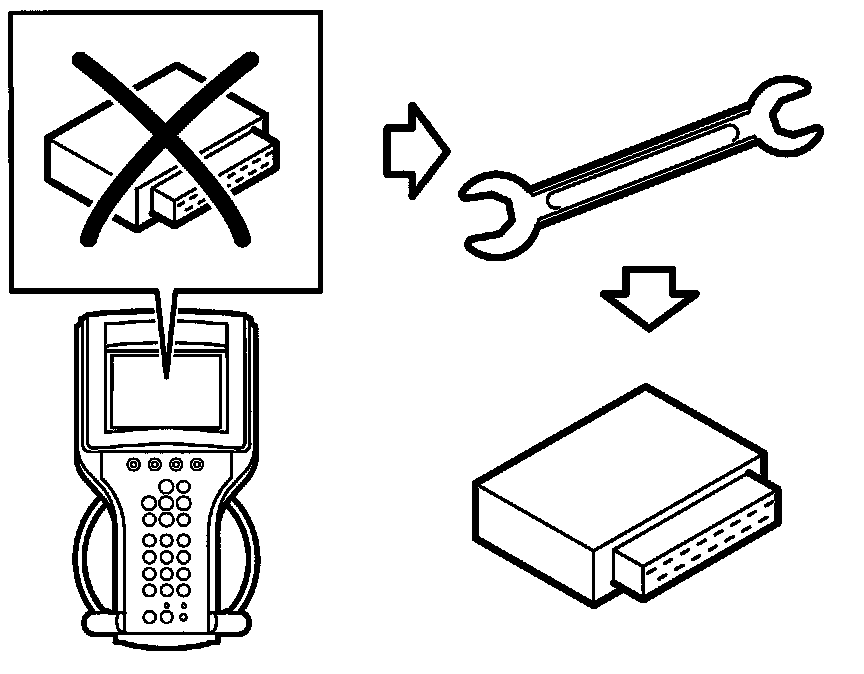

Diagnostic help
Diagnosis regards:
Electrical fault in the component.
Functions in the diagnostic tool related to the fault:
See Reading:
Outlet Valve RF
Activate:
Outlet Valve RF
(See also description of readings/activations in diagnostic tool)
