B3902 70 (CDF - Compact Disk Front) Single Disk

B3902 70

EHU or ICM Not Added






Fault Symptom
Messages shown in SID.
Car does not start.

On-Board Diagnosis
Type of diagnosis:
Continuous

Enable criteria:
Diagnostics run when ignition is ON.

Fault criteria:
EHU not joined with ICM.

System reaction to a fault:
The immobilizer-related functions are switched OFF.

Diagnostic Help
Control module was not added.

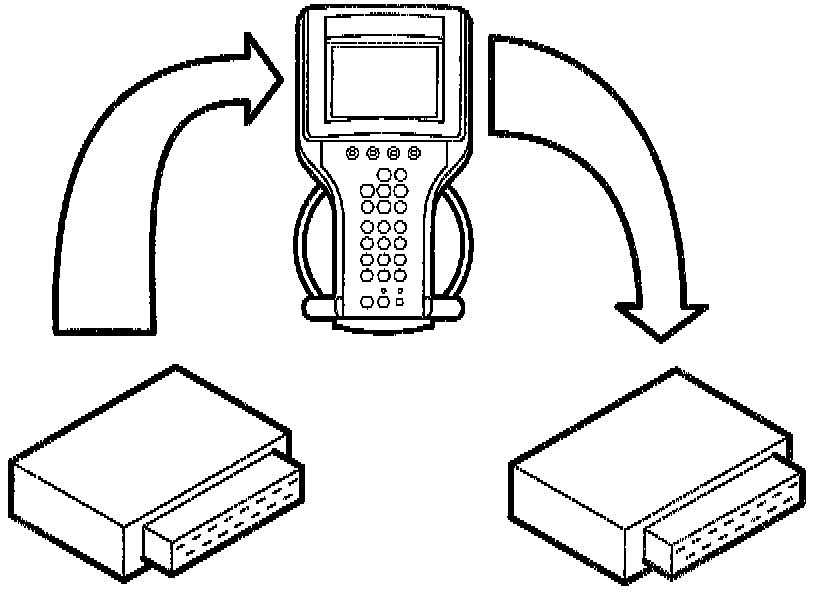

See "Procedure after fitting the control module"

Diagnostic Help
Functions in the diagnostic tool related to the fault:
See menu "All - Add/Remove"
