Home
>>
Saab
>>
2004
>>
9-3 Arc/Aero (9440) L4-2.0L Turbo (2.0 T)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Locations
>>
Component Locations
>>
Related Components
>>

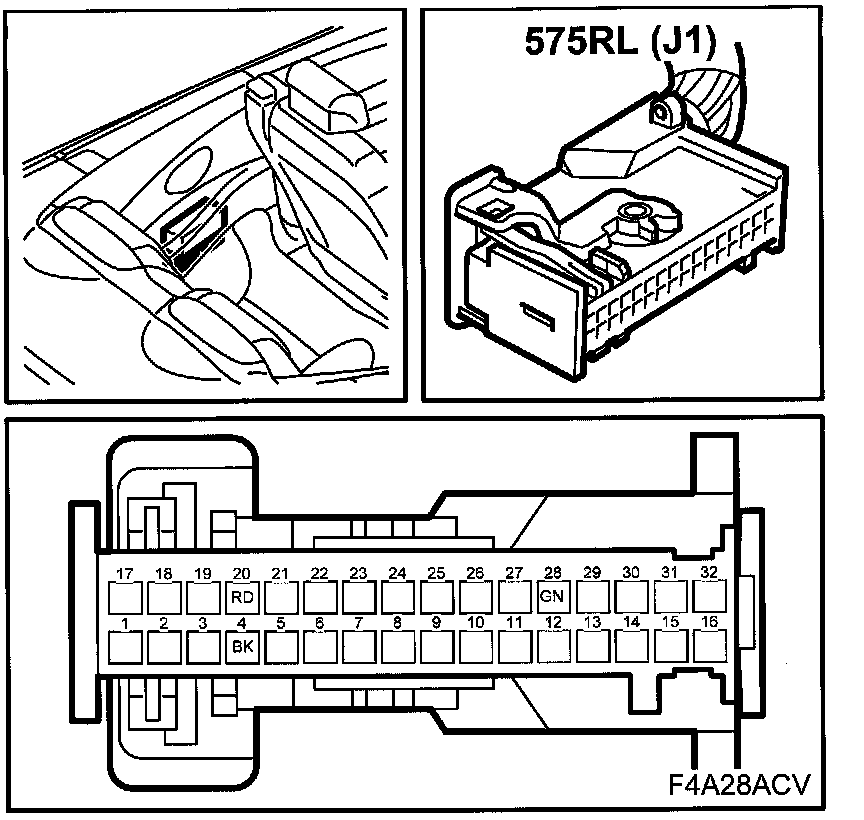

Control Module, Window Lift, Rear, LH (575RL)
Control Module, Window Lift, Rear, LH (575RL)
Control Module, Window Lift, Rear, LH (575RL)
Location:
inside the LH rear seat side trim
J1
J2
