Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Wiring Harness >> Description and Operation >> Wiring Harnesses >> Engine

Engine

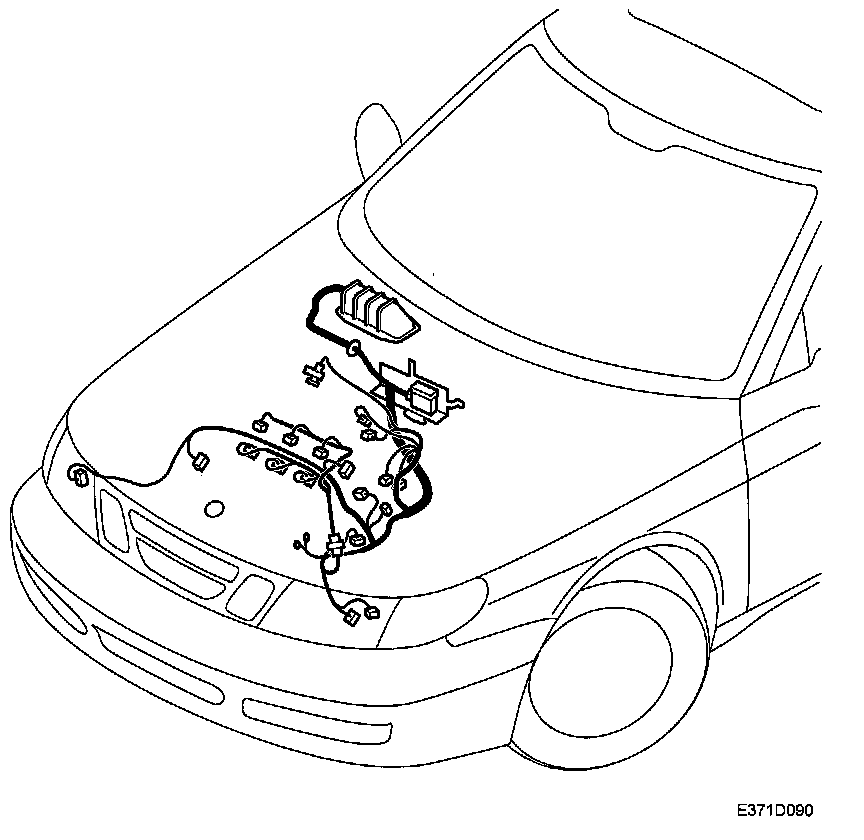

Wiring Harness, Engine

Trionic V6 petrol

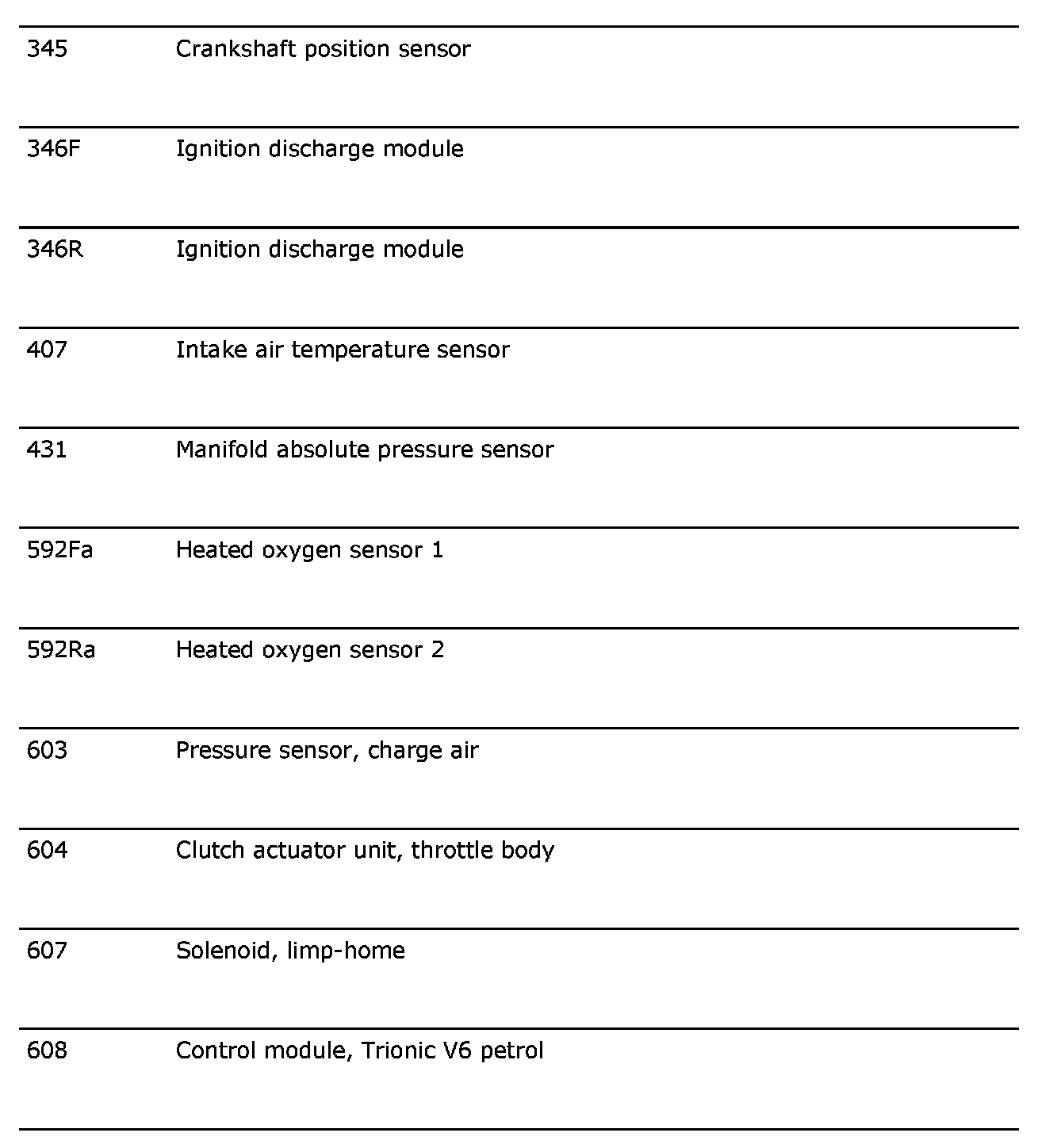

Connected Components Part 1:




Connected Components Part 2:






Starter Motor Harness, V6 Petrol
Coupled through connector to engine harness.


Connected Components:






Injector Harness, V6 Petrol
Coupled through connector to engine harness.

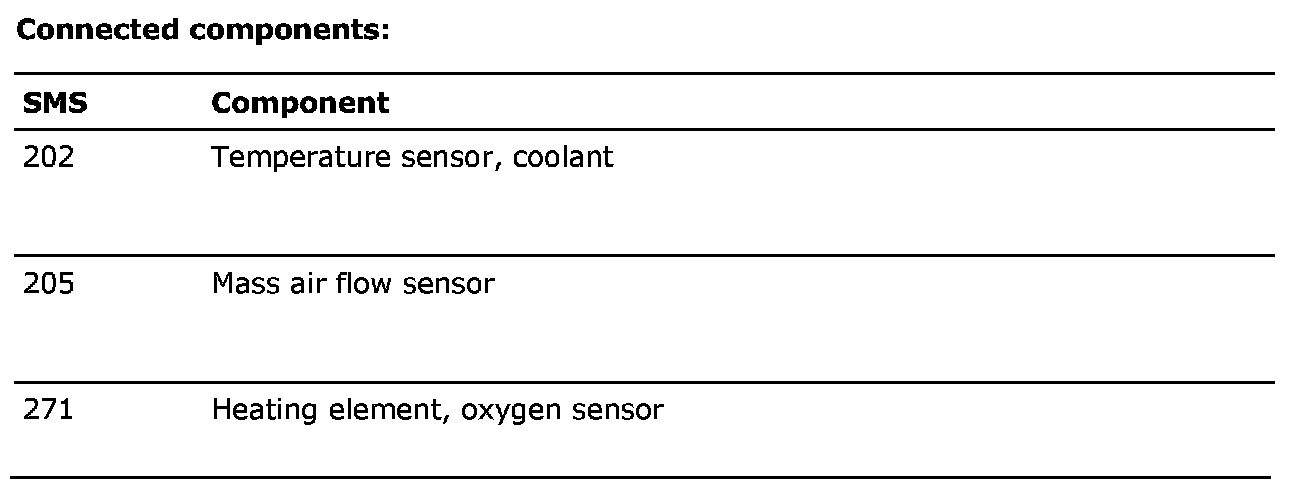

Connected Components:
