Relay Board 22b In Dashboard
Relay Board 22b In Dashboard
Relay Board 22b In Dashboard

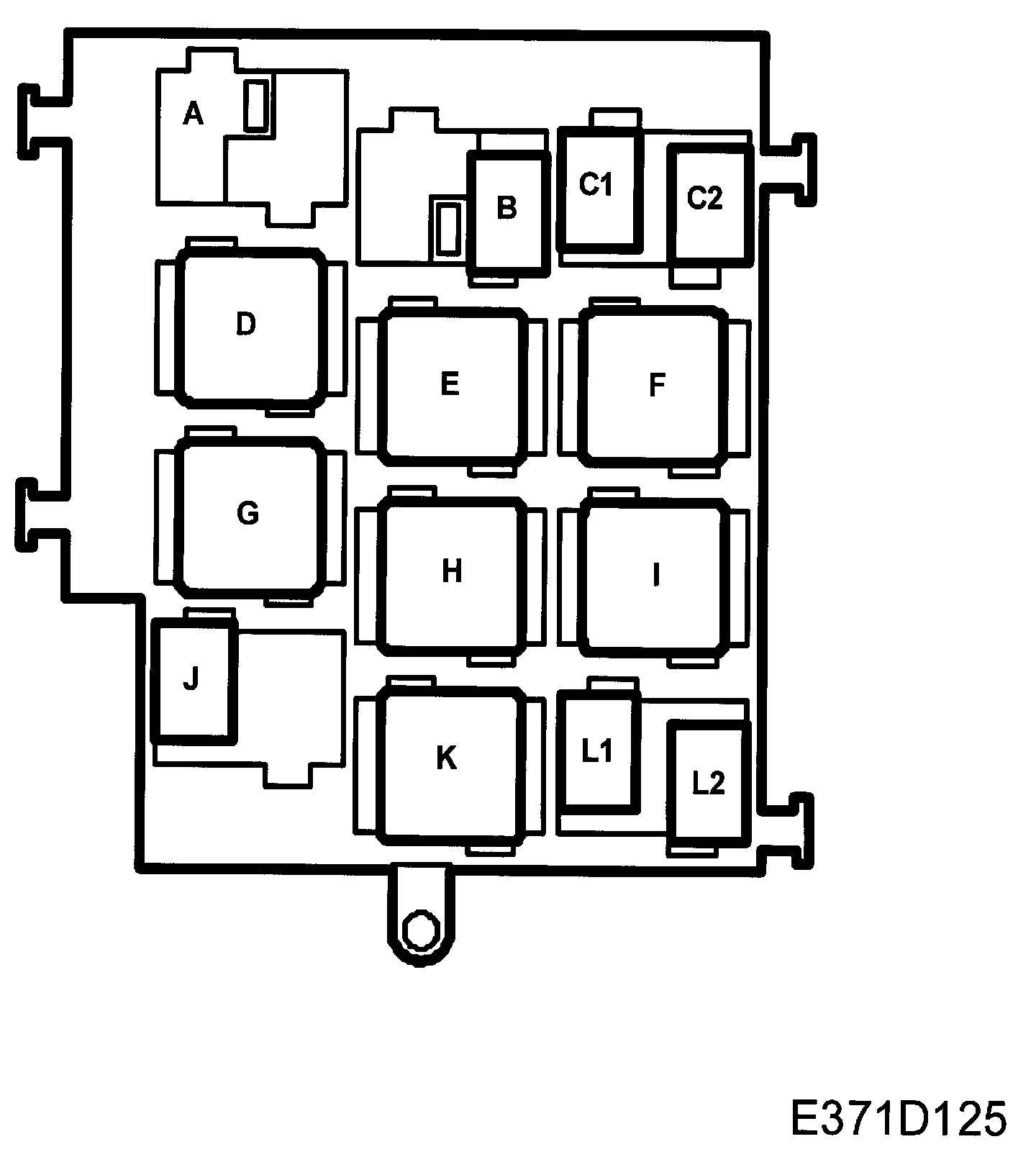

Relay Box 22b In The Dashboard:
Beneath the dashboard by the steering wheel.

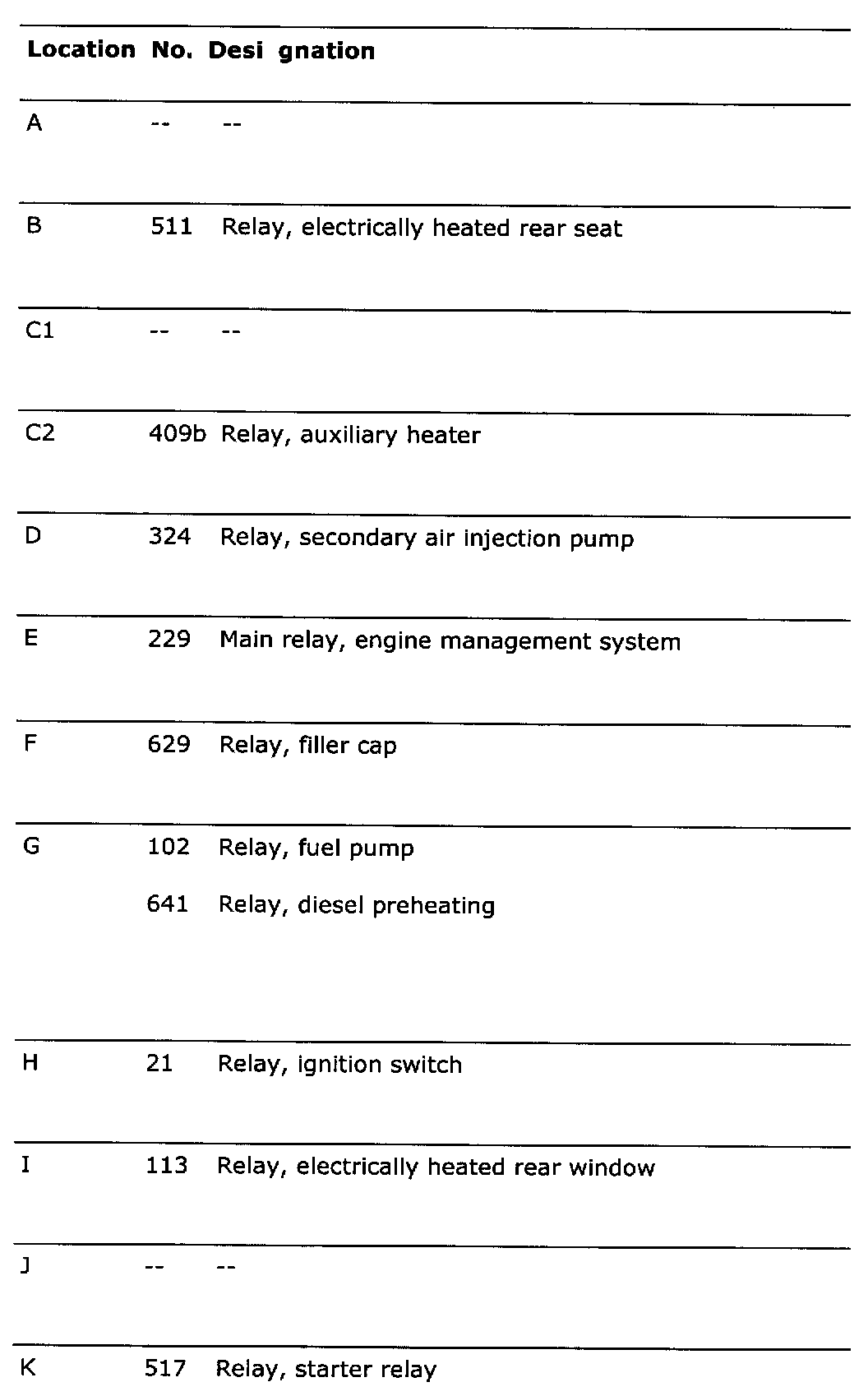

Relays A - K:

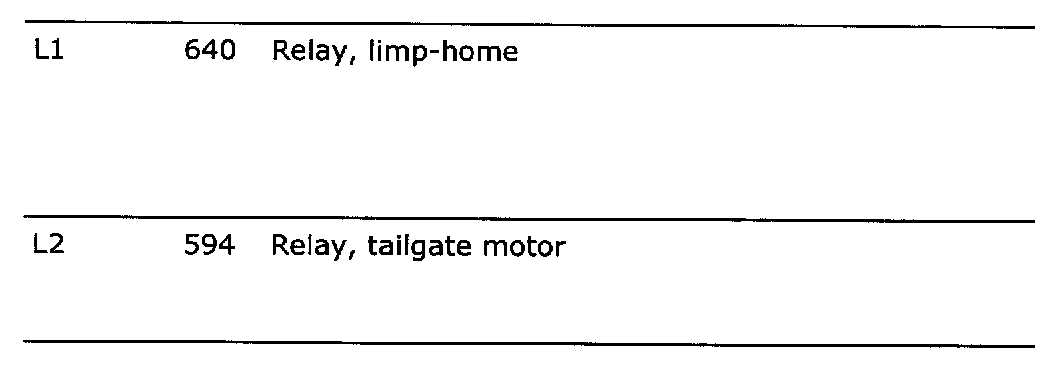

Relays L1 - L2:
