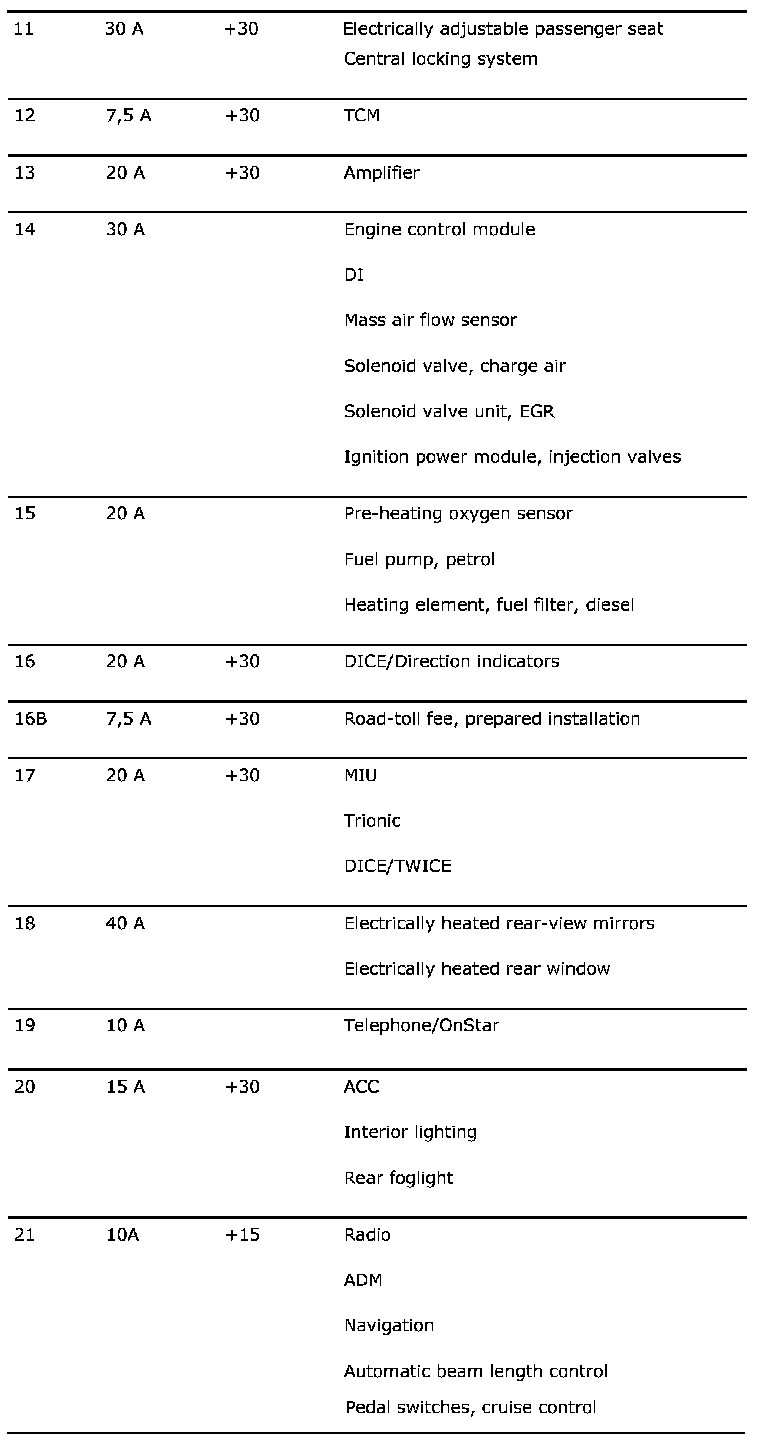

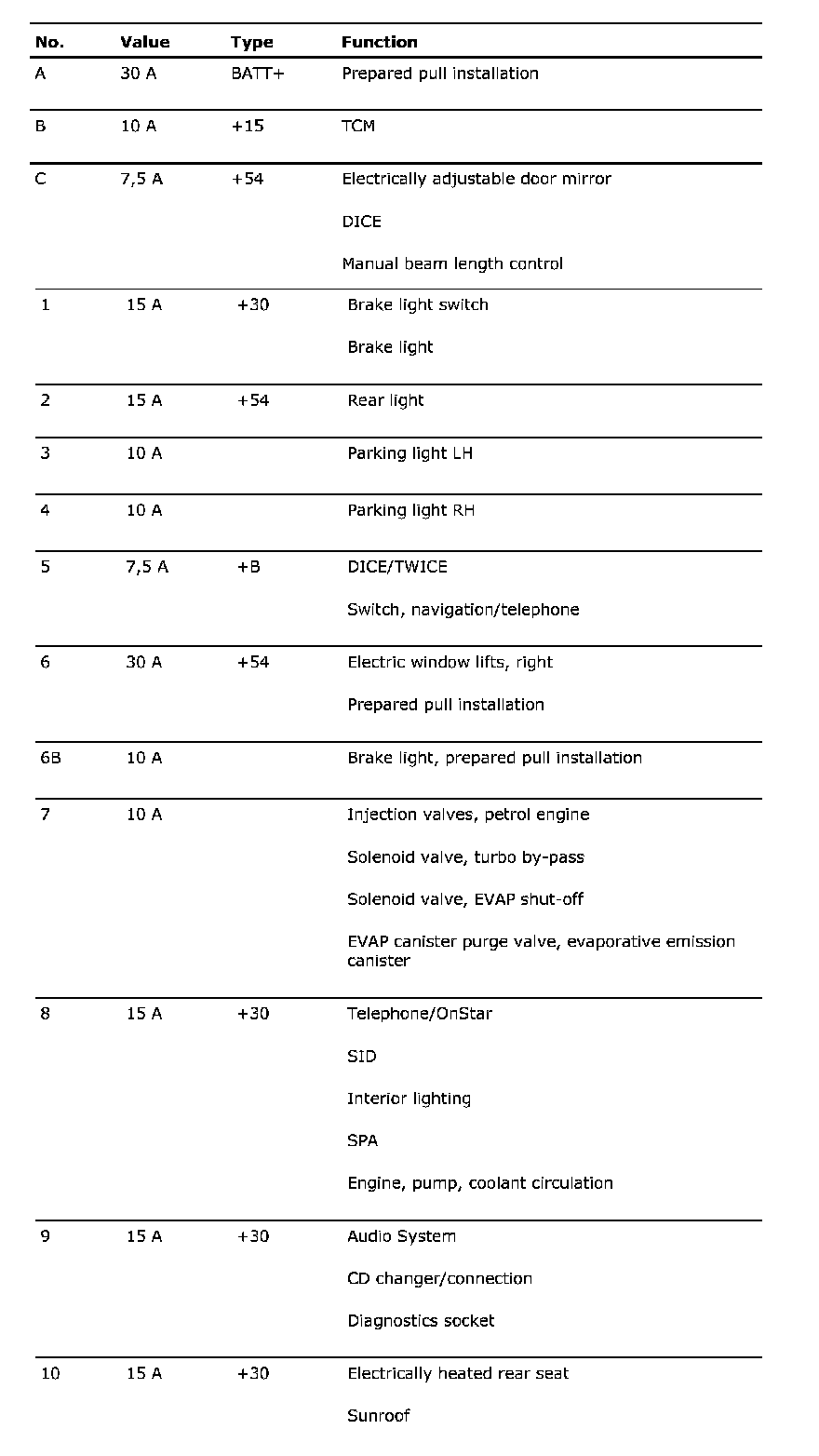

Main Fuse Board 22A In the Dashboard



Main Fuse Board 22a In The Dashboard

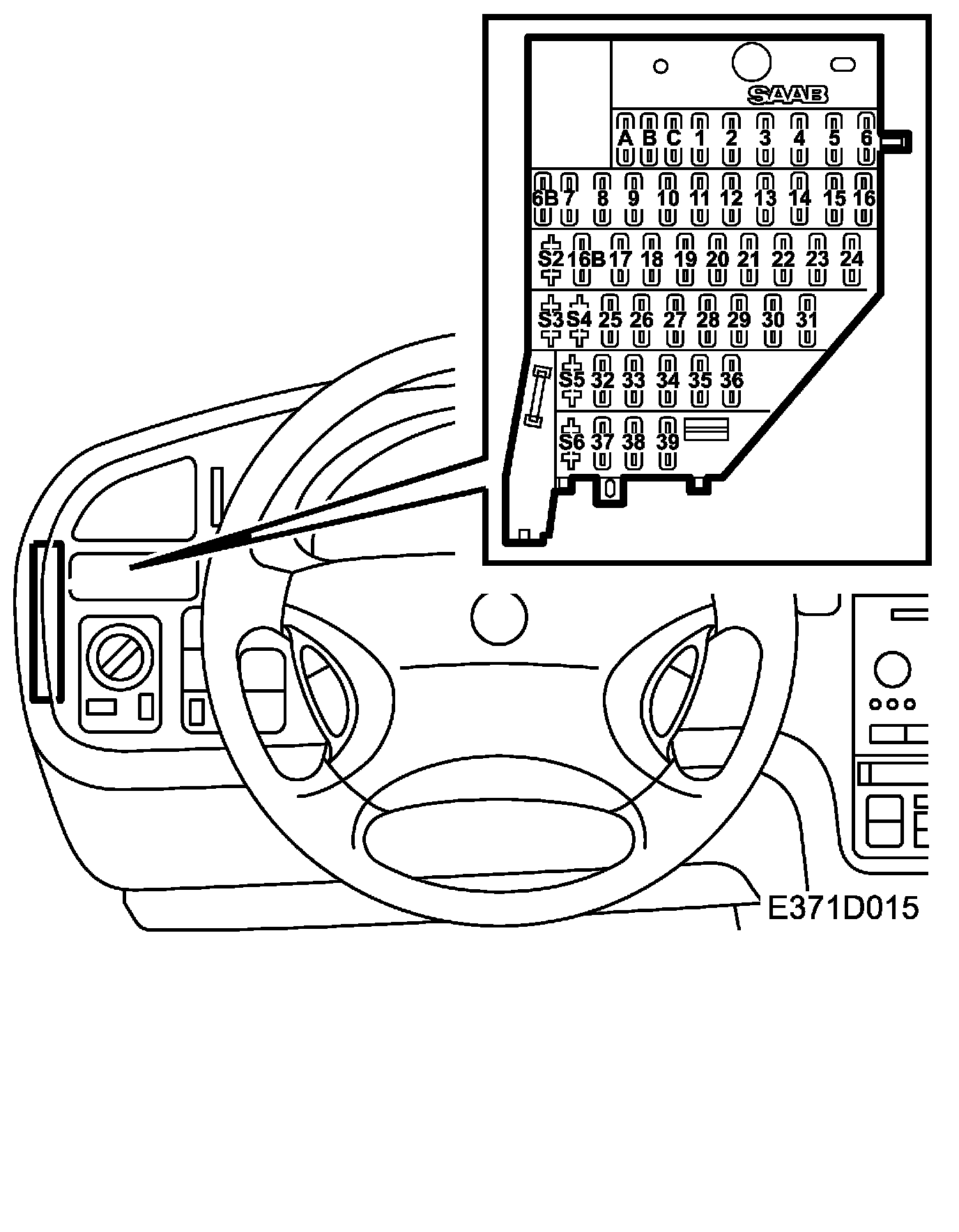

Location: On the short side of dashboard beside driver's door.

Upper socket is input current.

LHD







RHD
