Ignition Discharge Module (346R)

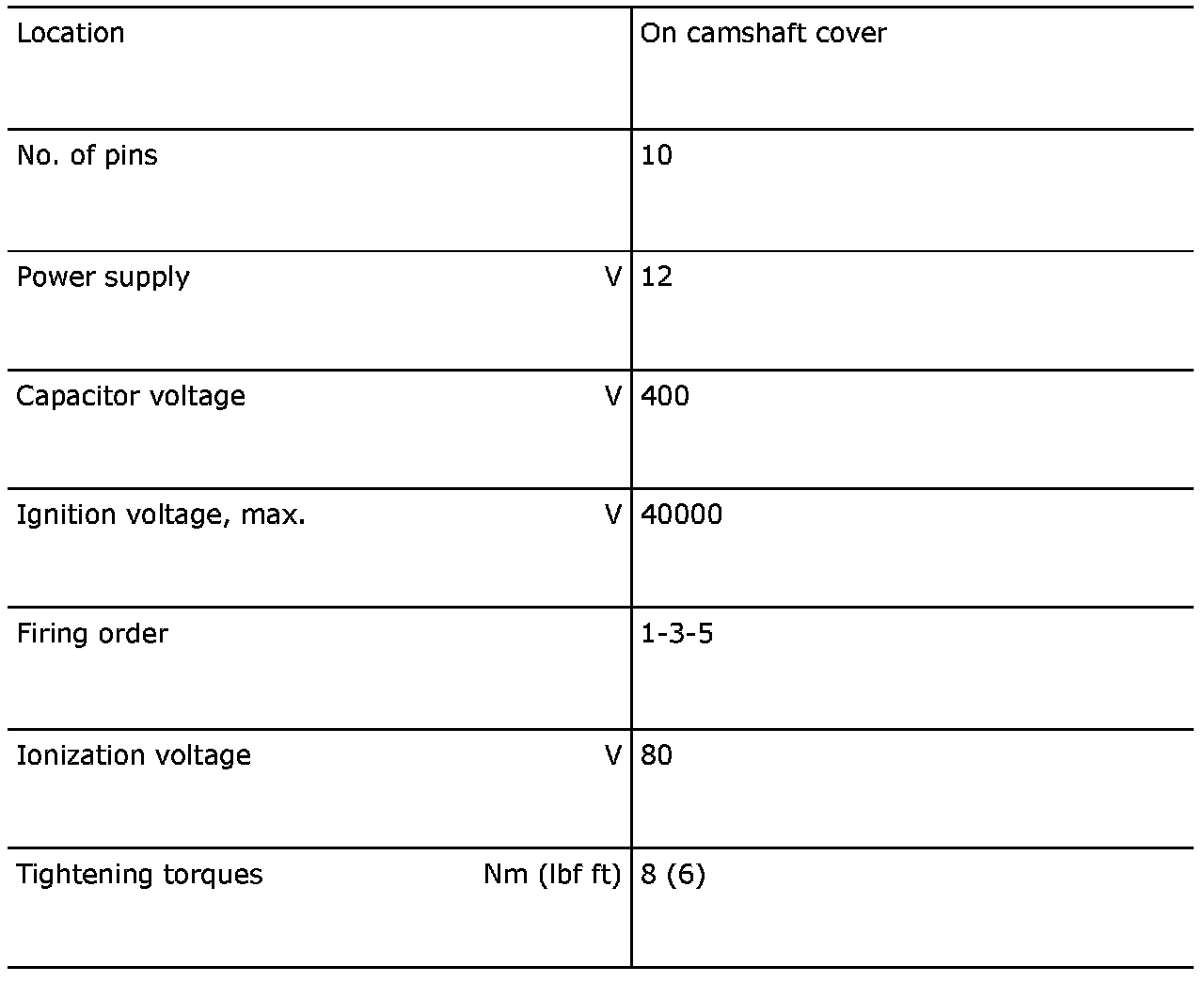

Ignition Discharge Module, Bank 1 (346R)

Ignition discharge module for cylinder banks 1 and 2 are identical.
