Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Ignition Control Module >> Ignition Discharge Module (346F)

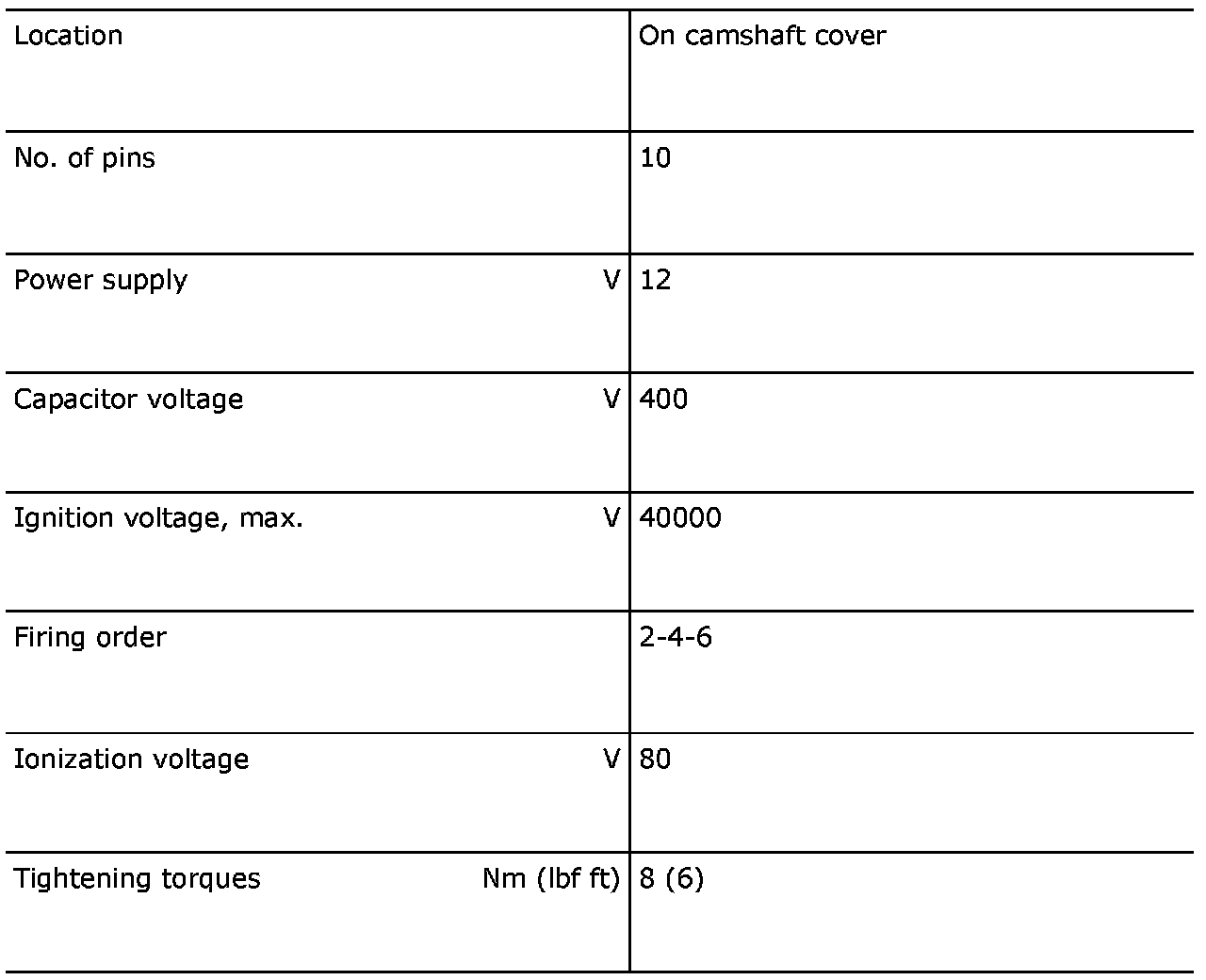

Ignition Discharge Module (346F)



Ignition Discharge Module, Bank 2 (346F)

Ignition discharge module for cylinder banks 1 and 2 are identical.
