Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

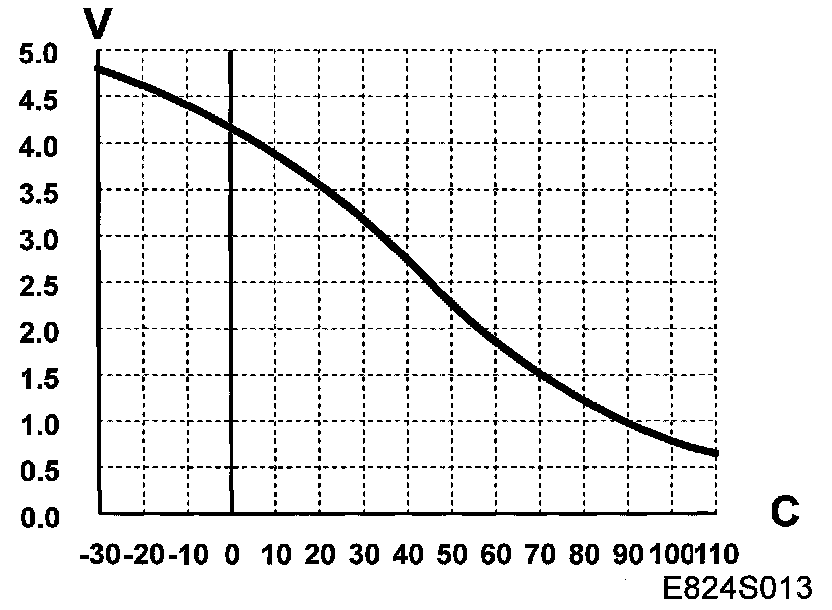

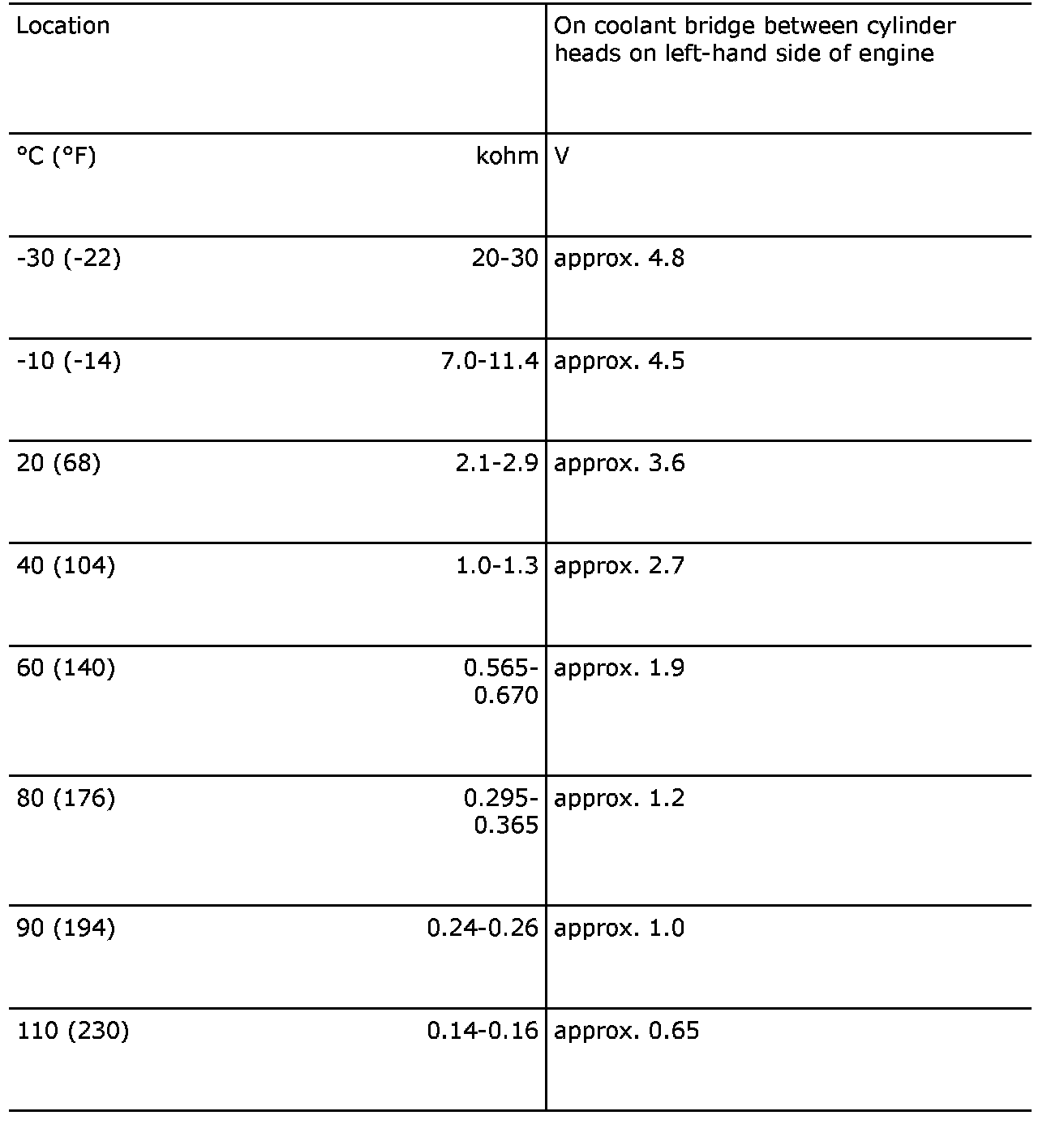

Temperature Sensor, Coolant (202)
Power supply
5 V
through
1.0 kohm
resistor in control module.
