Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations >> Component Locations

Component Locations

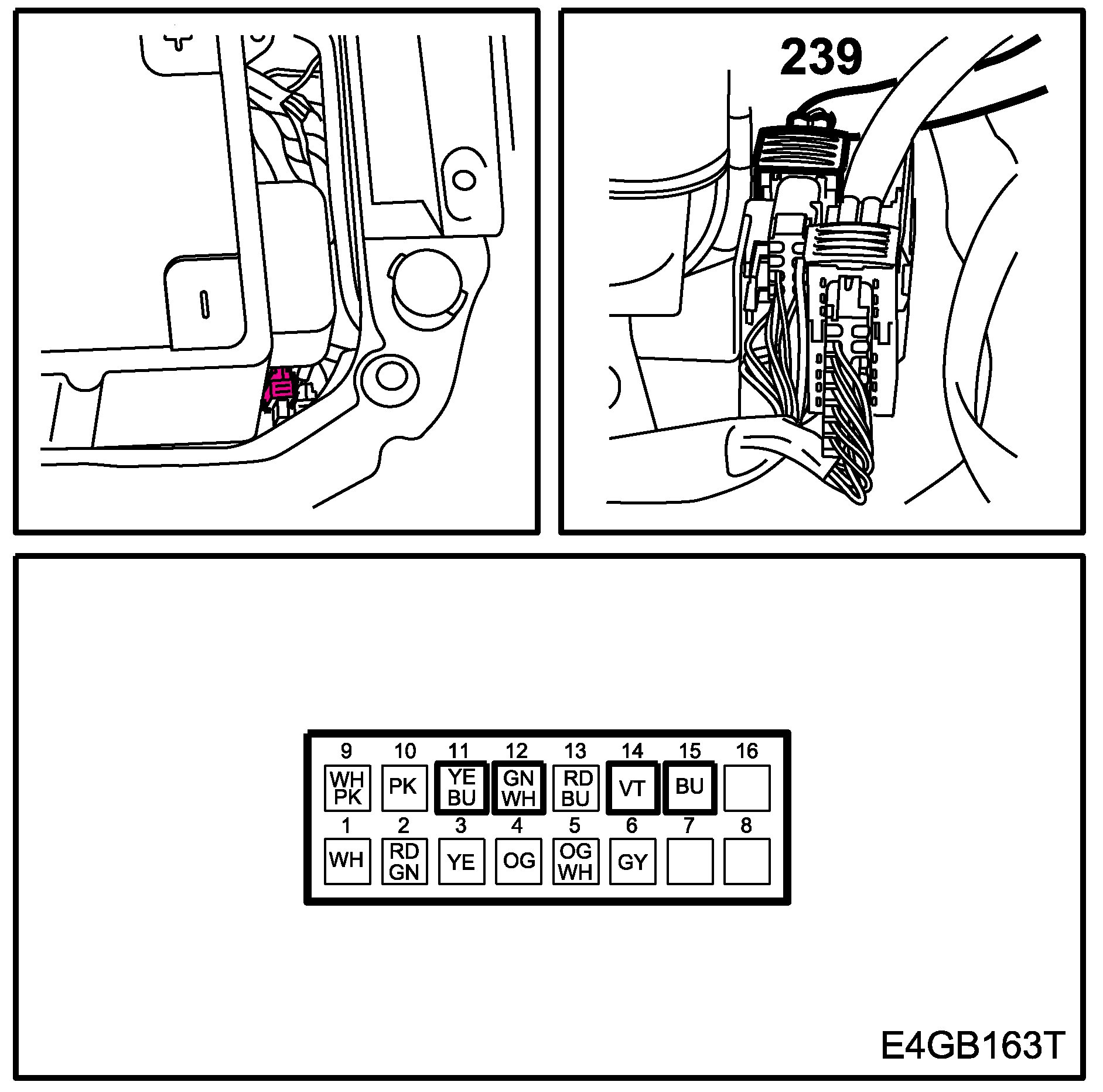

Transmission Range Switch 2, Automatic With 31 and 77 (239):
