Procedures

Solar Sensor

To remove

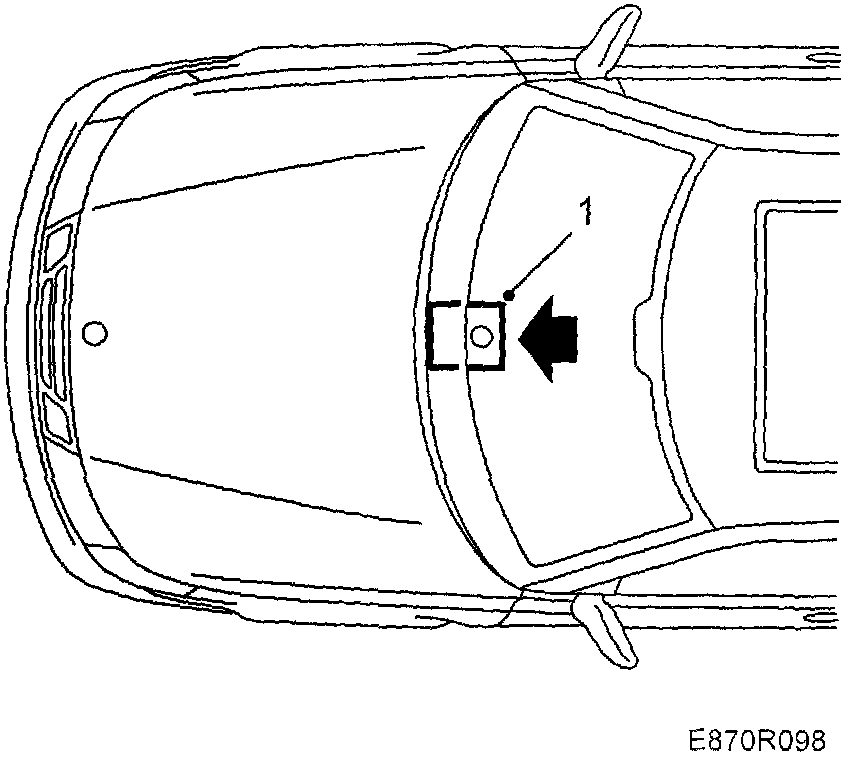

1. Remove the cover and solar sensor by sliding it forward.

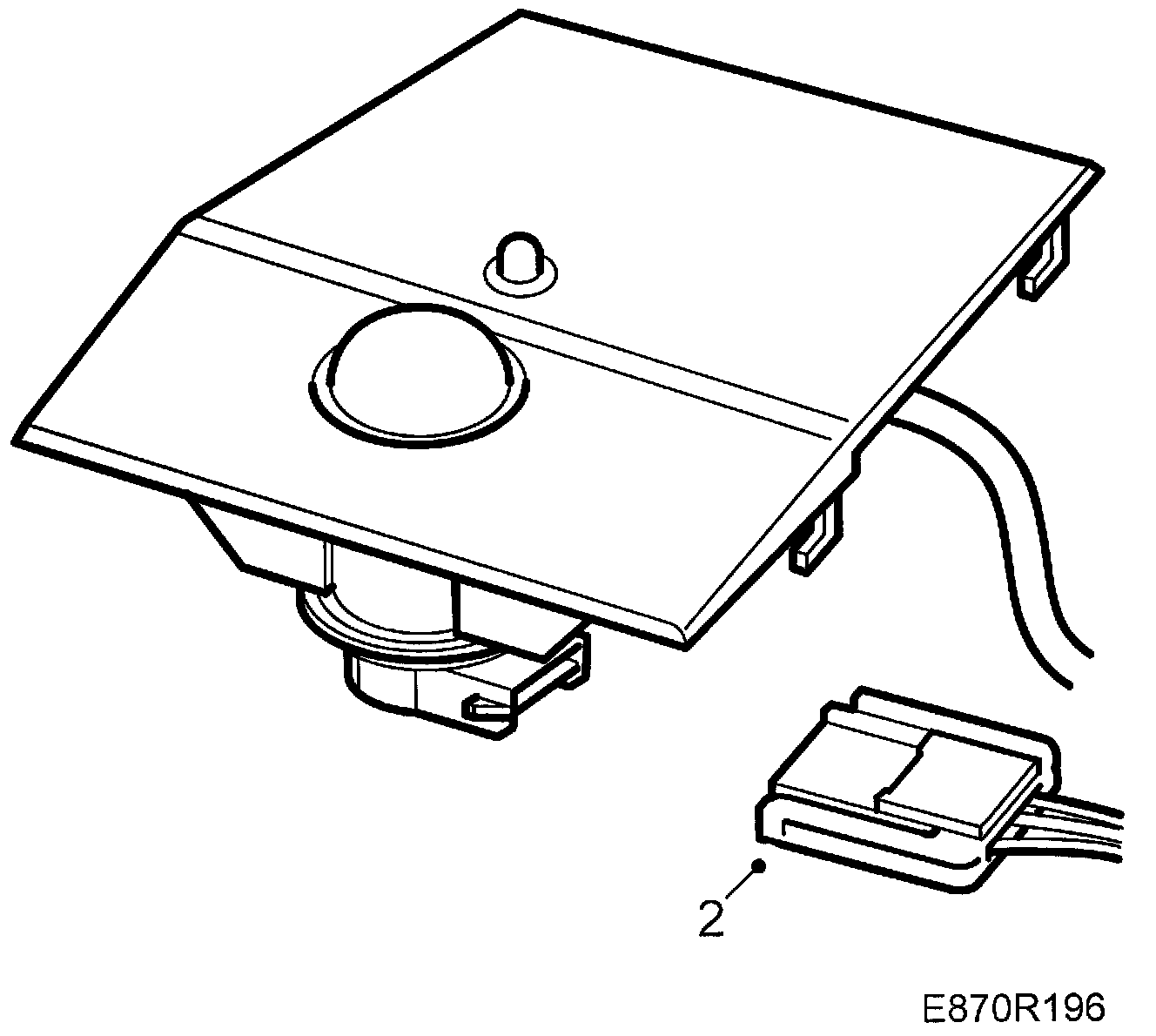

2. Unplug the sensor connector
3. Remove the sensor from the cover by depressing it and turning.

To fit
Fit in reverse order.


NOTE: The connector should always be positioned to the right (also for RHD).
