Procedures

Pressure Sensor

To remove

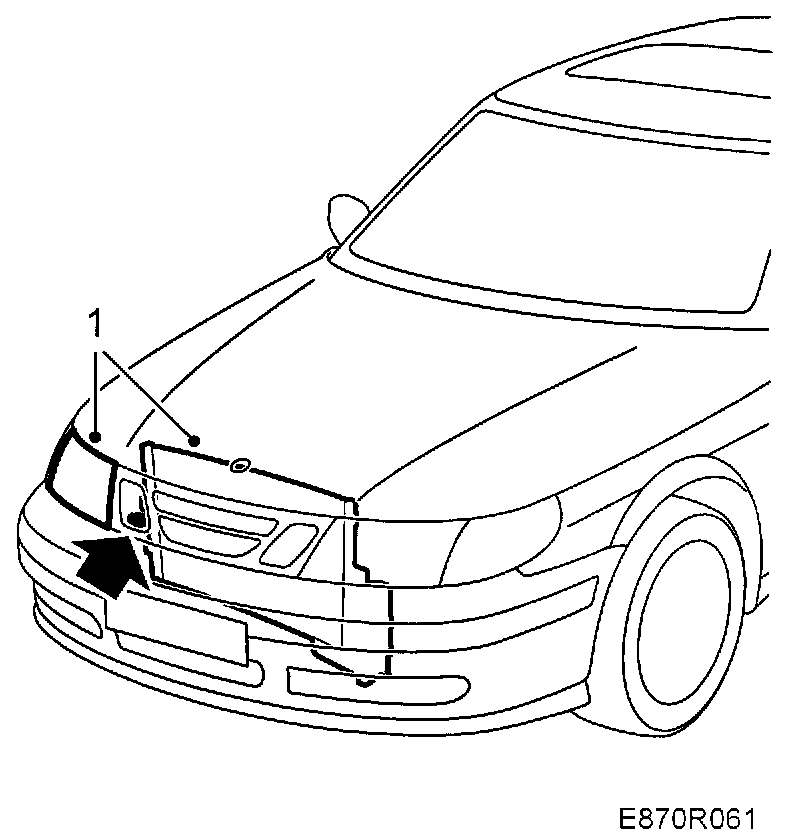

1. Remove the grille, right headlamp and direction indicator.

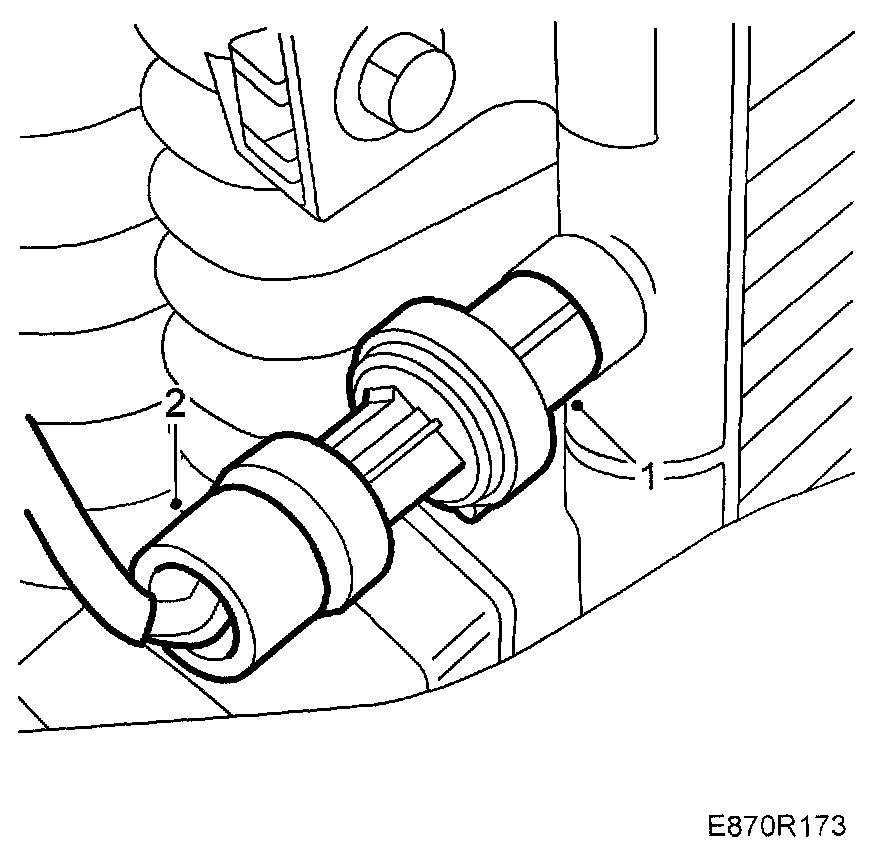

2. Unplug the connector from the pressure sensor.
3. Remove the pressure sensor.

To fit

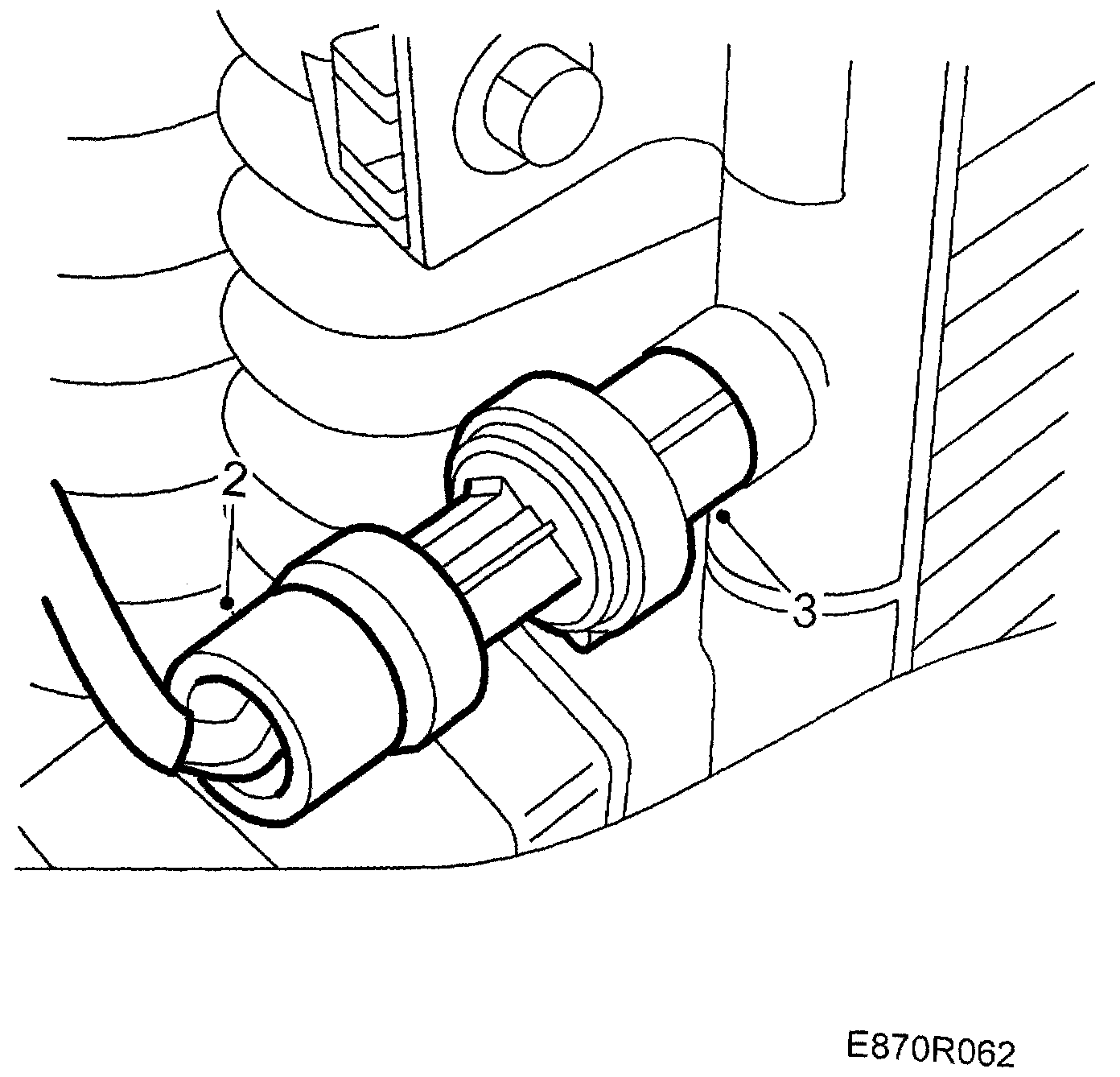

1. Fit the pressure sensor to the condenser.

Tightening torque: 7-9 Nm (5.2-6.7 lbf ft)

2. Plug in the connector to the pressure sensor.

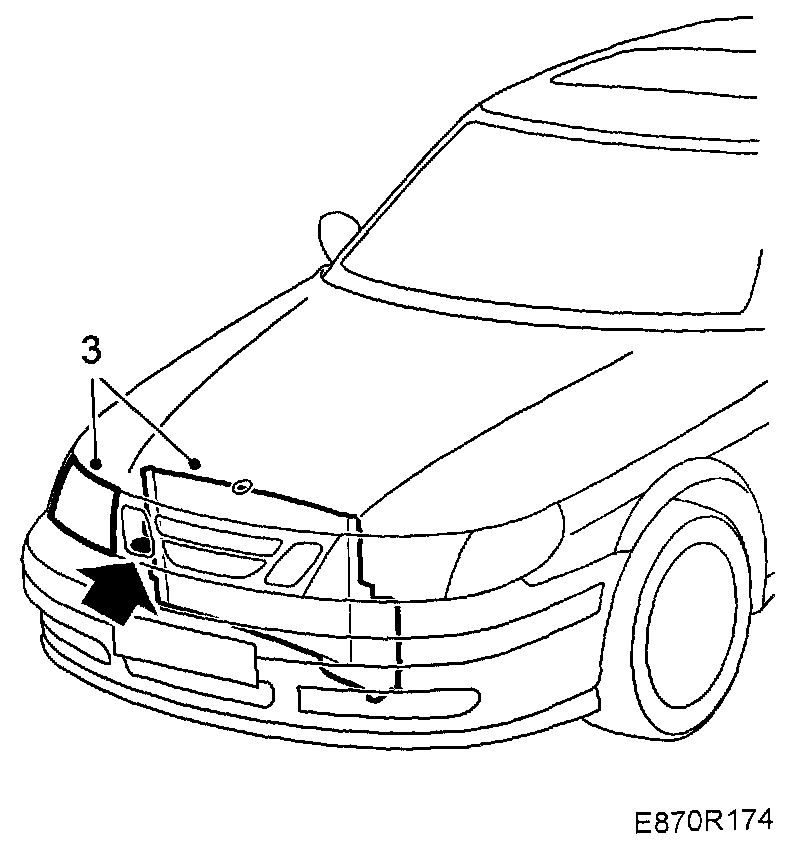

3. Fit the right headlamp, direction indicator and grille.
