Mixed-Air Temperature Sensor, RH, ACC

Mixed-air temperature sensor, RH

To Remove

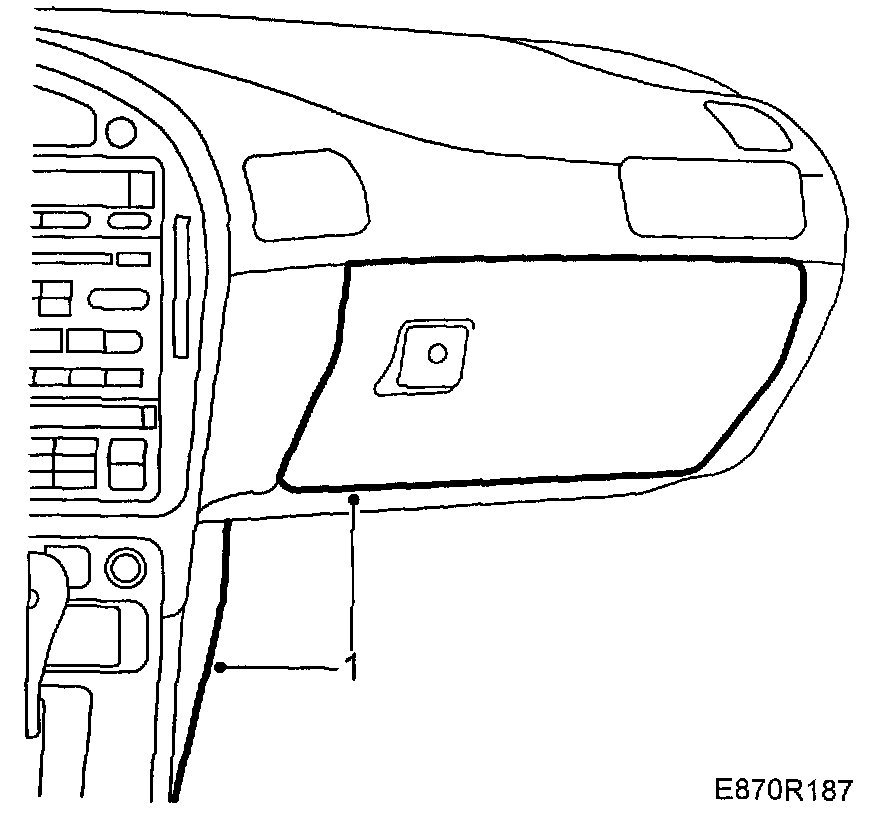

1. Remove the glove compartment.
Remove the trim from the side of the centre console.







2. Pull out the sensor from the air duct running to the lower panel.

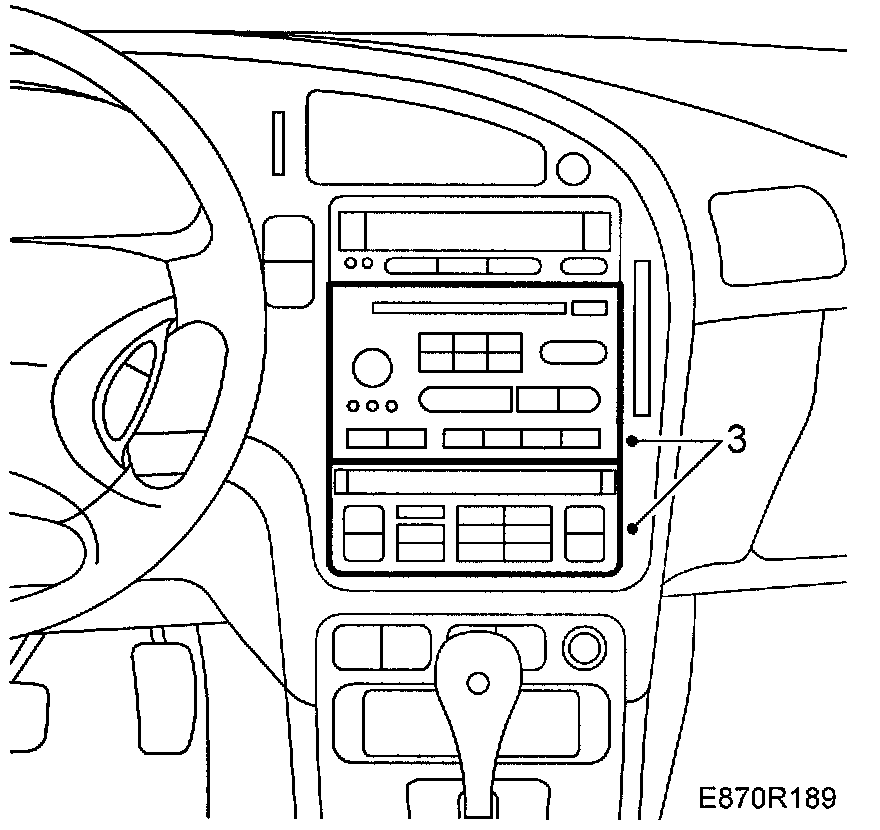

3. Remove the radio unit and control panel for ACC.

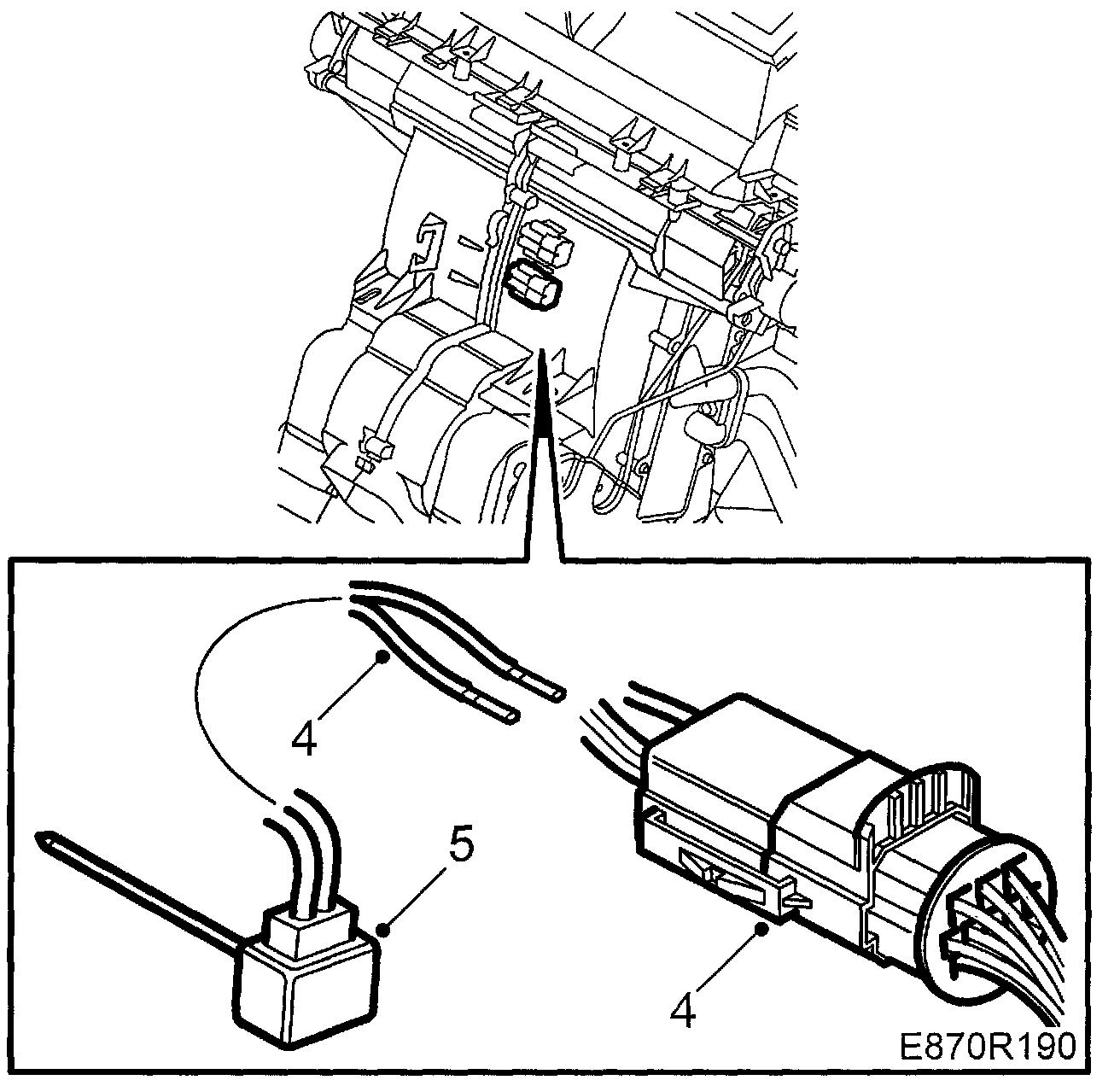

4. Unplug the lower connector (grey) from the climate housing.
Withdraw the pins in question from the connector.
5. Pull out the sensor.


NOTE: The leads in question are taped on to a wiring harness. Removal can be facilitated by cutting off the leads in question at a suitable place and by using new leads when refitting.


To Fit
Fit in reverse order.


NOTE: New leads must be routed when refitting. Fasten the new leads to the original wiring harness.
