Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Discharge Air Temperature Sensor / Switch >> Diagrams >> Mixed-Air Temperature Sensor (217 LH/RH)

Mixed-Air Temperature Sensor (217 LH/RH)

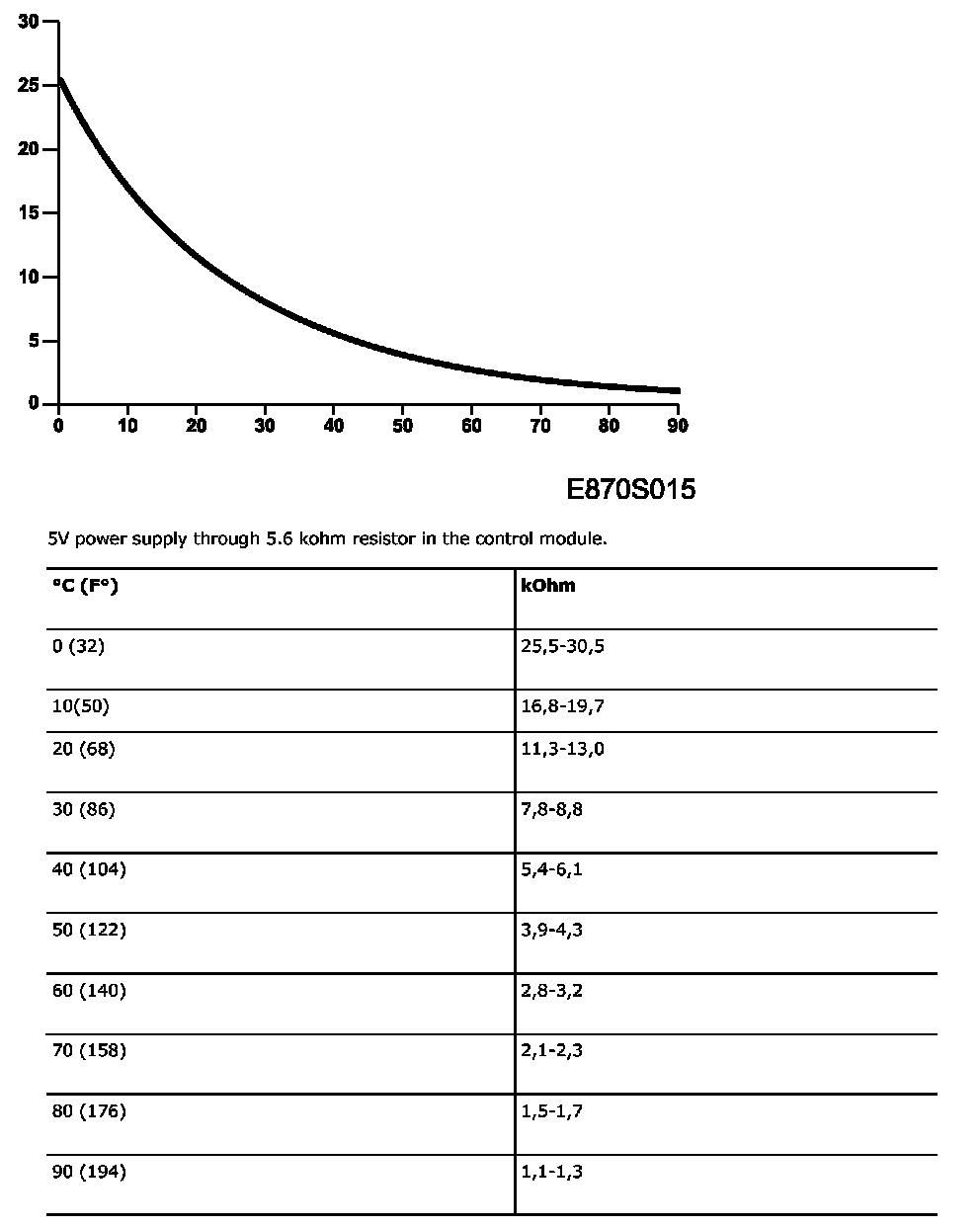

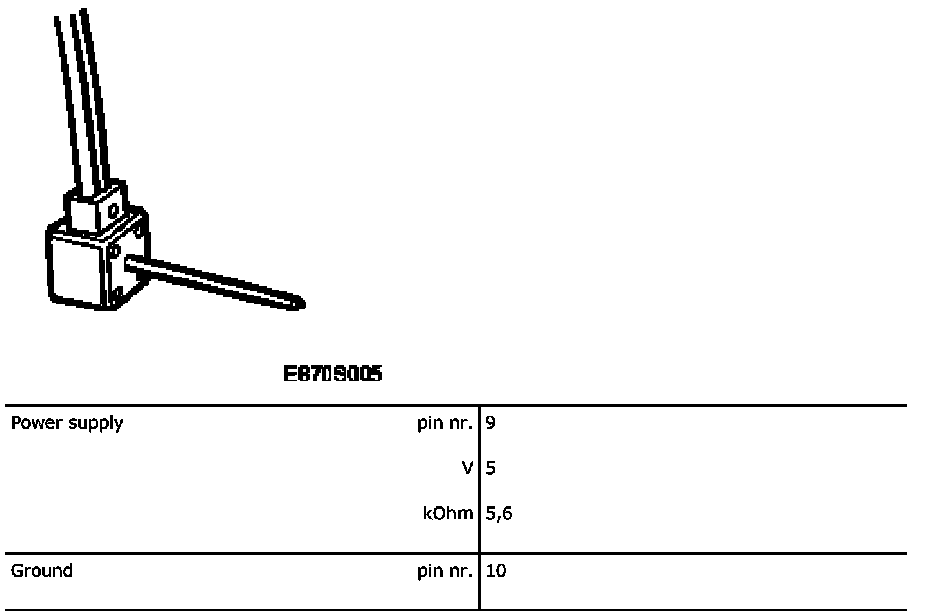

Mixed-air Temperature Sensor (217 LH/RH):
