Power Seat Motor Position Sensor: Service and Repair

Seat Position Sensor

To remove

1. Remove the seat.

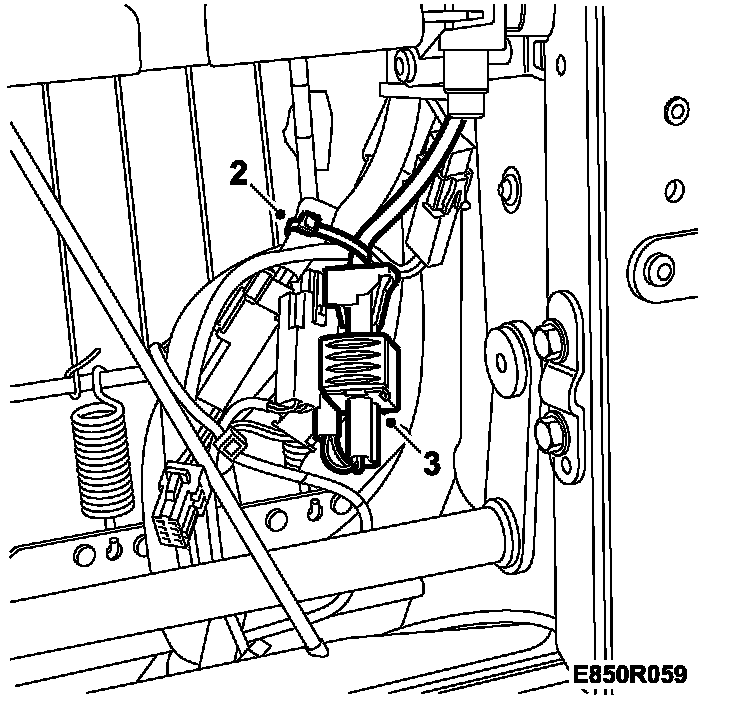

2. Cut off the cable tie holding the cable.







3. Unplug the connector.

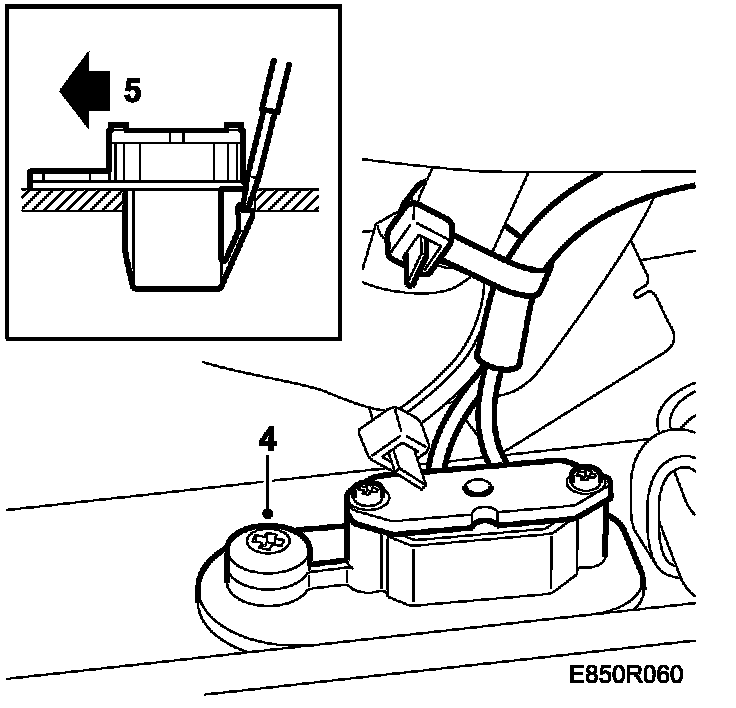

4. Remove the screw securing the seat position sensor.







5. Press forward the sensor using a screwdriver and remove the sensor.

To fit

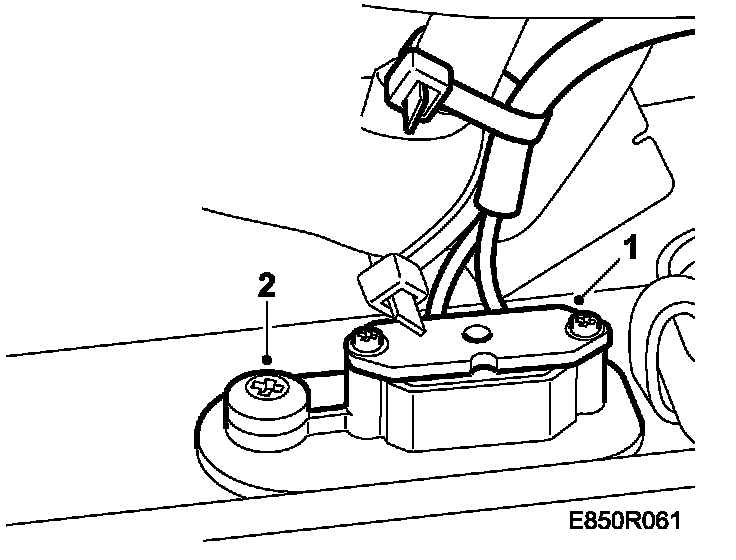

1. Fit the seat position sensor.







2. Fit the screw.

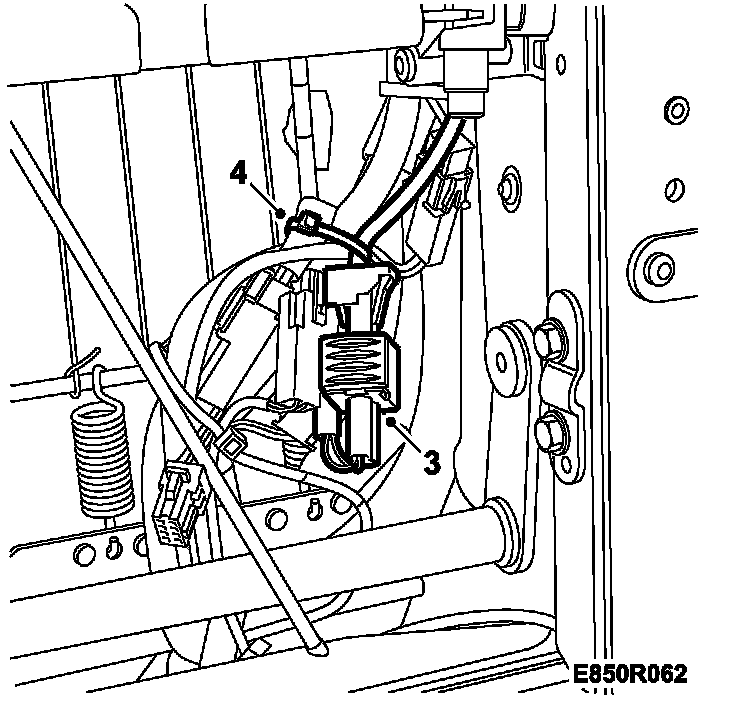

3. Plug in the connector.







4. Fit the cable tie.
5. Fit the seat.
