Main Componenets

System Overview:

Seat-belt system
- Seat belts with belt tensioners
- Rear seat belts
- Seat-belt warning


Brief description

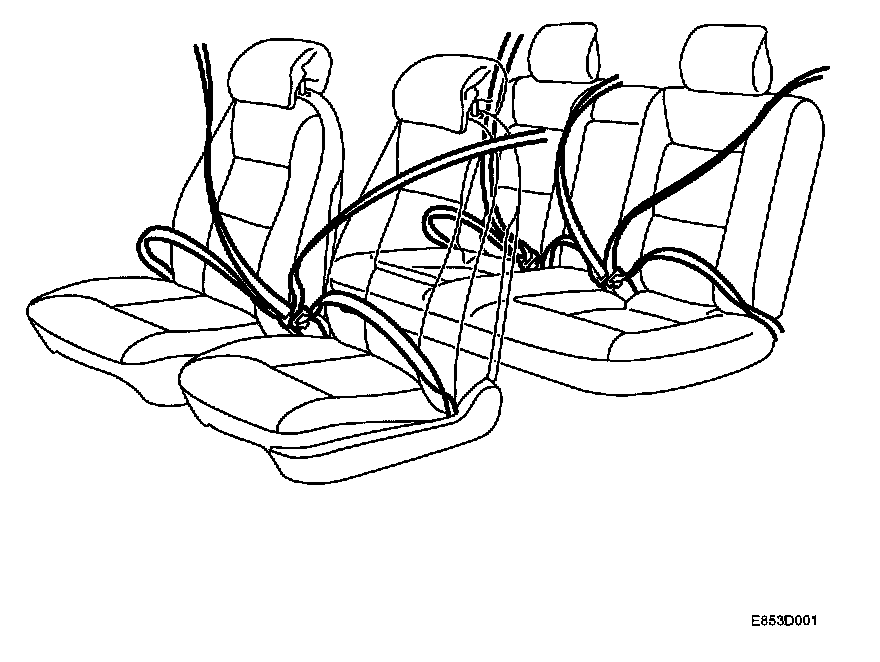

The seat-belt system comprises two safety belts in the front and three in the back. All the belts are of three-point type.

A supplement to the seat-belt system is the Airbag (SRS) system. The system comprises airbags and belt tensioners for the front seat belts. The belt tensioner tensions the seat belt strap in the event of a collision, reducing the forward motion of the body.

As the belt tensioners are a part of the SRS system, they are described in more detail in Airbag (SRS) section.
