Air Bag Control Module: Specifications

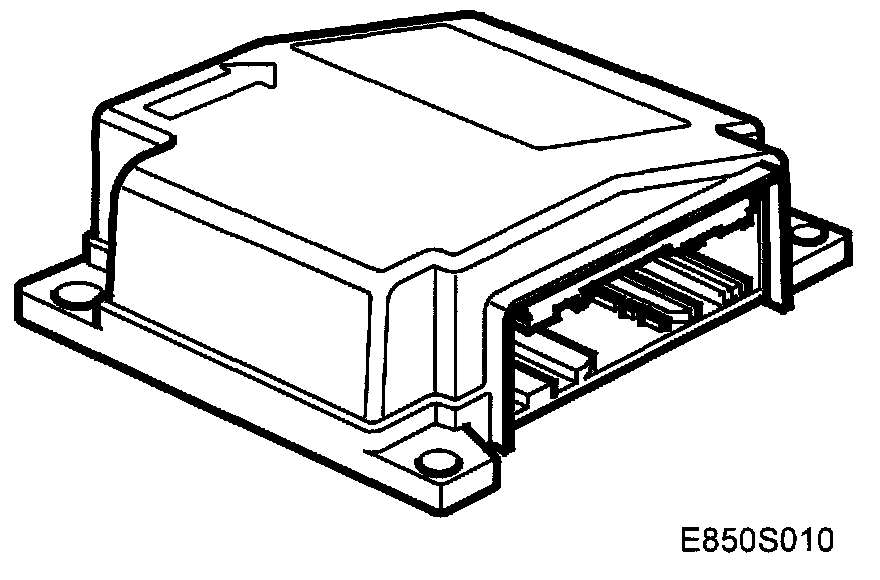

SRS Control Module

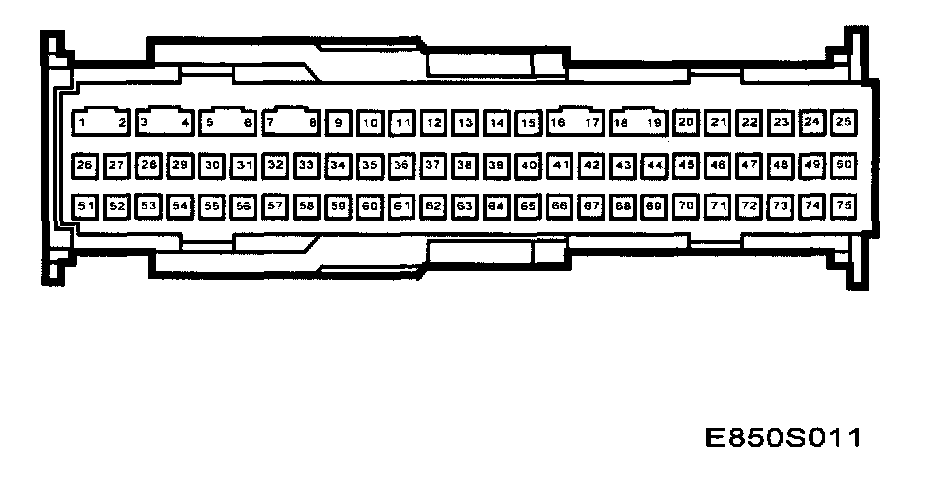

Control module connections

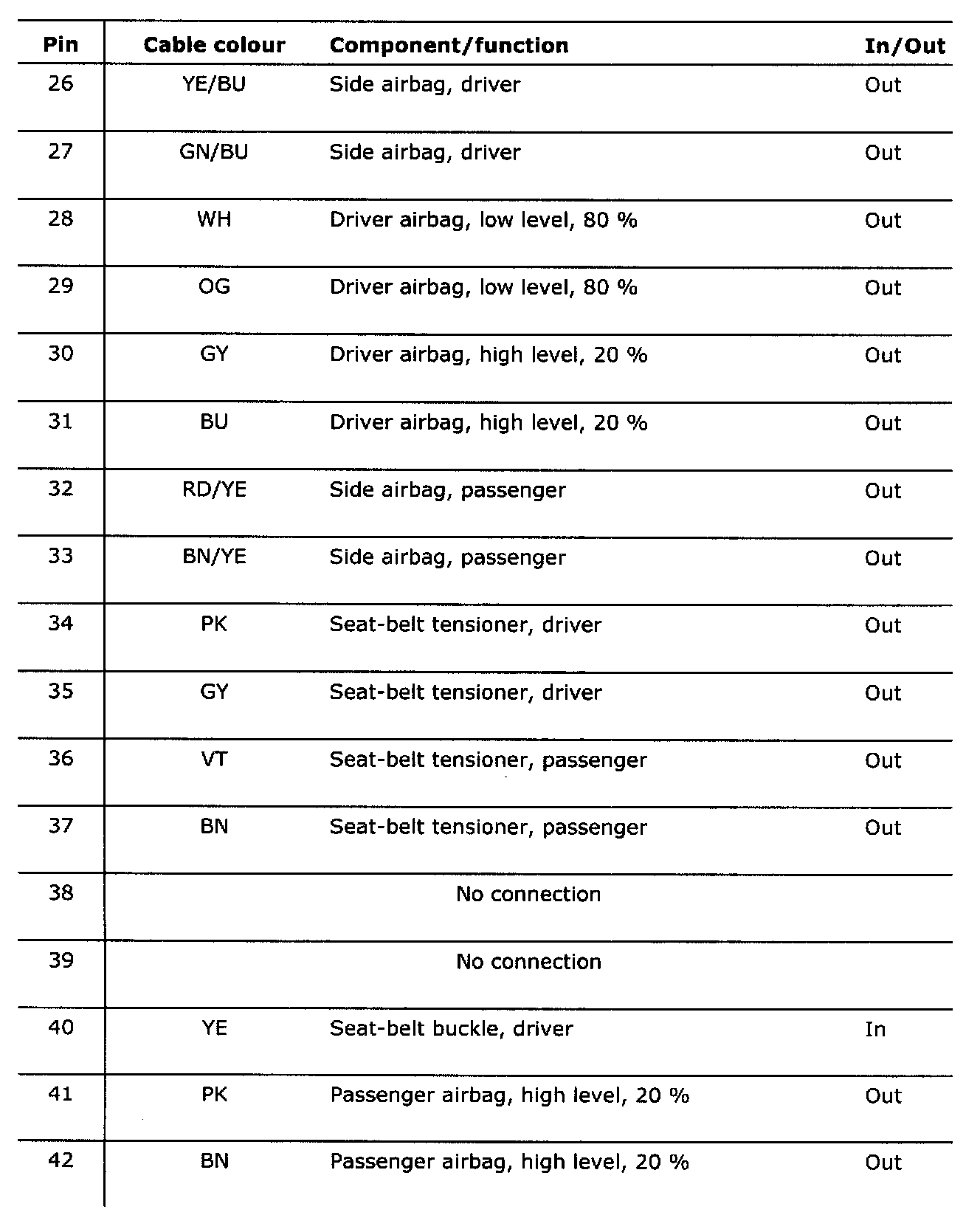

Pin 26 - 42:

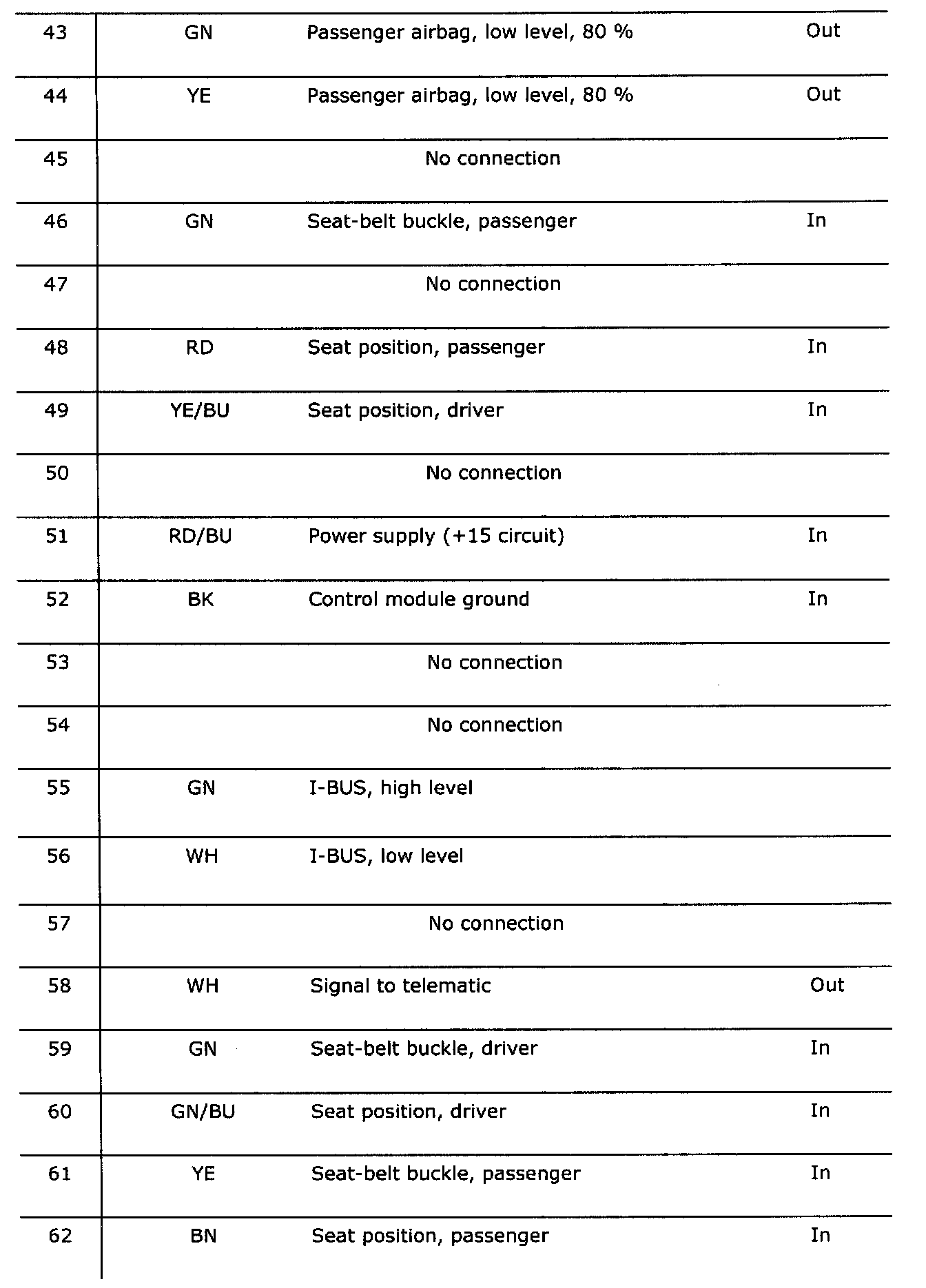

Pin 43 - 62:

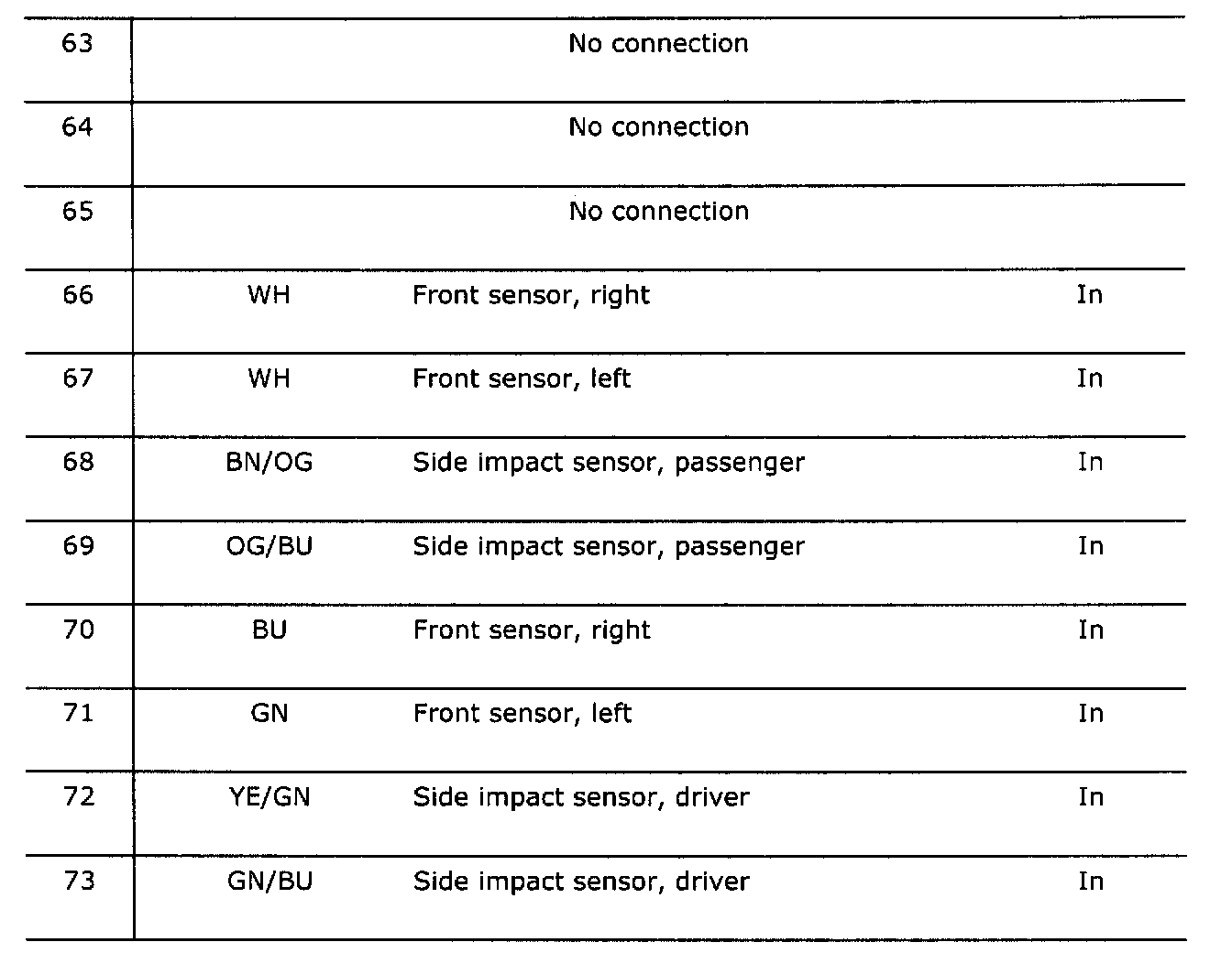

Pin 63 - 73:

Measurement values

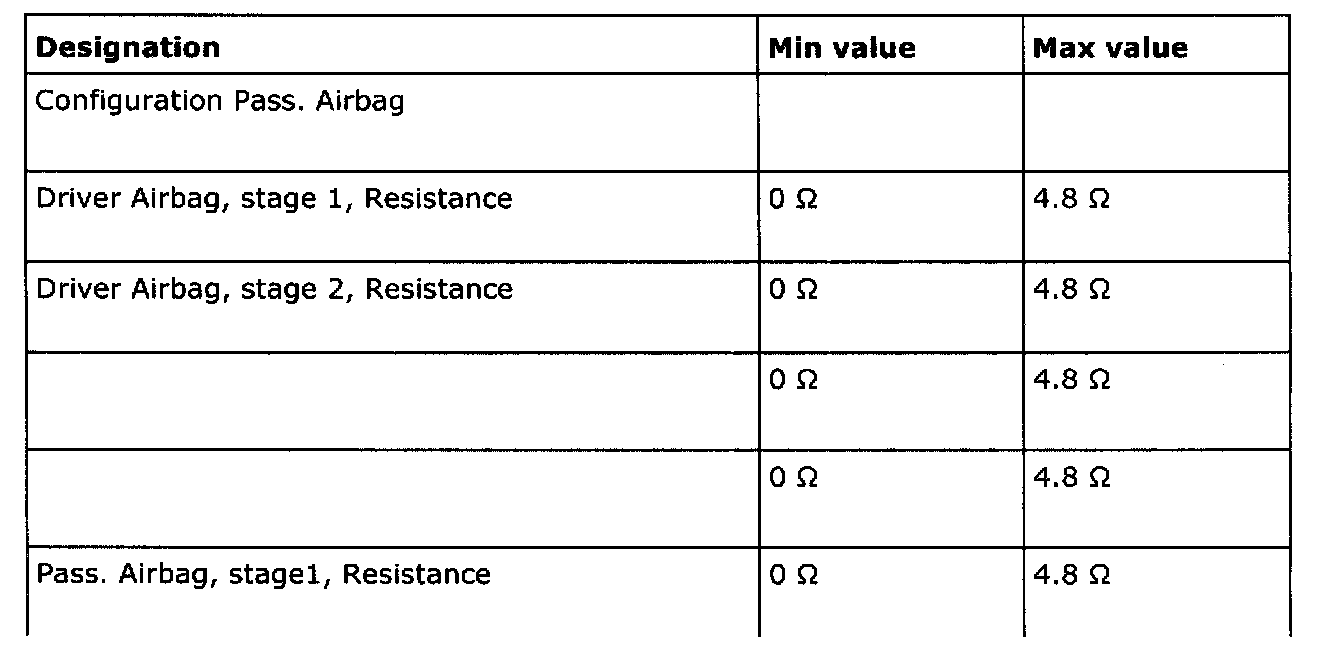

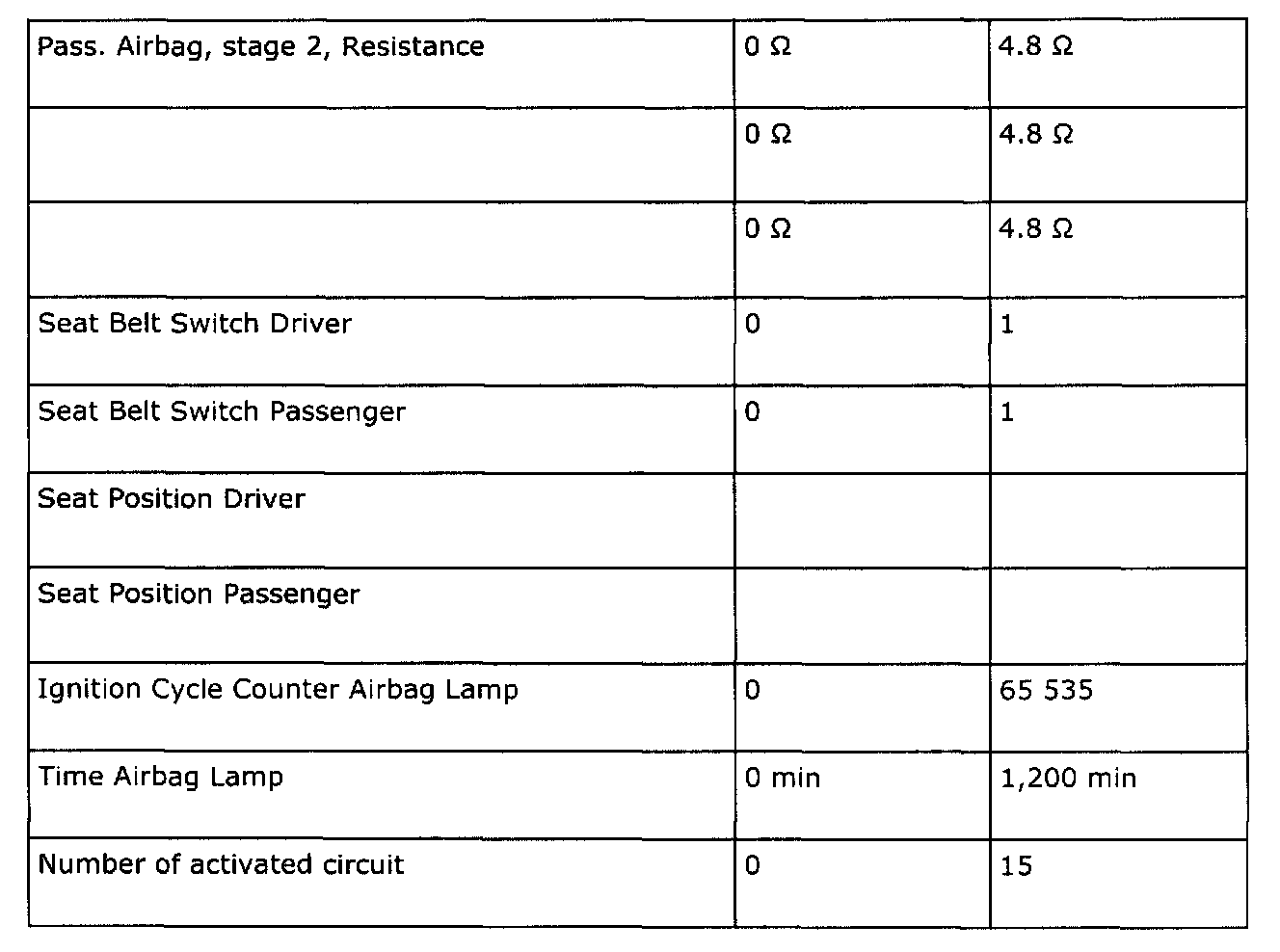

The following table indicates the values for measuring SRS levels. The diagnostic tool should be used for measurement.
