Control Module Inputs

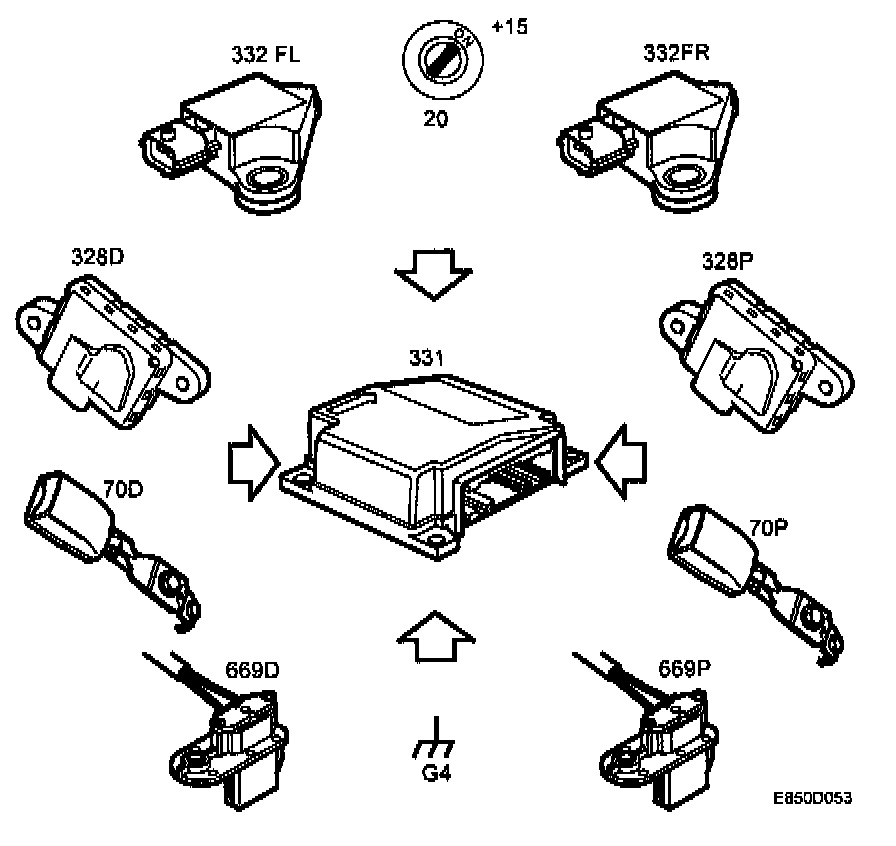

Control Module Inputs







- Power supply +15
- Grounding, G4
- Front impact sensor, left, 332FL
- Front impact sensor, right, 332FR
- Side impact sensor, driver, 328D
- Side impact sensor, passenger, 328P
- Belt buckle sensor , driver, 70D
- Belt buckle sensor, passenger, 70P
- Seat position sensor, driver, 669D
- Seat position sensor, passenger, 669P
