Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Wiper and Washer Systems >> Headlamp Washer Motor Relay >> Diagrams

Headlamp Washer Motor Relay: Diagrams

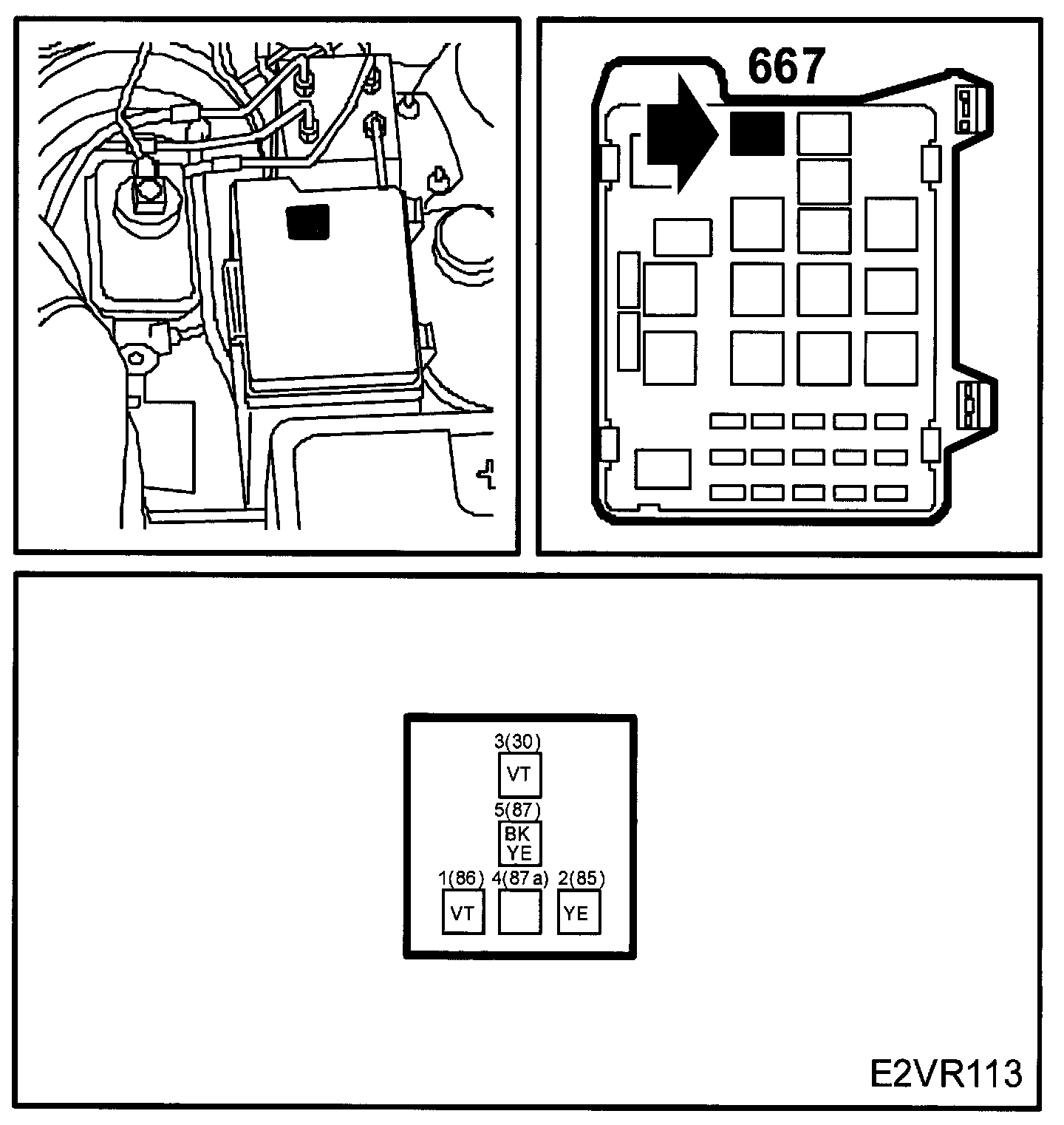

Relay, High Pressure Headlamp Washer Fluid Pump (667):
