Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Power and Ground

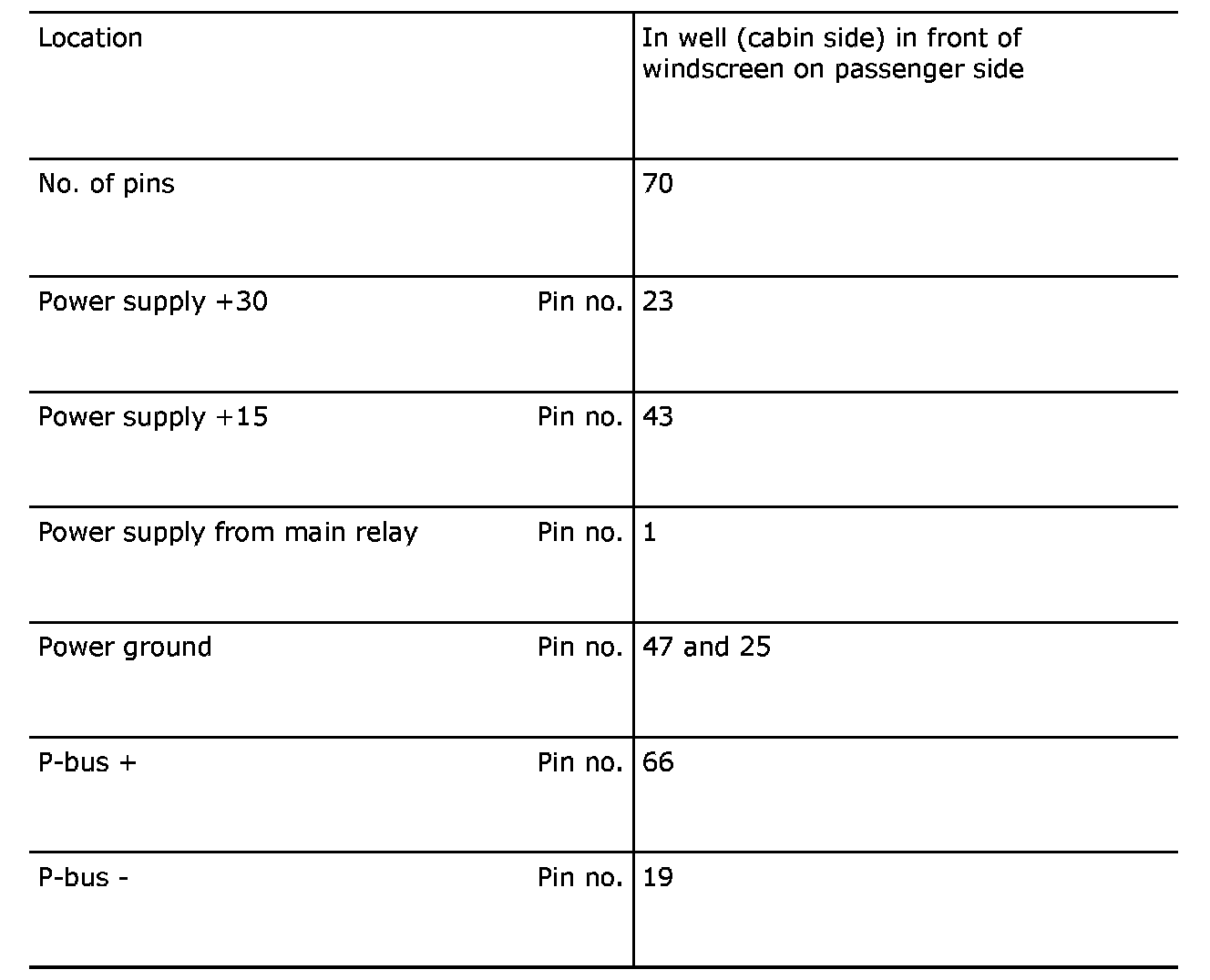

Power and Ground



Control Module, Trionic T7 (589)
