Accelerator Pedal: Service and Repair
Accelerator, V6To Remove

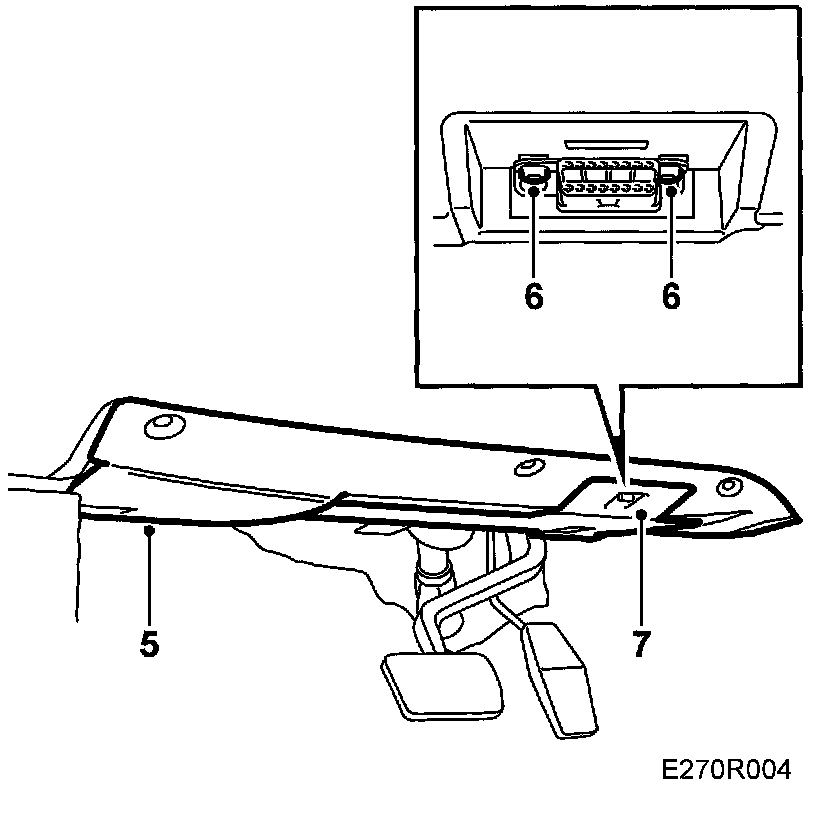

1. Open the data link connector cover.
2. Undo the screws in the data link connector.
3. Remove the screws and clip securing the lower panel with air duct.
4. Unplug the connector for the floor lighting.
5. Lift out the lower panel.

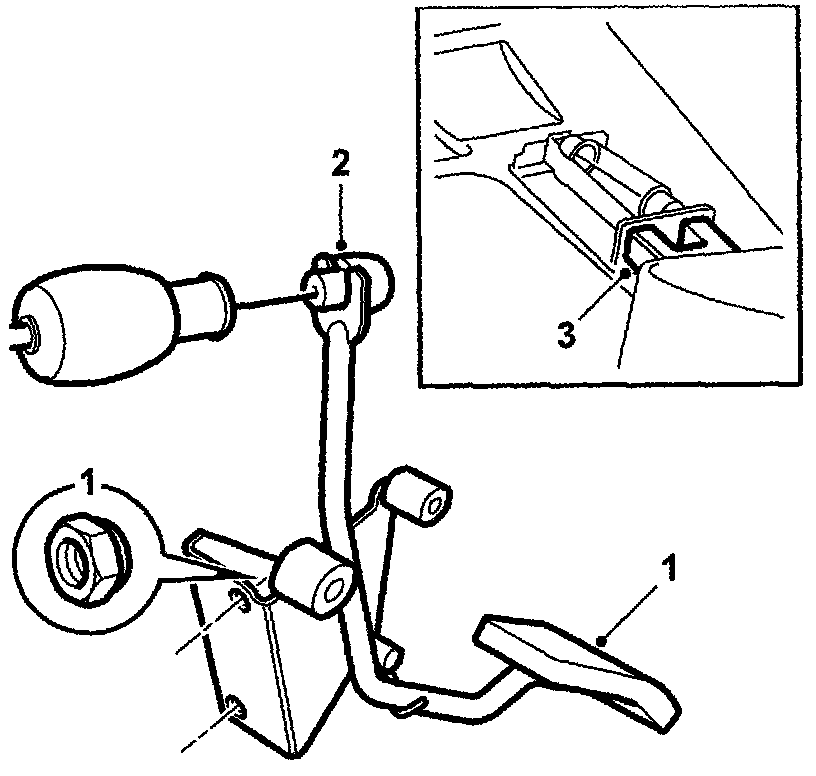

6. Disconnect the throttle cable from the throttle pedal by sliding back the bush and removing it and the cable.
7. Remove the pedal.
To Fit
Note:
Spray the connector with Kontakt 61, part no. 30 04 520, before plugging in.
The bush must not be lubricated.
1. Fit the pedal.
Tightening torque: 24 Nm (17.7 ft. lbs.).
2. Attach the throttle cable to the throttle pedal. Check and adjust the cable as necessary.
3. Plug in the connector for the floor lighting.
4. Lift the lower panel into place.
5. Tighten the lower panel's screws.
6. Fit the data link connector and tighten its retaining screws.
7. Close the data link connector cover.
