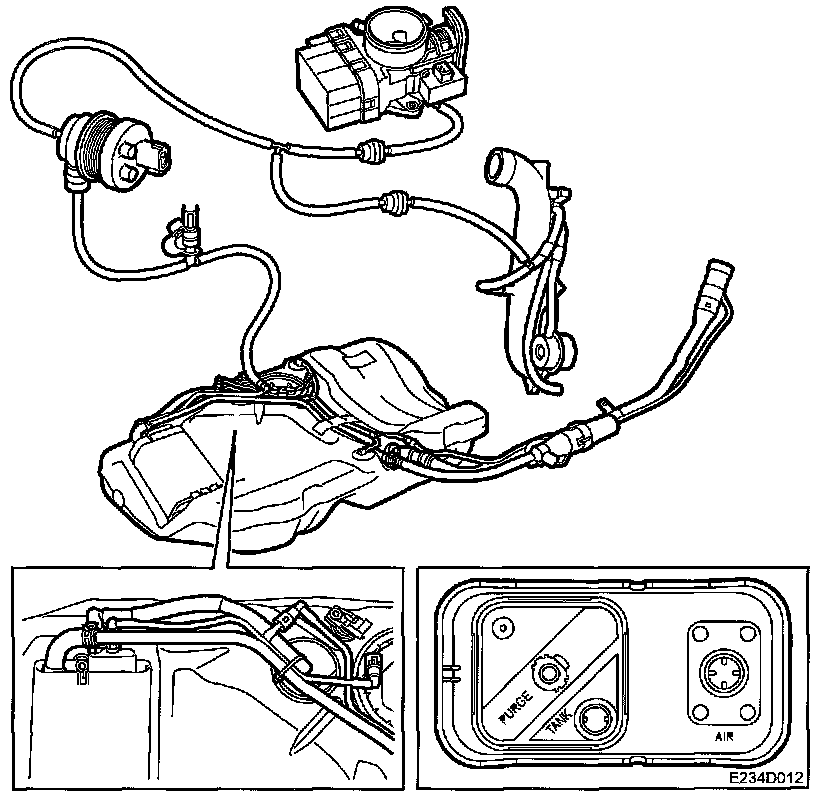

Main Components

Main Components

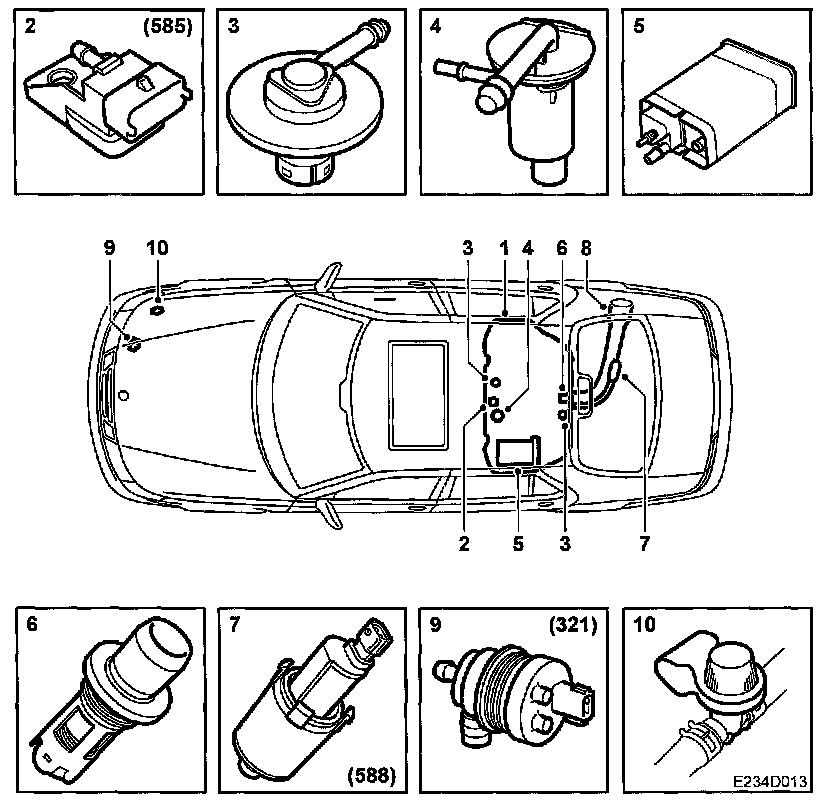

1. Fuel tank
2. EVAP pressure sensor (585) Fuel Tank Pressure Sensor
3. Roll-over shut-off valve
4. Float valve
5. Evaporative emission canister
6. Check valve, fuel tank
7. EVAP shut-off control valve (588) EVAP Shut-Off Control Valve (588)
8. Fuel filler pipe
9. EVAP canister purge valve (321) Description and Operation
10. Service port
