Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Mode 6 Data

Mode 6 Data



Trionic 7, Mode 06

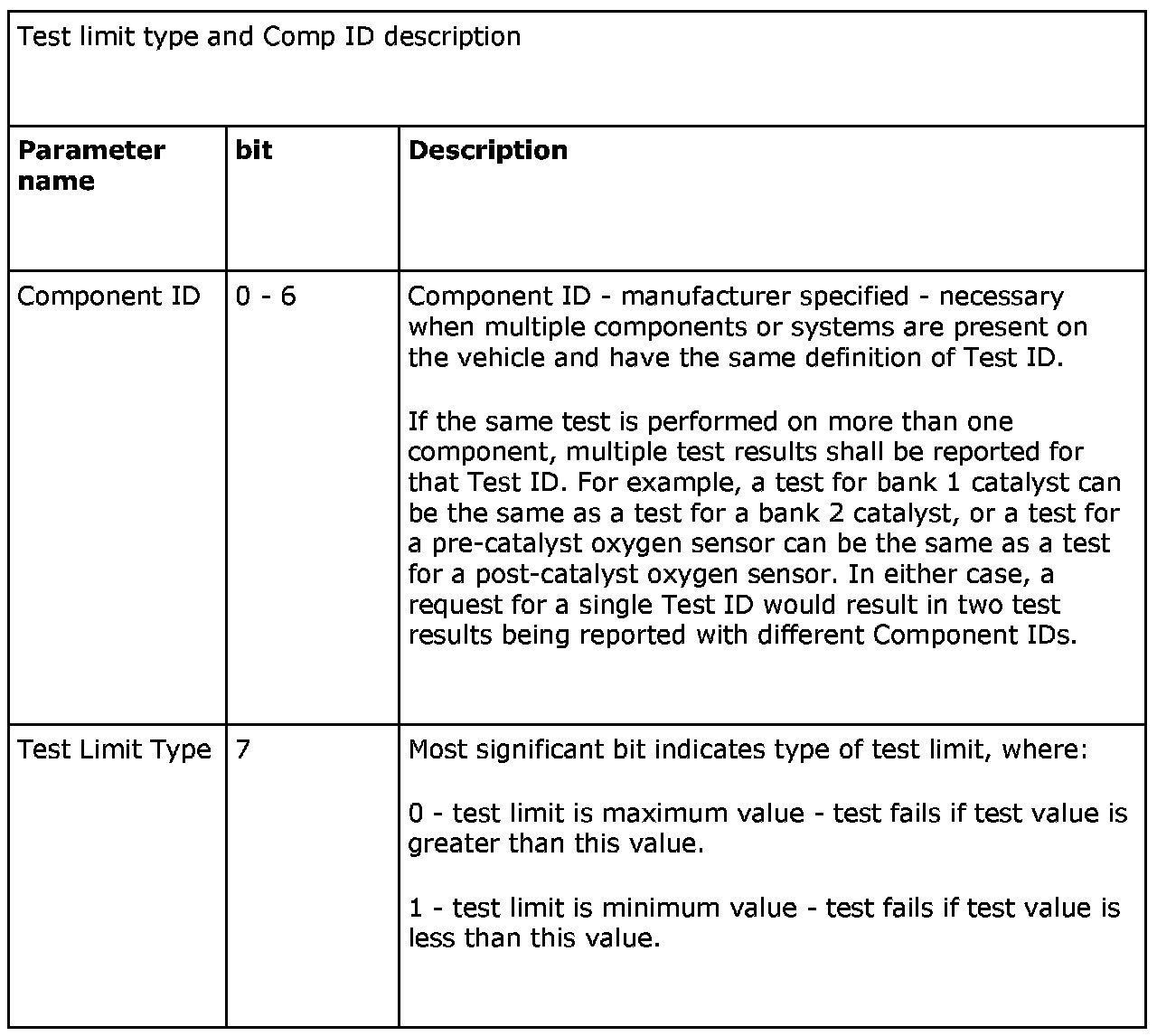

Part 1:

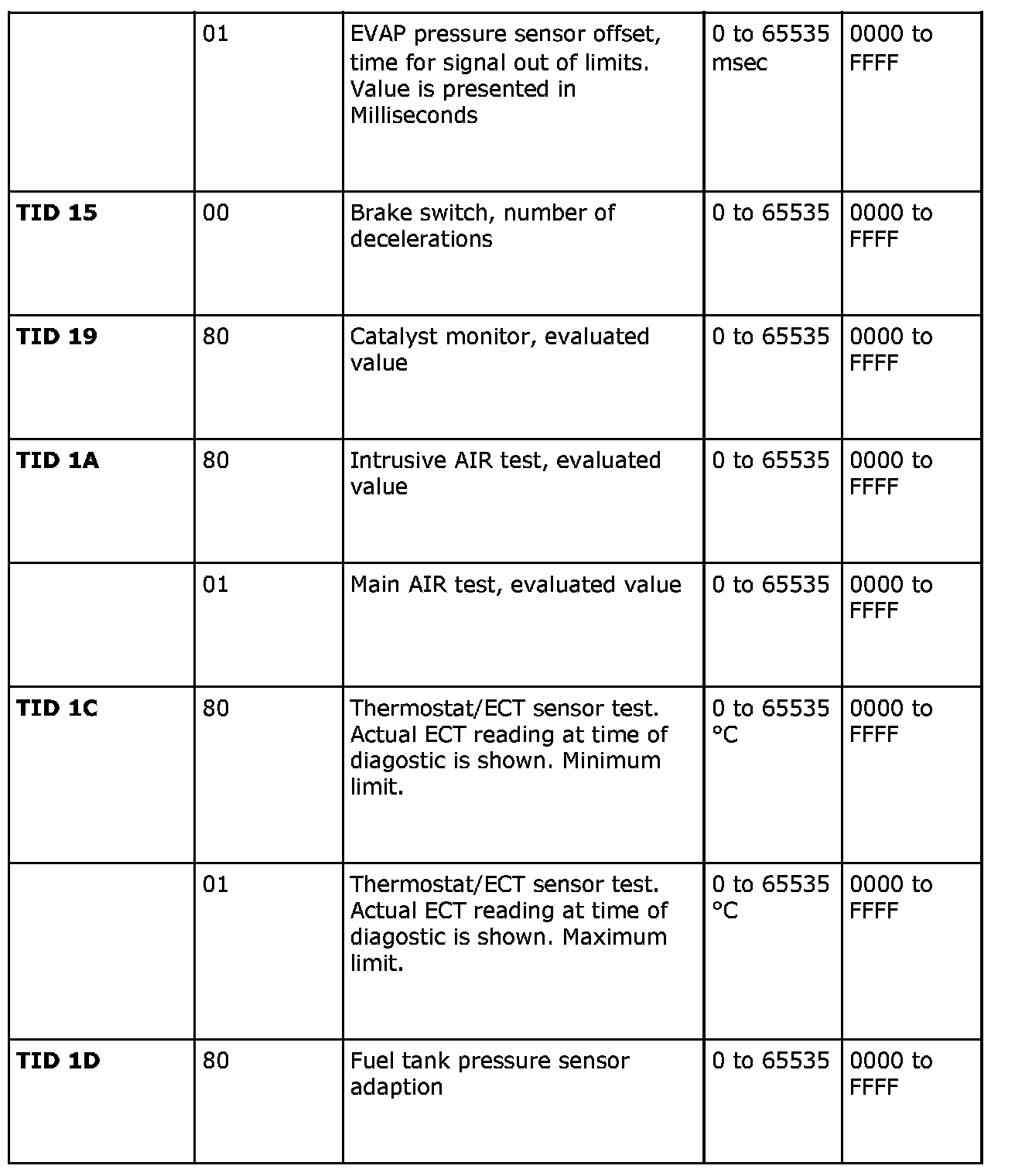

Part 2:

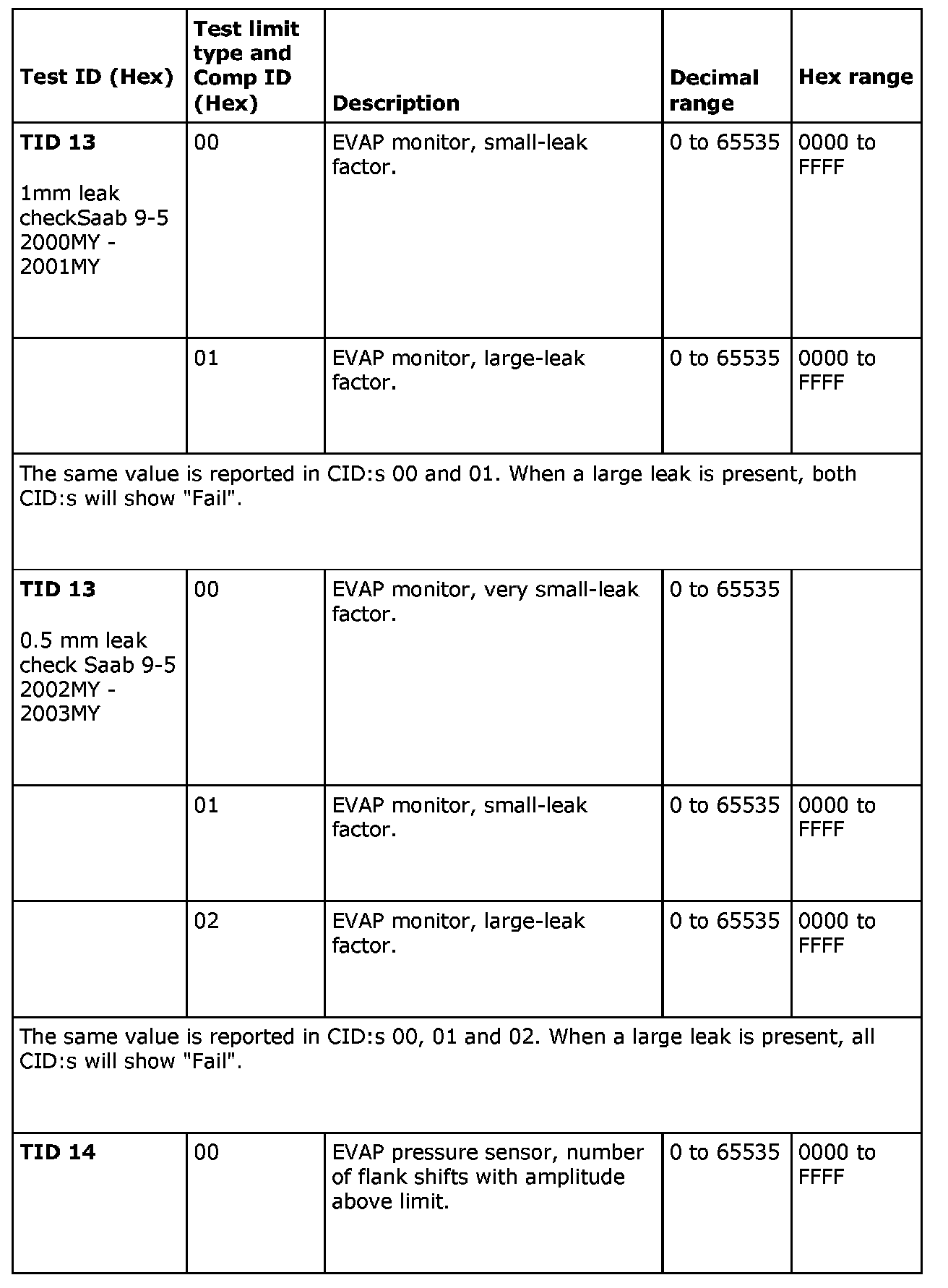

Part 3:
