DICE
>>
Grounding Point G40
Grounding Point G40
Grounding Point G40

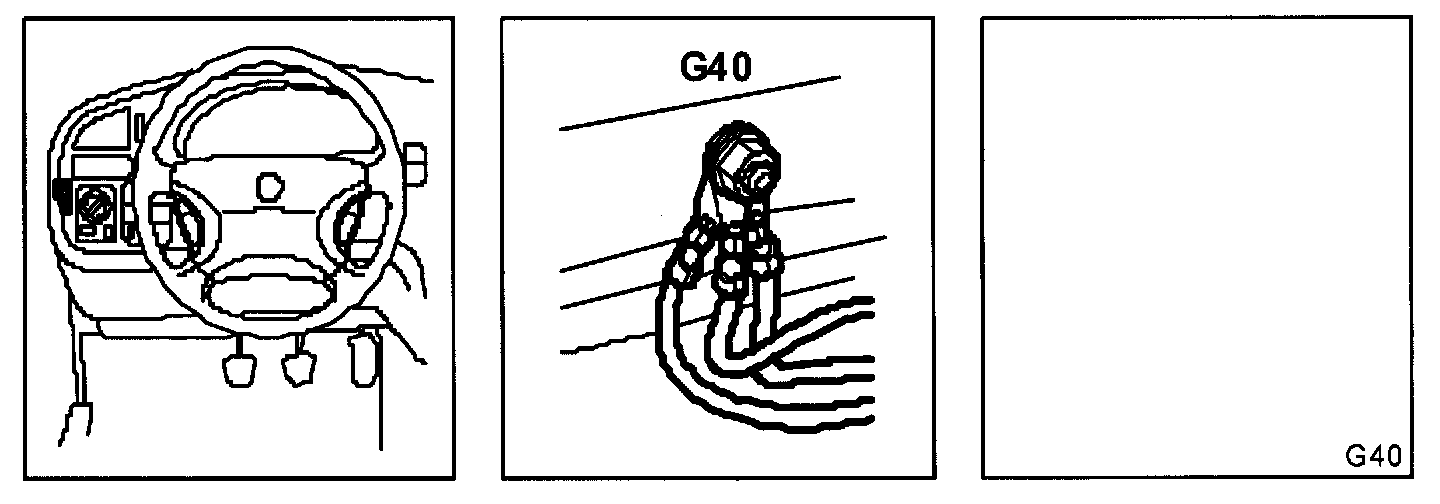

Grounding Point G40:
Location:
In passenger compartment on left-hand side of knee member.

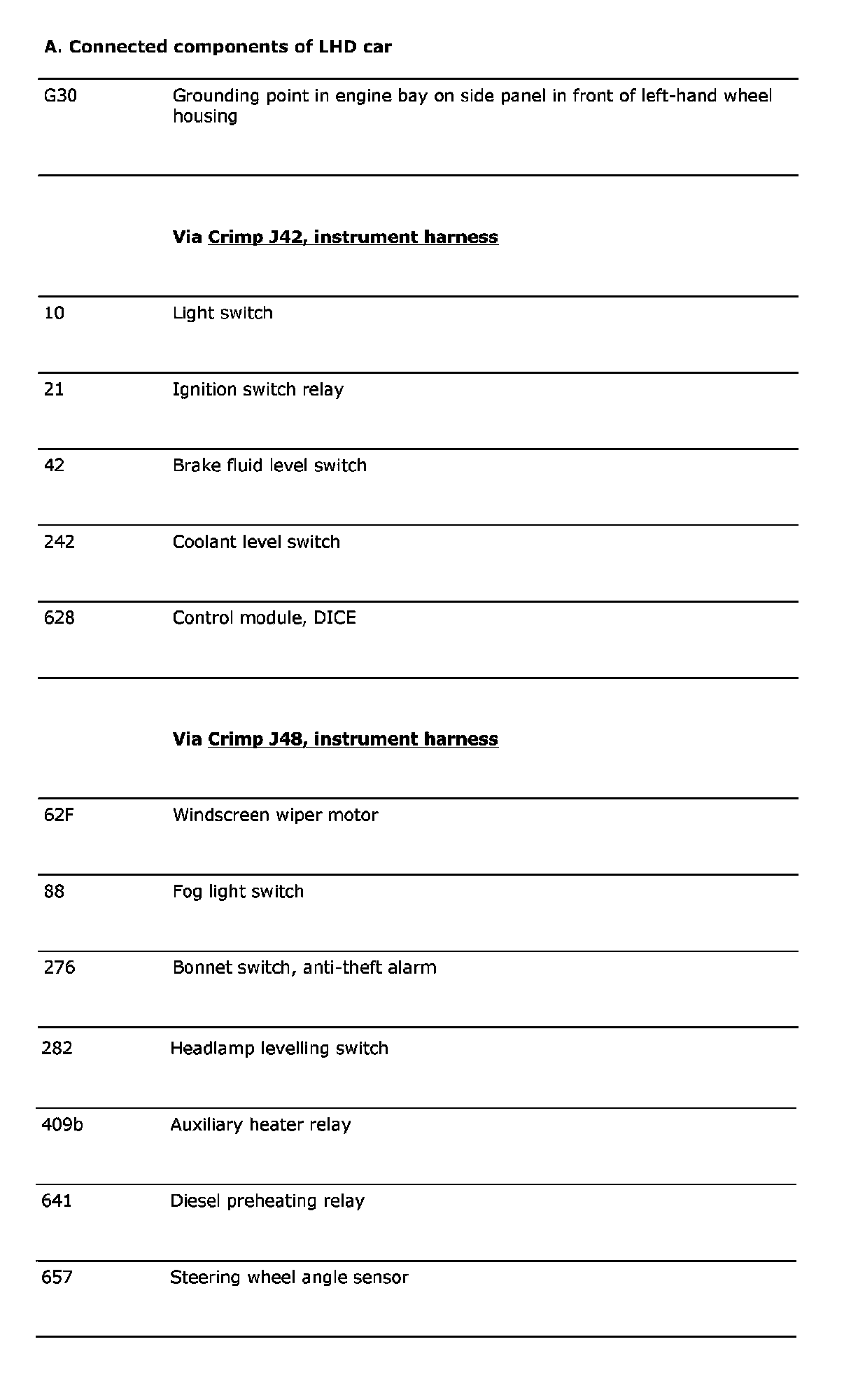

Connected Components:
