Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Ground Locations >> Grounding Point, G41P

Grounding Point, G41P



Location: Left grounding screw on middle of knee member (in cabin)

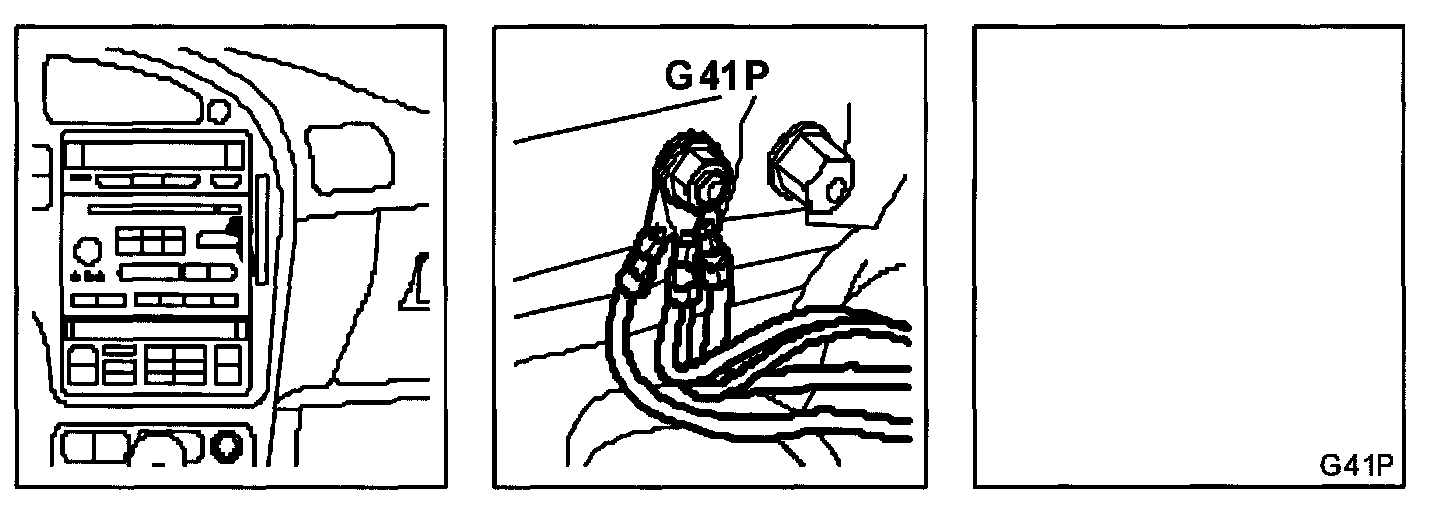

Grounding Point G41P:

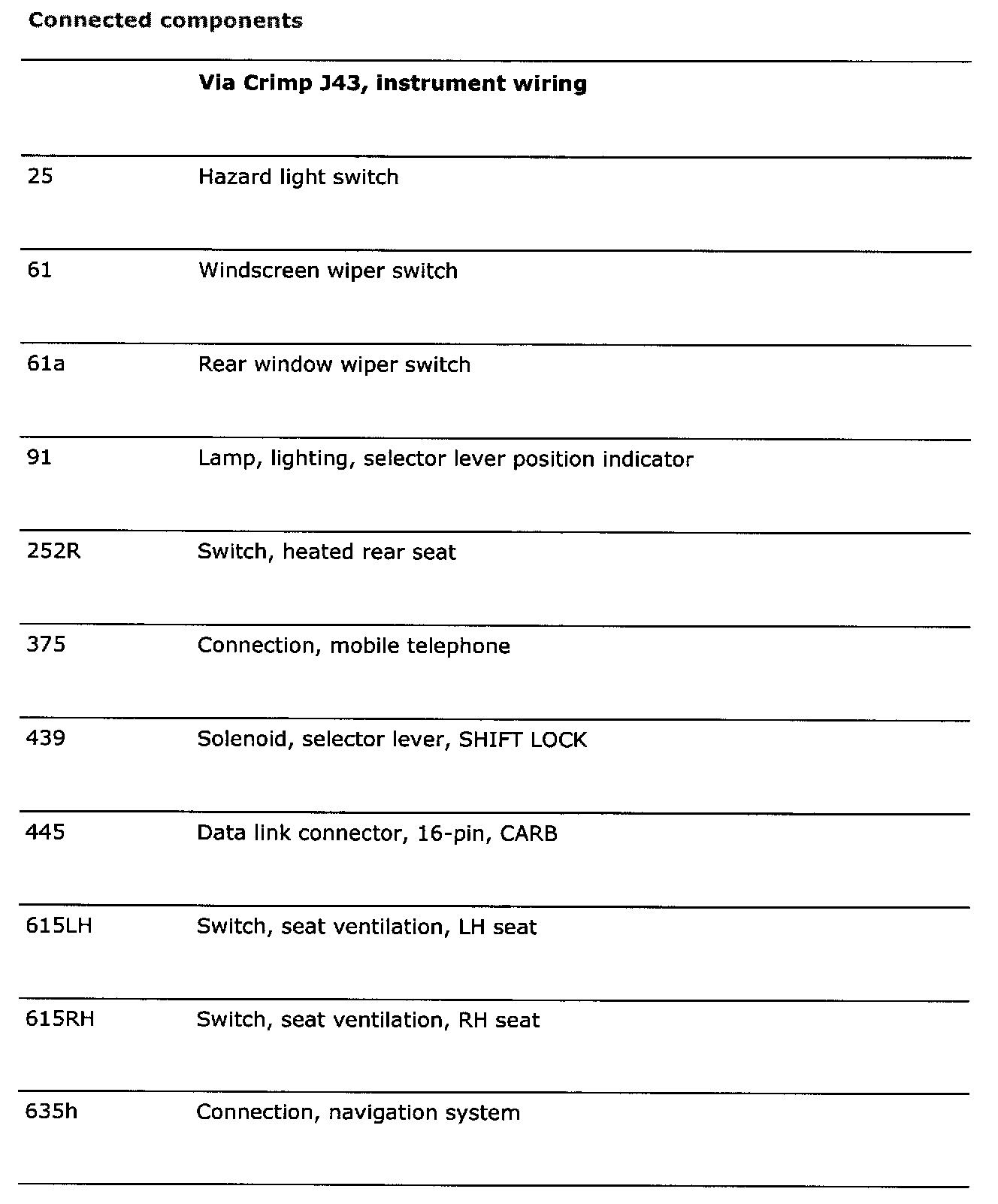

Connected Components Part 1:

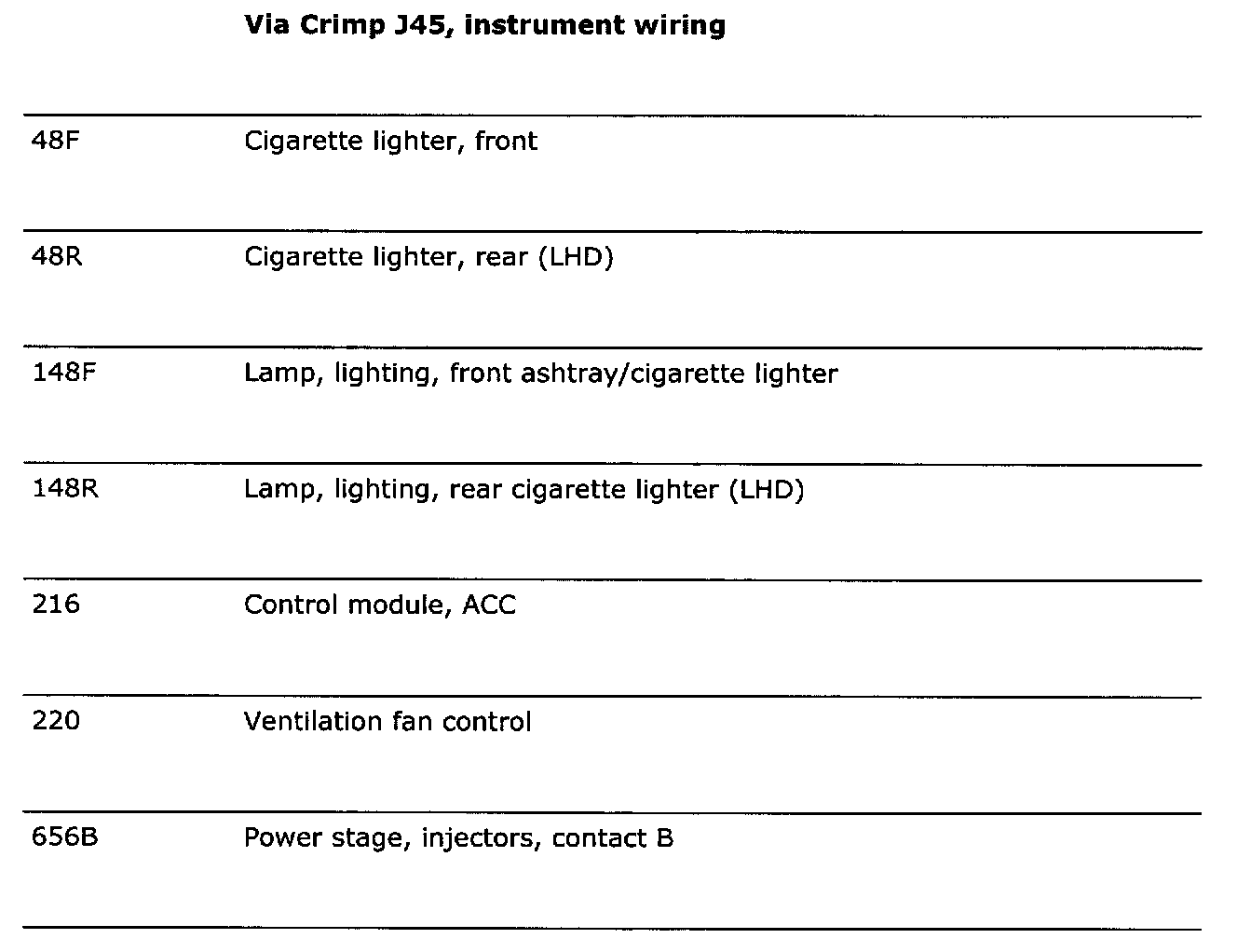

Connected Components Part 2:
