Components Connected to K-Lead

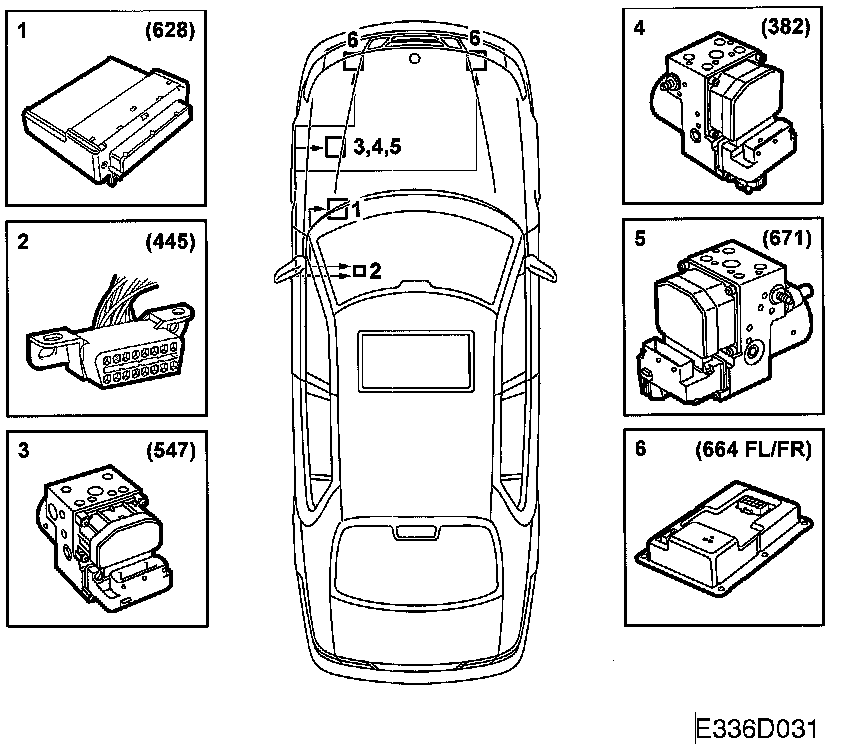

System Overview, Components Connected To K-lead, Petrol







1. DICE (Dashboard Integrated Central Electronics) (628)
2. Data link connector (H16-5/445)
3. ABS (Anti-lock Brake System) (547)
4. TC/ABS, (Traction Control/Anti Block System) (382)
5. ESP (Electronic Stability Program) (671)
6. AHL control module (Automatic Headlamp Levelling) (664) in headlamps with xenon lamp
