DICE

Bus Messages, DICE

For a further description of the car's bus system, see System overview, bus and diagnostics communication, petrol.

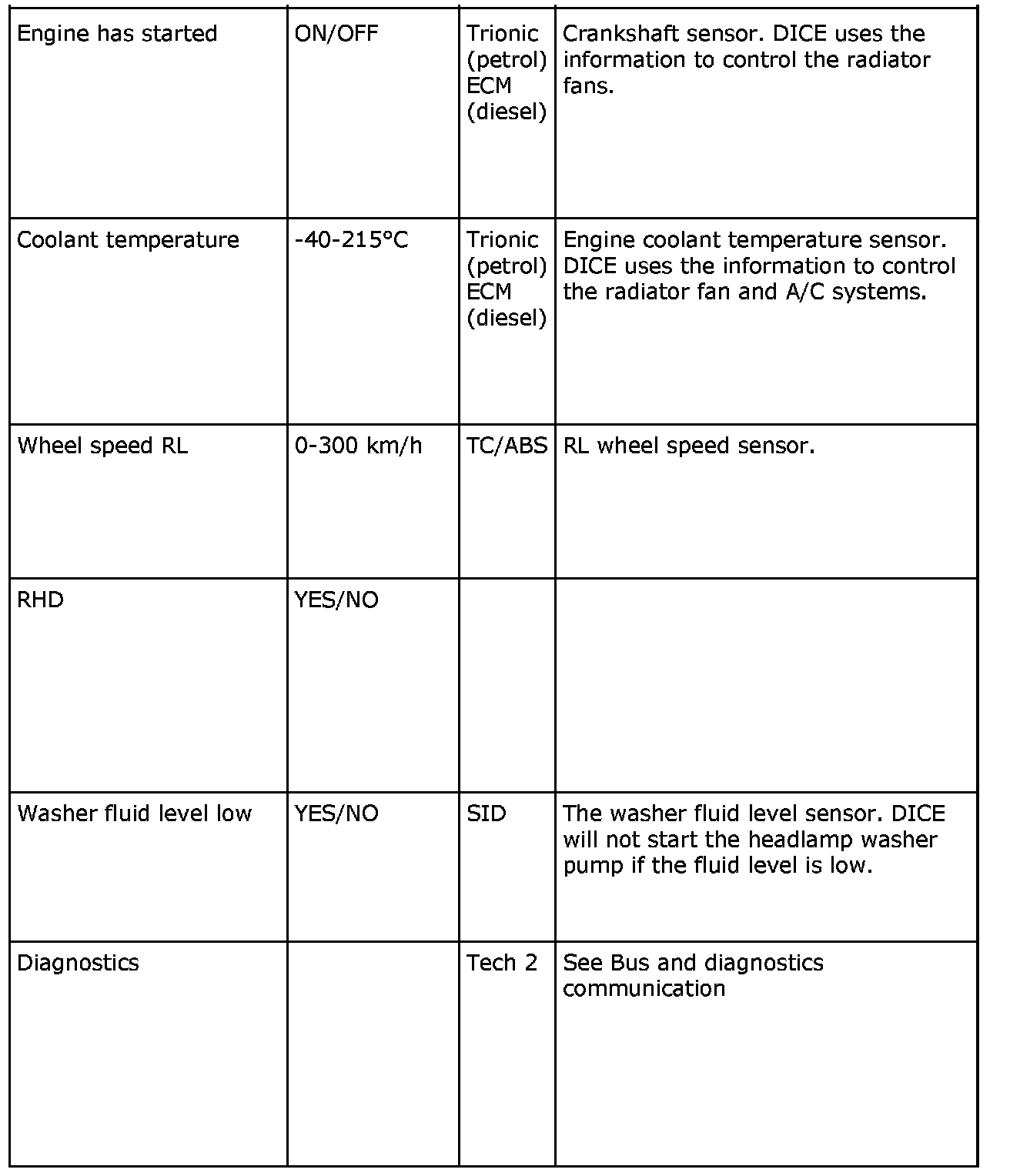

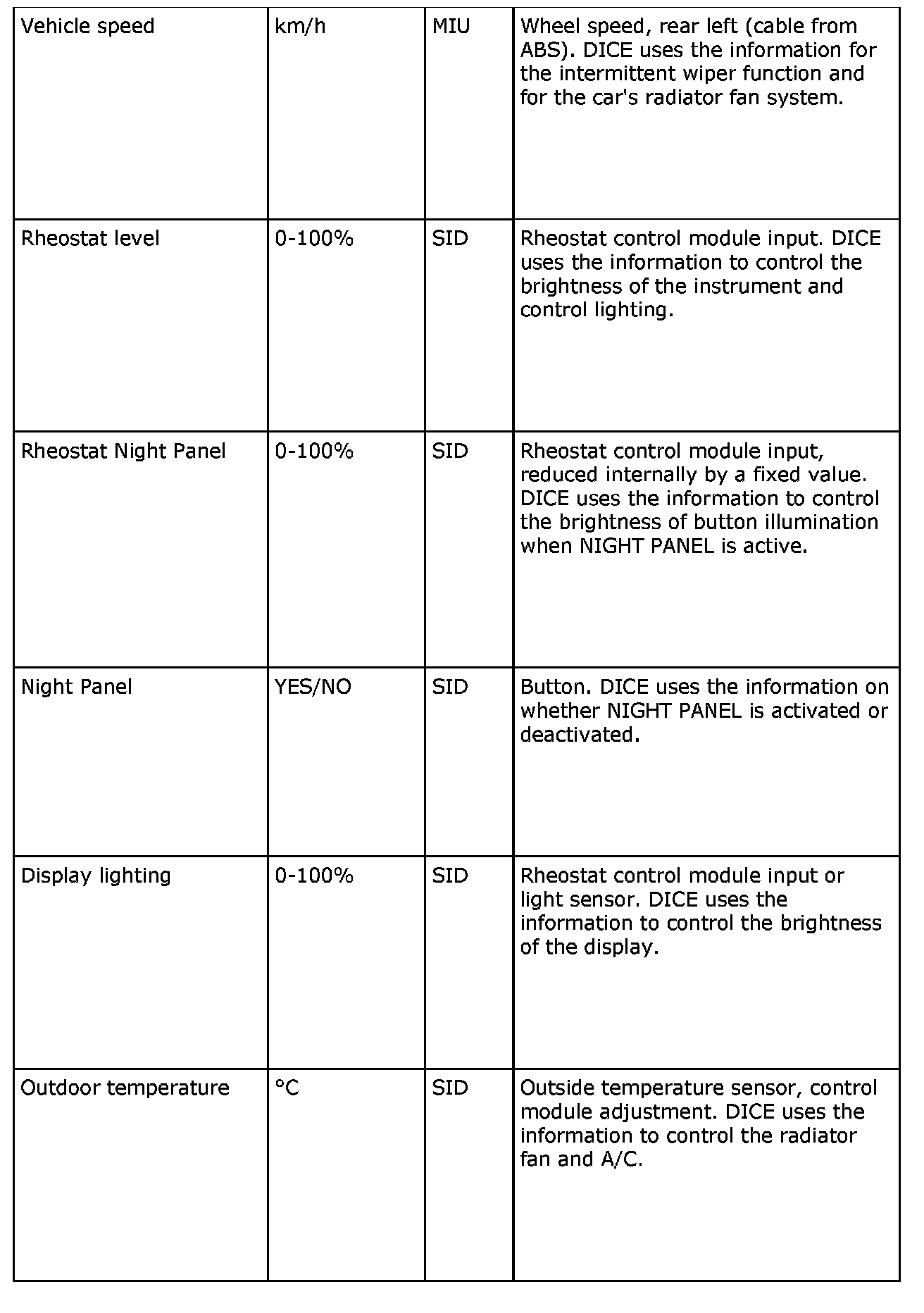

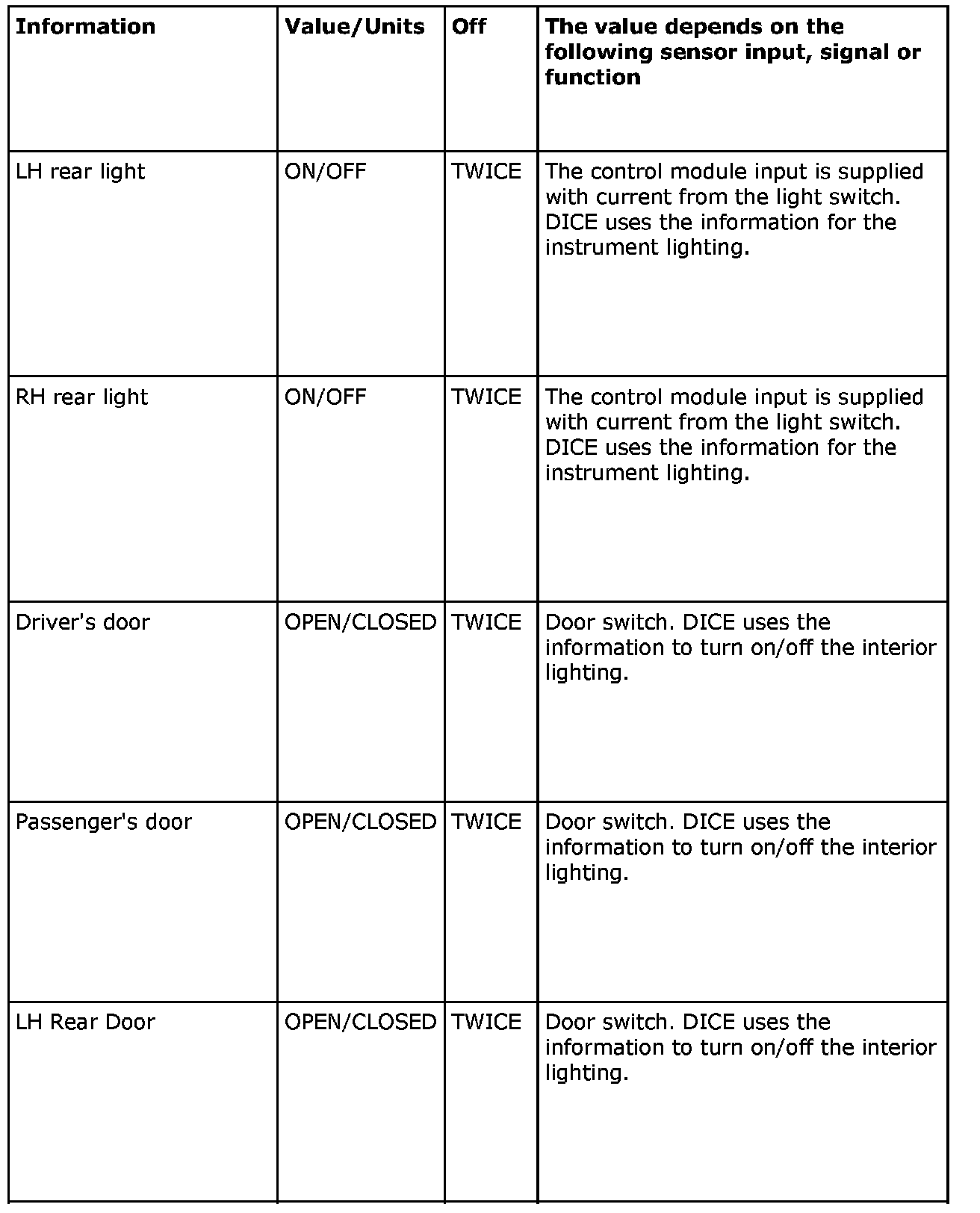

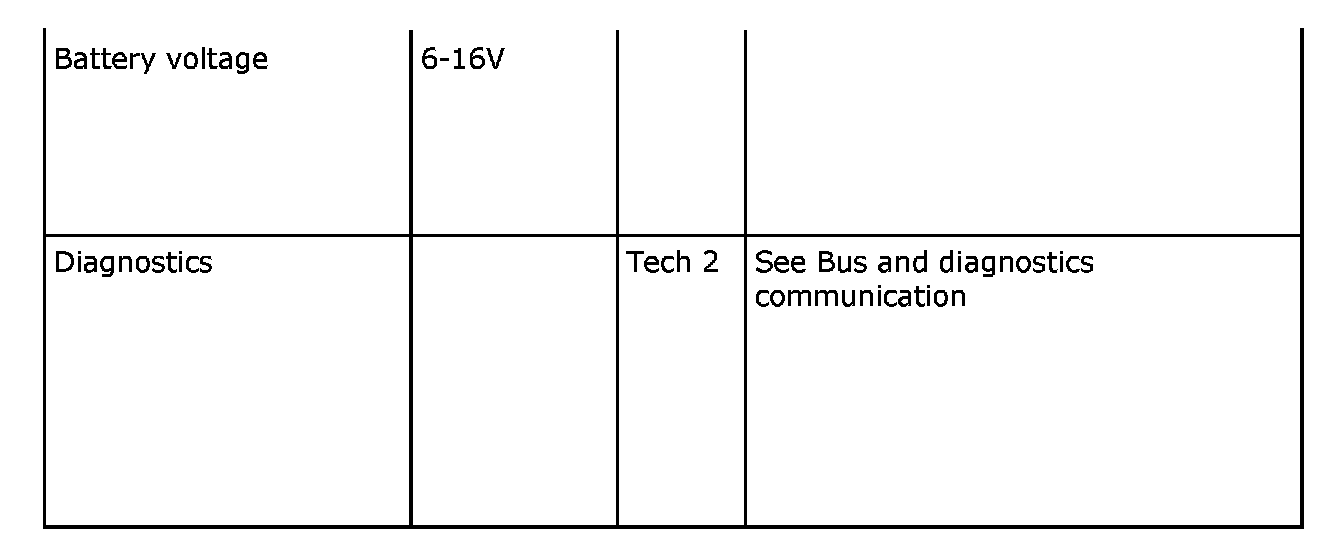

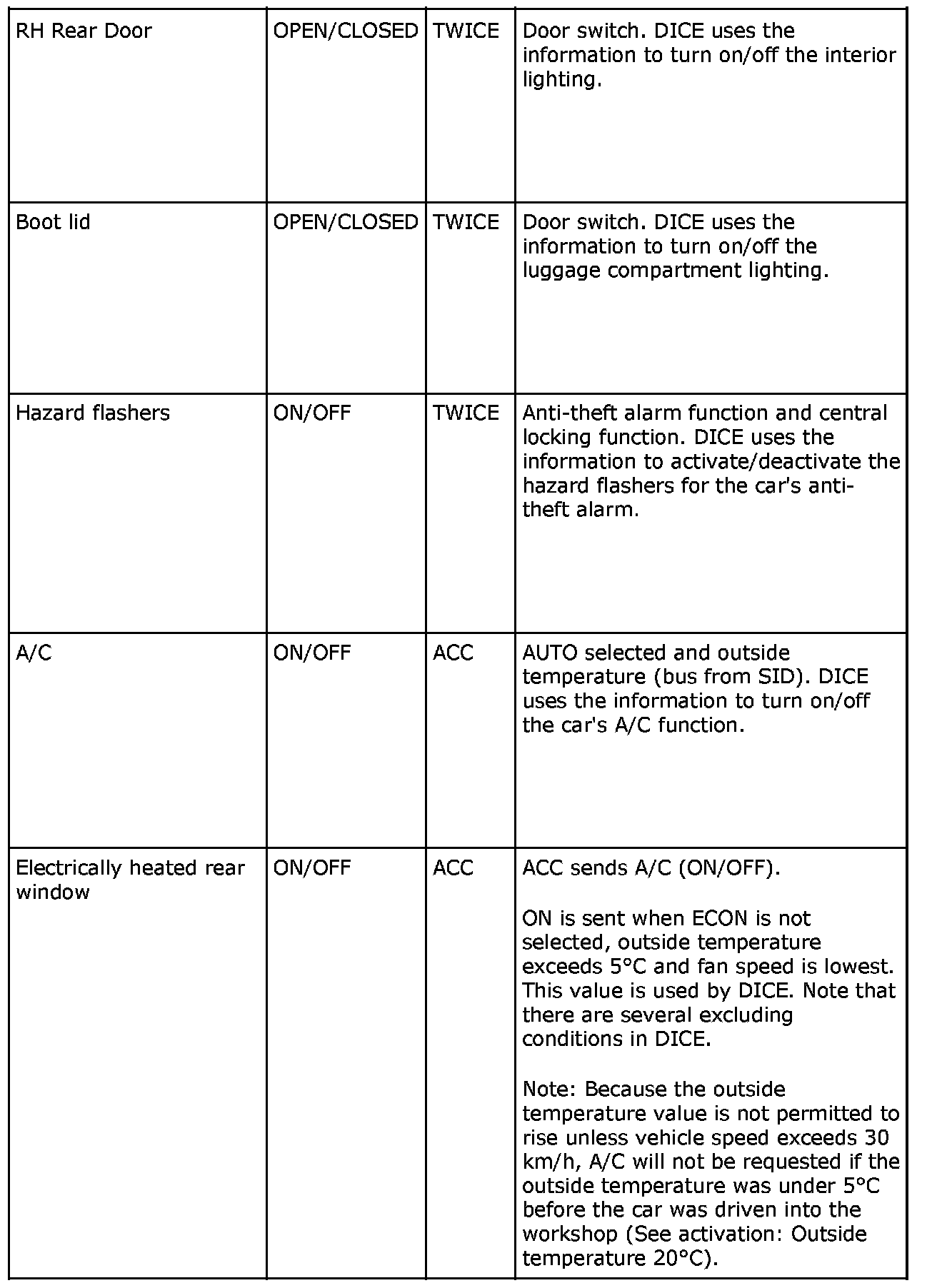

DICE uses the following information

Part 1:

Part 2:

Part 3:

Part 4:

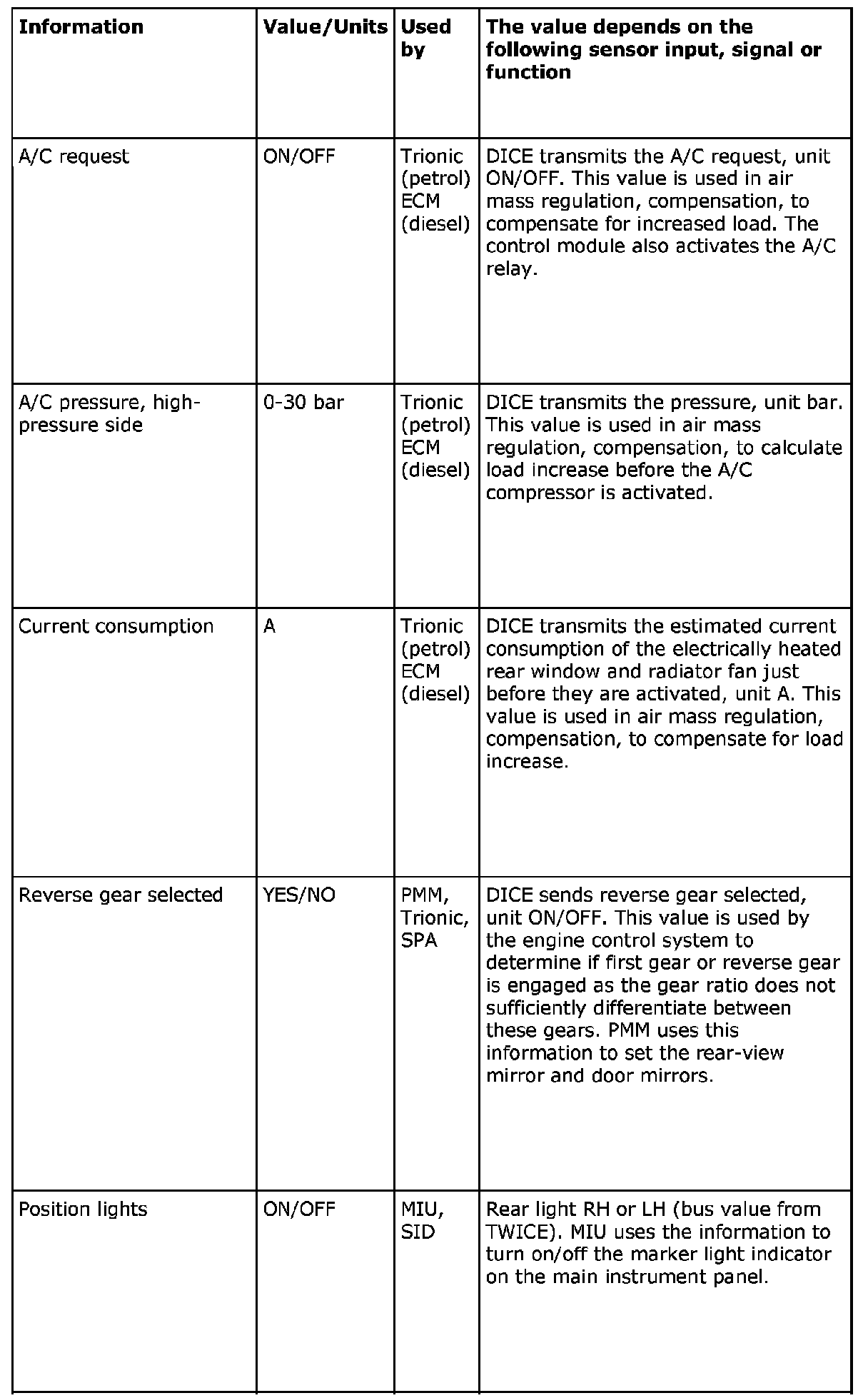

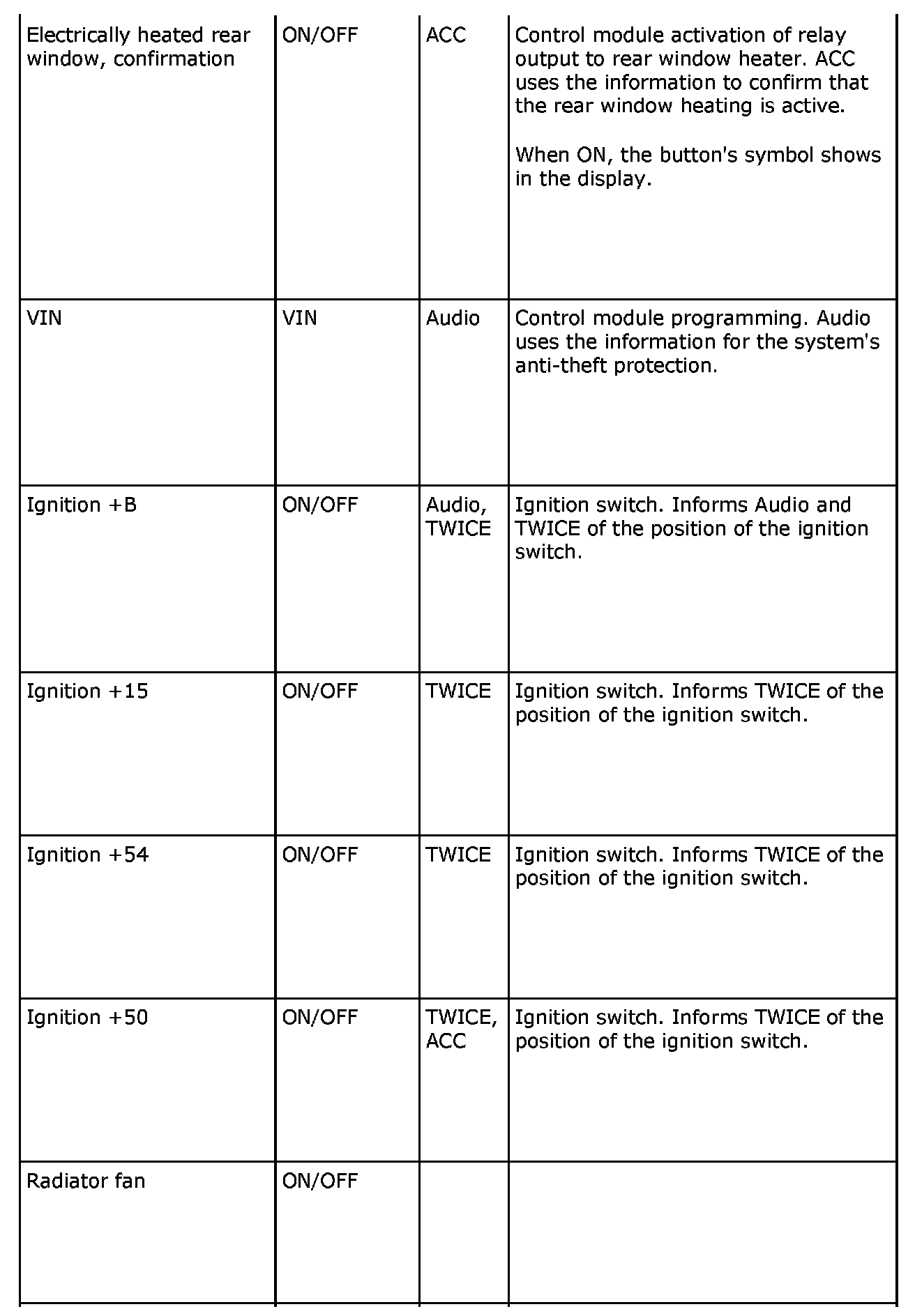

DICE sends the following information

Part 1:

Part 2:

Part 3:

Part 4:
