Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Description and Operation >> Bus Messages, Airbag

Bus Messages, Airbag



Bus Messages, Airbag

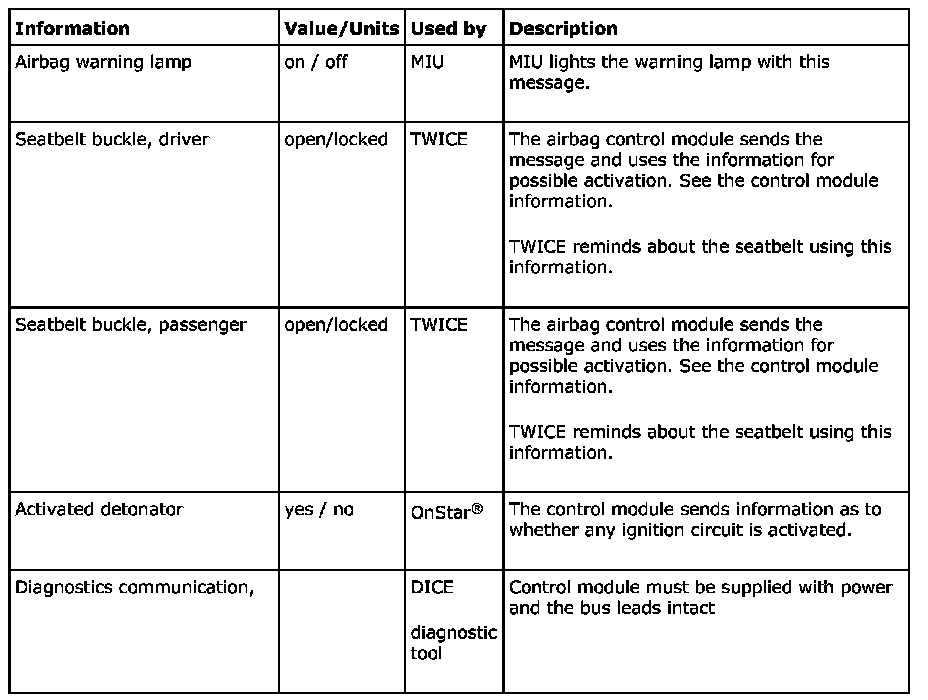

The airbag control module uses the following information:

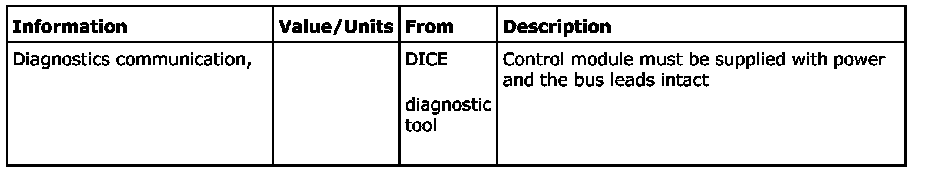

The airbag control module sends the following information:
