Load Compensation

Load Compensation

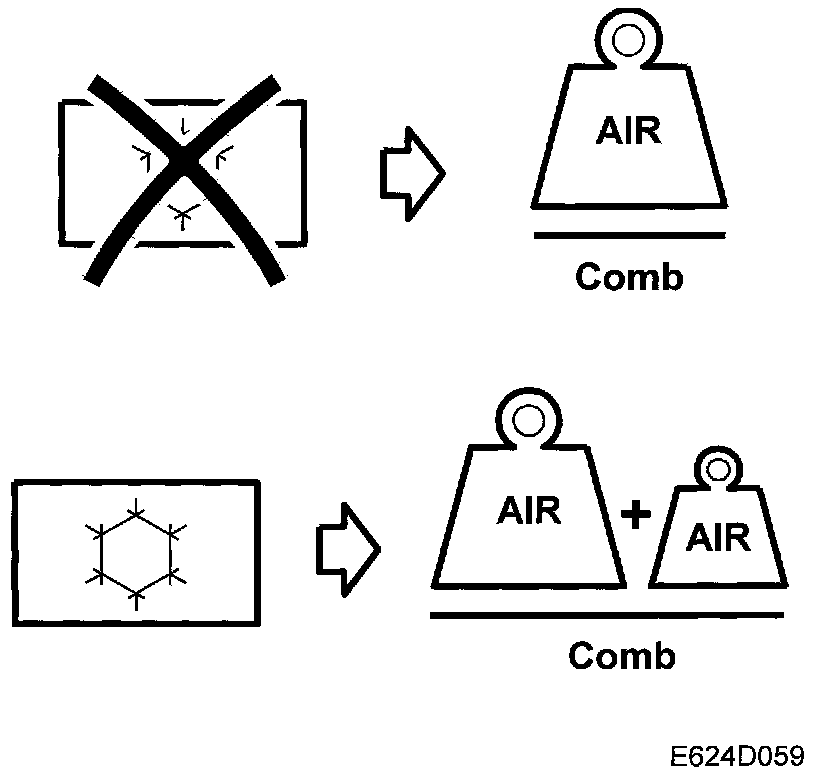

A/C

When DICE sends bus information A/C ON, Trionic T7 calculates the impending torque requirement of the compressor using the A/C pressure. The value is converted to mg air/combustion and constitutes the air mass/combustion required to compensate for the torque requirement of the compressor.

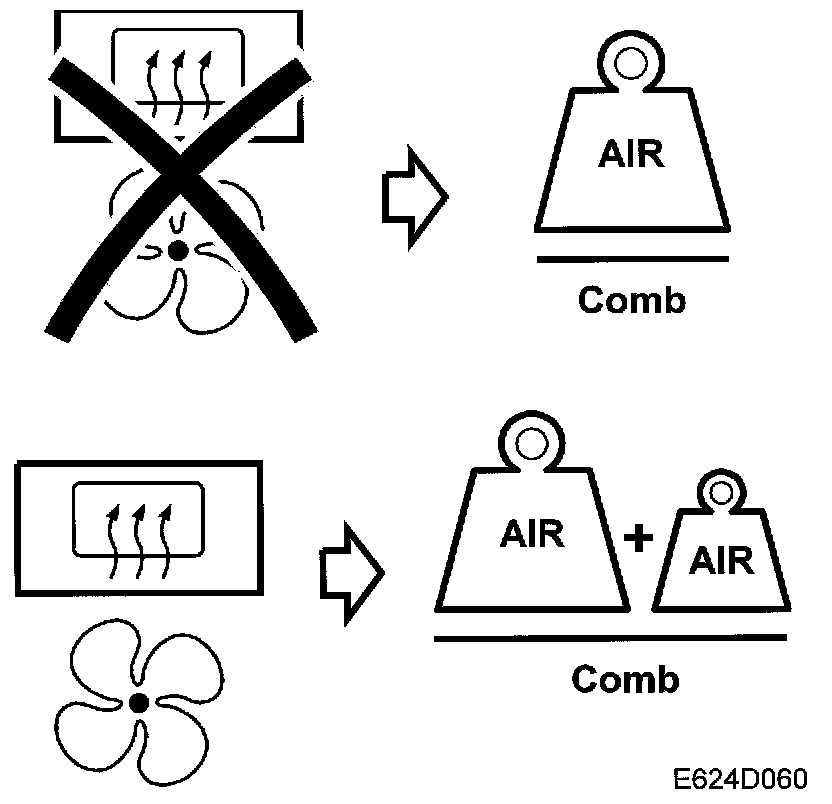

Electrical load







Just before the heated rear window or radiator fan is engaged, DICE sends bus message "Power consumption", unit A. Trionic T7 calculates the expected increase of the generator load.

The value is converted to mg air/combustion and constitutes the air mass/combustion value required to fully compensate for the generator's load increase.
