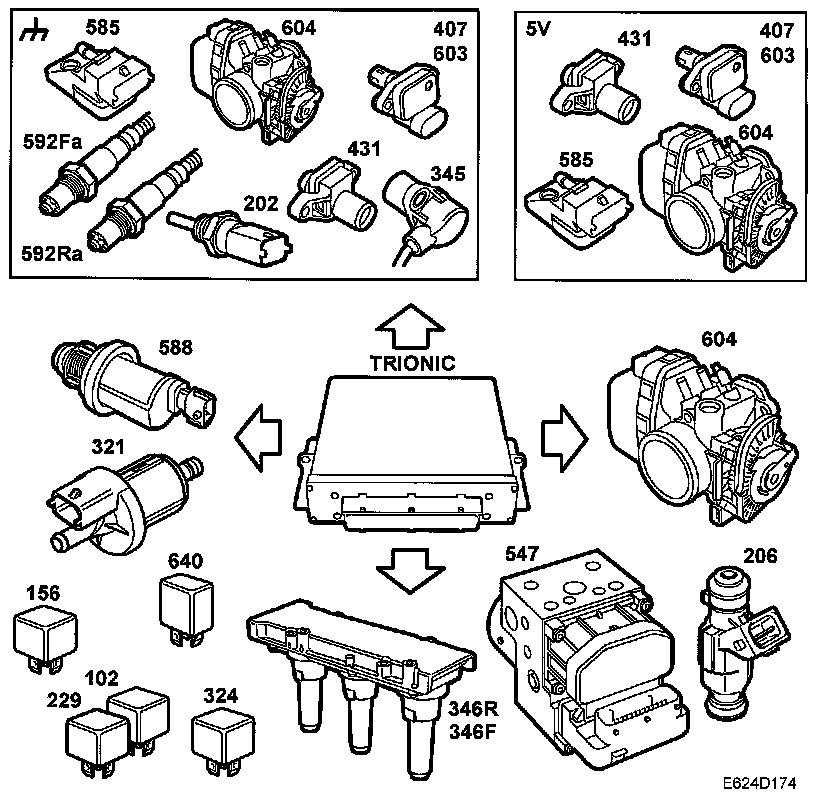

Control Module Outputs

Control Module Outputs







- Sensor ground, reference ground
- 5V supply to sensor
- Main relay and fuel pump relay
- A/C relay (156)
- Throttle motor
- Relay, limp-home solenoid (640)
- EVAP canister purge valve (321)
- EVAP canister shut-off valve (588)
- Injectors (206)
- Ignition discharge modules (346 F/R)
