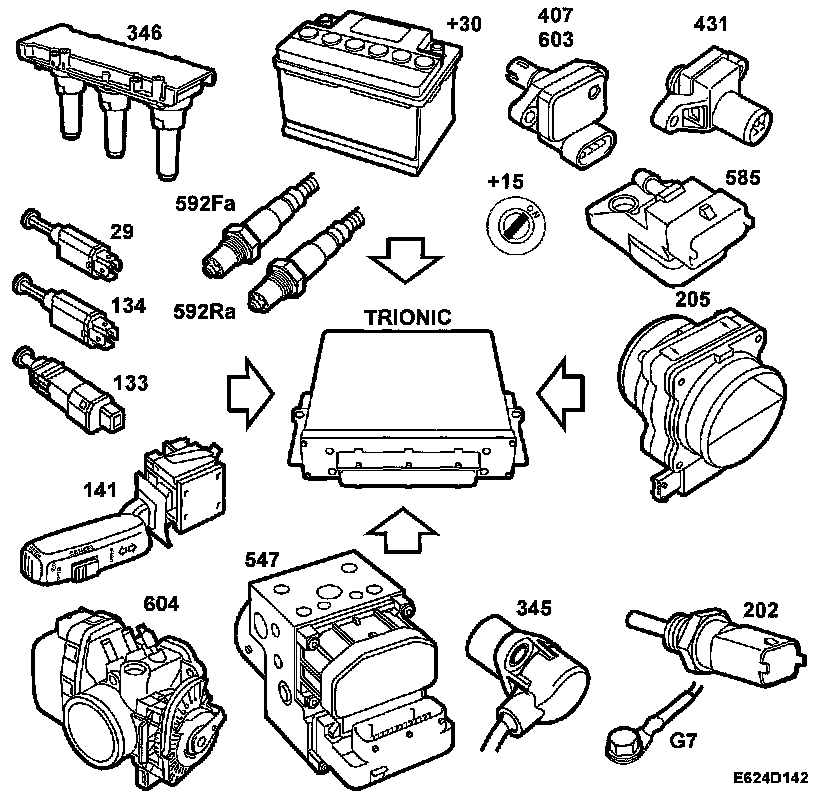

Control Module Inputs

Control Module Inputs







- Power supply +30
- Power supply +15
- Power ground
- Crankshaft position sensor (345)
- Mass air flow sensor (205)
- Manifold absolute pressure sensor (431)
- Charge air absolute pressure sensor (603)
- EVAP pressure sensor (585)
- Intake air temperature sensor (407)
- Temperature sensor, coolant (202)
- Speed, wire from ABS (547)
- Pedal position sensor
- Cruise control switch (141)
- Pedal switches (133, 134)
- Brake light switch (29)
- Throttle position sensor
- Oxygen sensor 1 (592Fa)
- Oxygen sensor 2 (592Ra)
- Ignition discharge modules (346 F/R)
