A General Overview

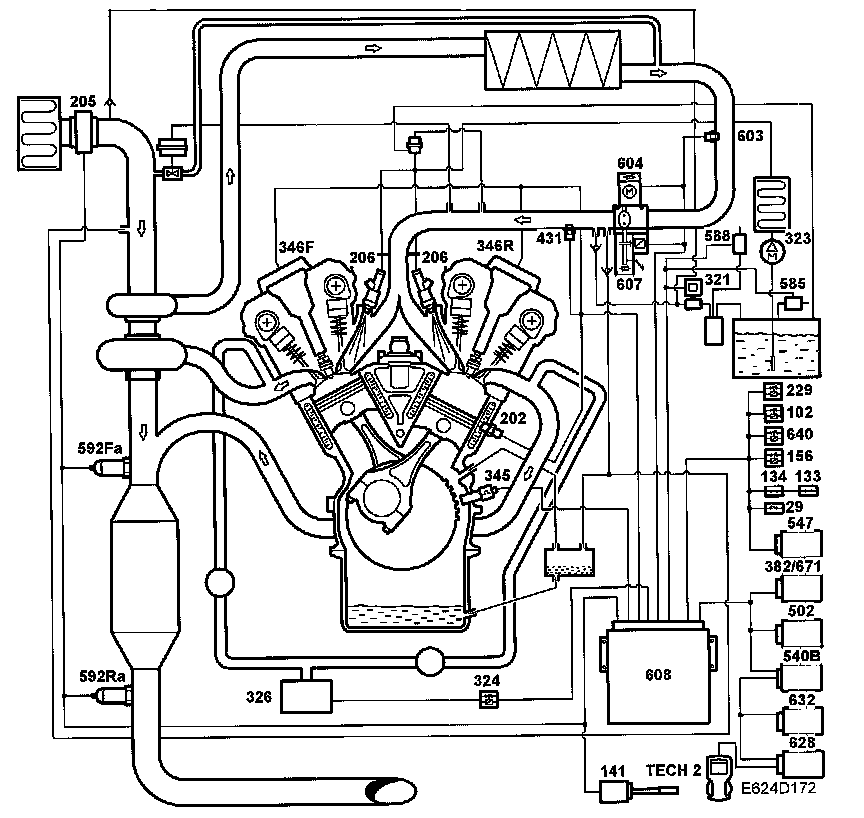

System Overview







- Control module (608)
- Crankshaft position sensor (345)
- Mass air flow sensor (205)
- Manifold absolute pressure sensor (431)
- Charge air absolute pressure sensor (603)
- Intake air temperature sensor (407)
- Engine coolant temperature sensor (202)
- Throttle body (604)
- Limp-home solenoid (607)
- Oxygen sensor 1 (592Fa)
- Oxygen sensor 2 (592Ra)
- EVAP canister purge valve (321)
- EVAP shut-off control valve (588)
- EVAP pressure sensor (585)
- Injectors (206)
- Ignition discharge modules (346 F/R)
- Switch, cruise control (141)
Clutch pedal switch (133)
Brake pedal switch (134)
Brake light switch (29)
- Main relay (229)
Fuel pump relay (102)
Relay, limp-home solenoid (640)
SAI relay (324)
A/C relay (156)
(A/C relay is mounted on the main relay board under the bonnet.)
- ABS control module (547) / TC/ABS control module (382) / ESP control module (671)
- TCM control module (502)
- Main instrument unit (540B)
- TWICE control module (632)
- DICE control module (628)
- Secondary air injection pump, SAI (326)
