Interior Lighting

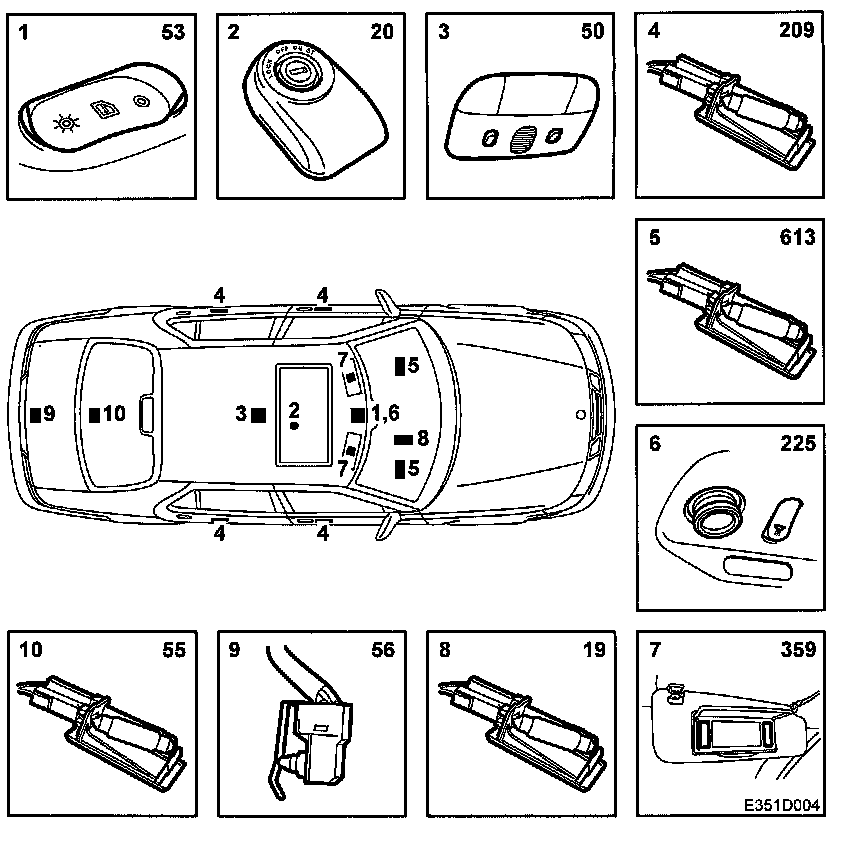

Main Components, Interior Lighting 4D







1. Interior lighting switch (53)
2. Ignition switch (20)
3. Centre roof lamp (50)
4. Courtesy lights (209)
5. Front floor lighting (613)
6. Reading light (225)
7. Vanity mirror lighting (359)
8. Glove box light (19)
9. Luggage compartment light switch (56)
10. Luggage compartment lighting (55)
