Exterior Lighting

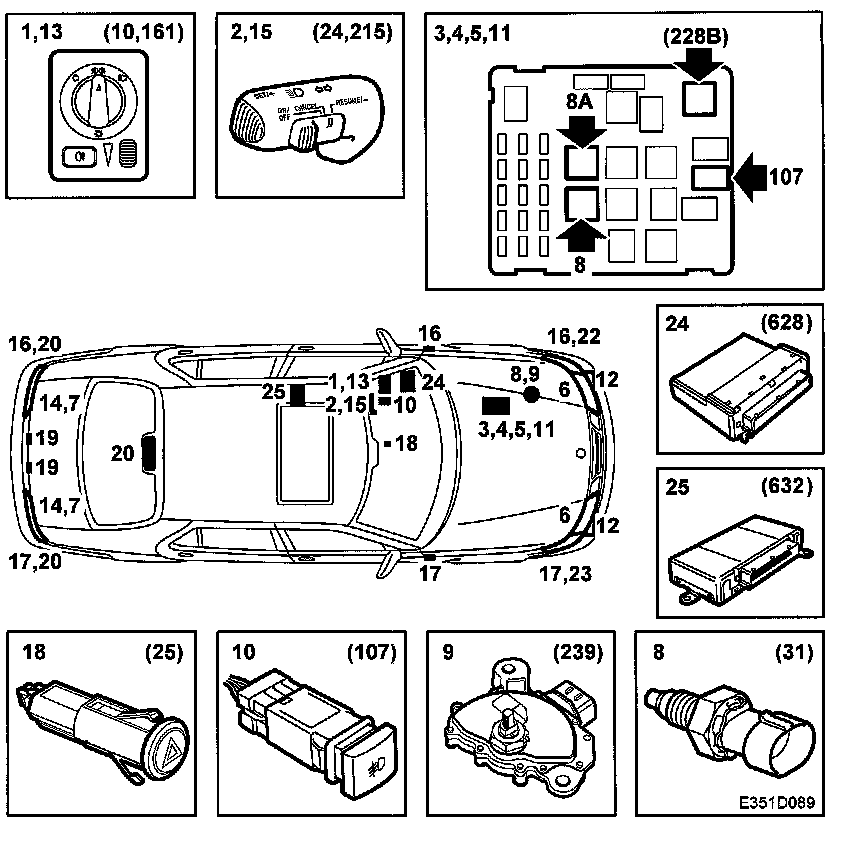

Main Components, Exterior Lighting 4D







1. Light switch (10)
2. Dipswitch (24)
3. Main beam relay (8a)
4. Dipped beam relay (8)
5. Filament monitor, headlamps (228b)
6. Main/dipped beam lamp (11, 12)
7. Reversing light (32)
8. Reversing light switch, manual (31)
9. Transmission range switch, automatic transmission (239)
10. Front fog light switch (88)
11. Fog light relay (107)
12. Fog light (85)
13. Rear fog light switch (161)
14. Rear fog light (33)
15. Dipswitch (215)
16. LH direction indicator (27L)
17. RH direction indicator (27R)
18. Hazard flasher switch (25)
19. Number plate lighting (15)
20. Brake lights (30)
21. Brake light switch (29)
22. Side marker light, LH (234FL)
23. Side marker light, RH (234FR)
24. Control module, DICE (628)
25. Control module, TWICE (632)
