Speedometer

Speedometer

Fault symptoms

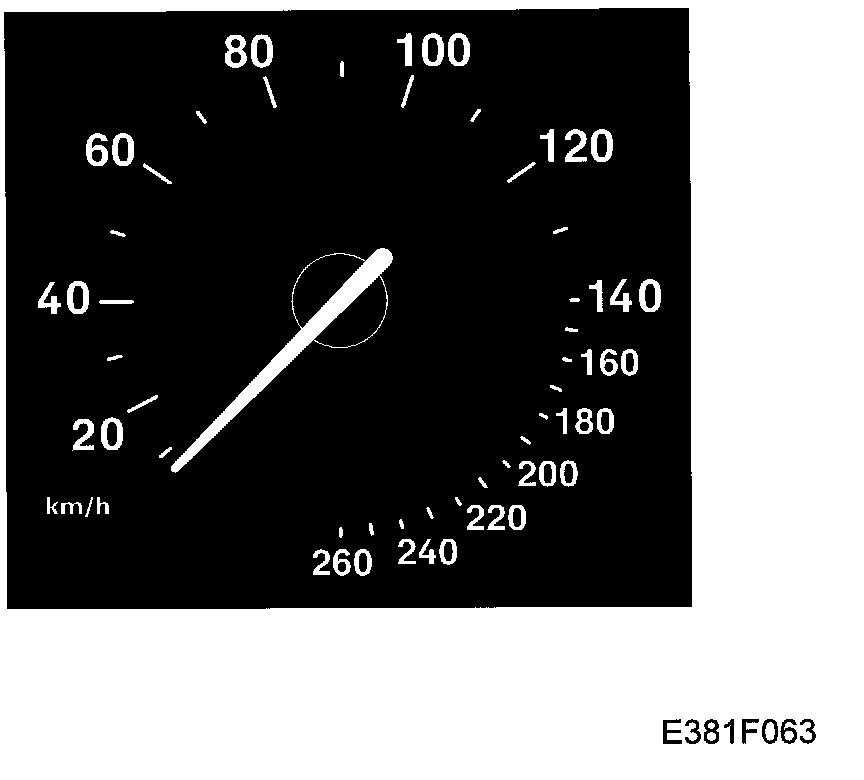

Speedometer reads 0 km/h.










Diagnostic help
- A speedometer reading can be obtained with the diagnostic tool.
- The speedometer can be activated with the diagnostic tool.

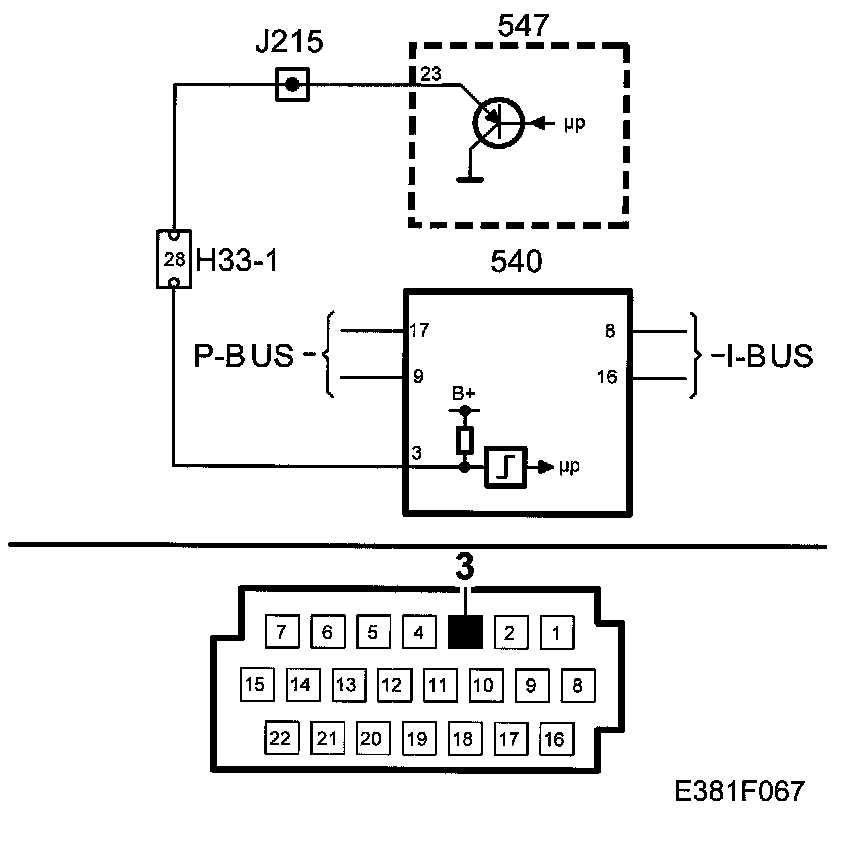

Check the wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
