Tech 2 Menu, Read Value, Activate, Adjust, Prog., Sys Info.

Tech 2 Menu Structure
Diagnostic trouble codes
Read Values/Activate
Adjustment
Programming
Snapshot
System Information

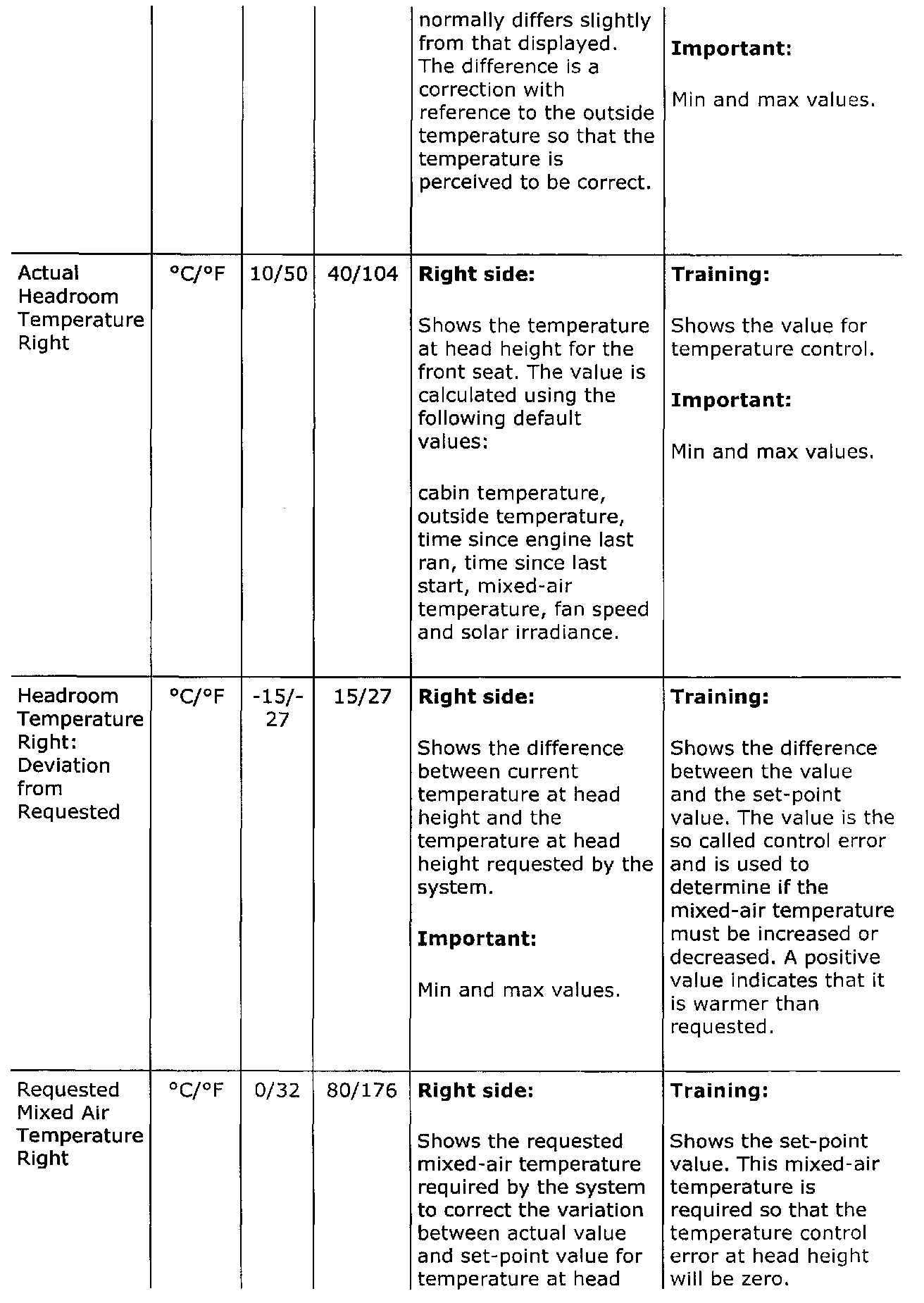

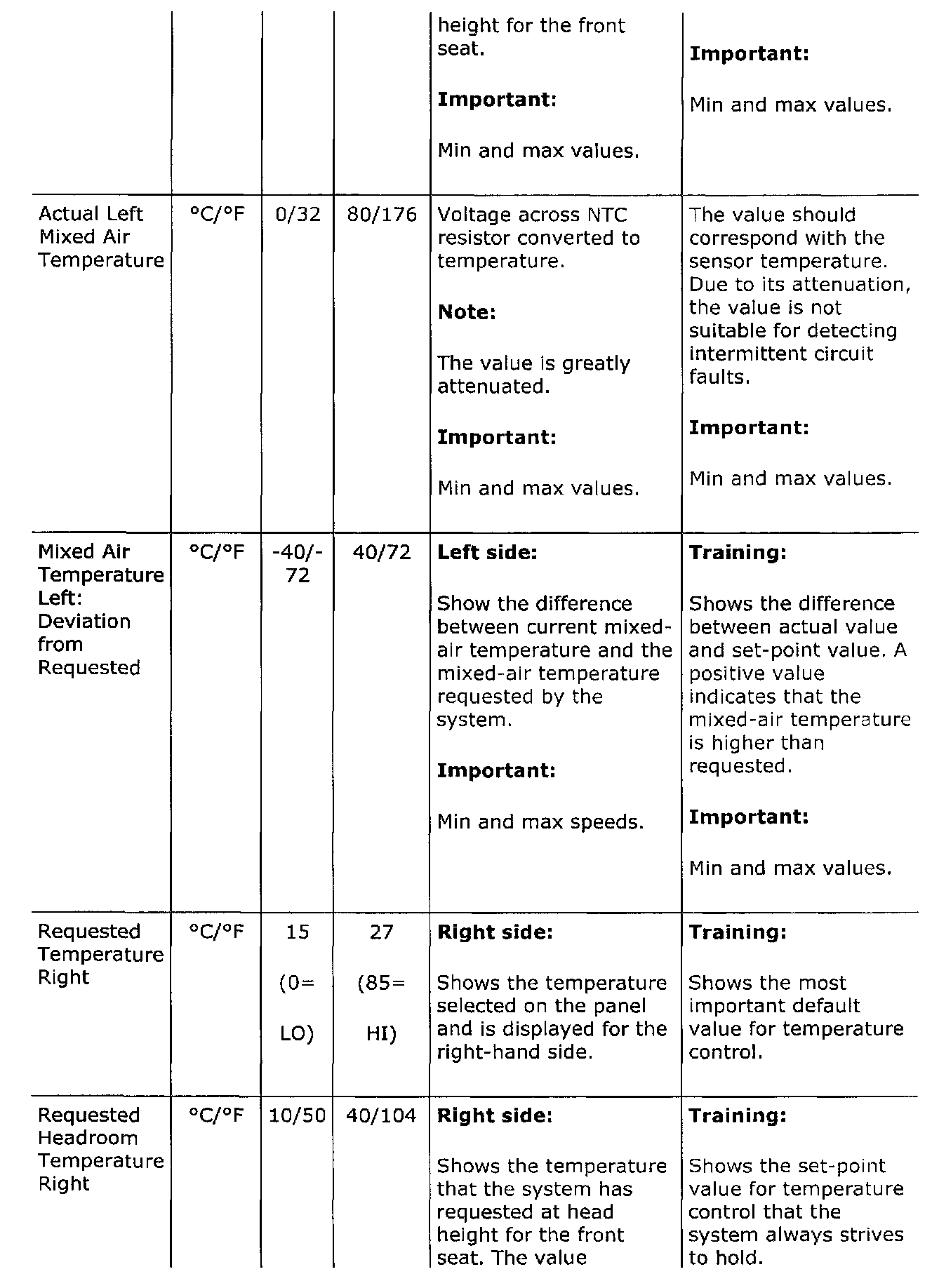

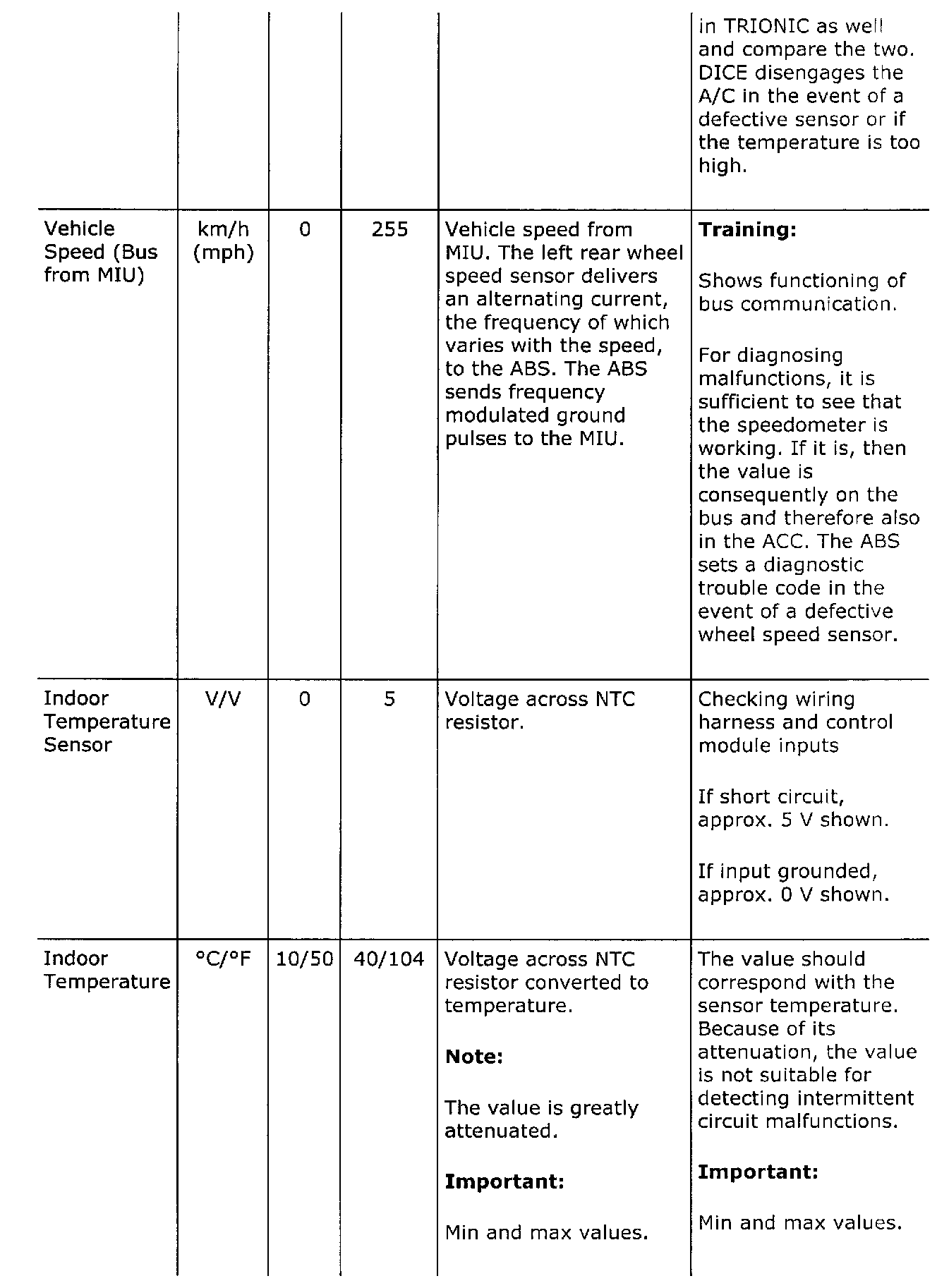

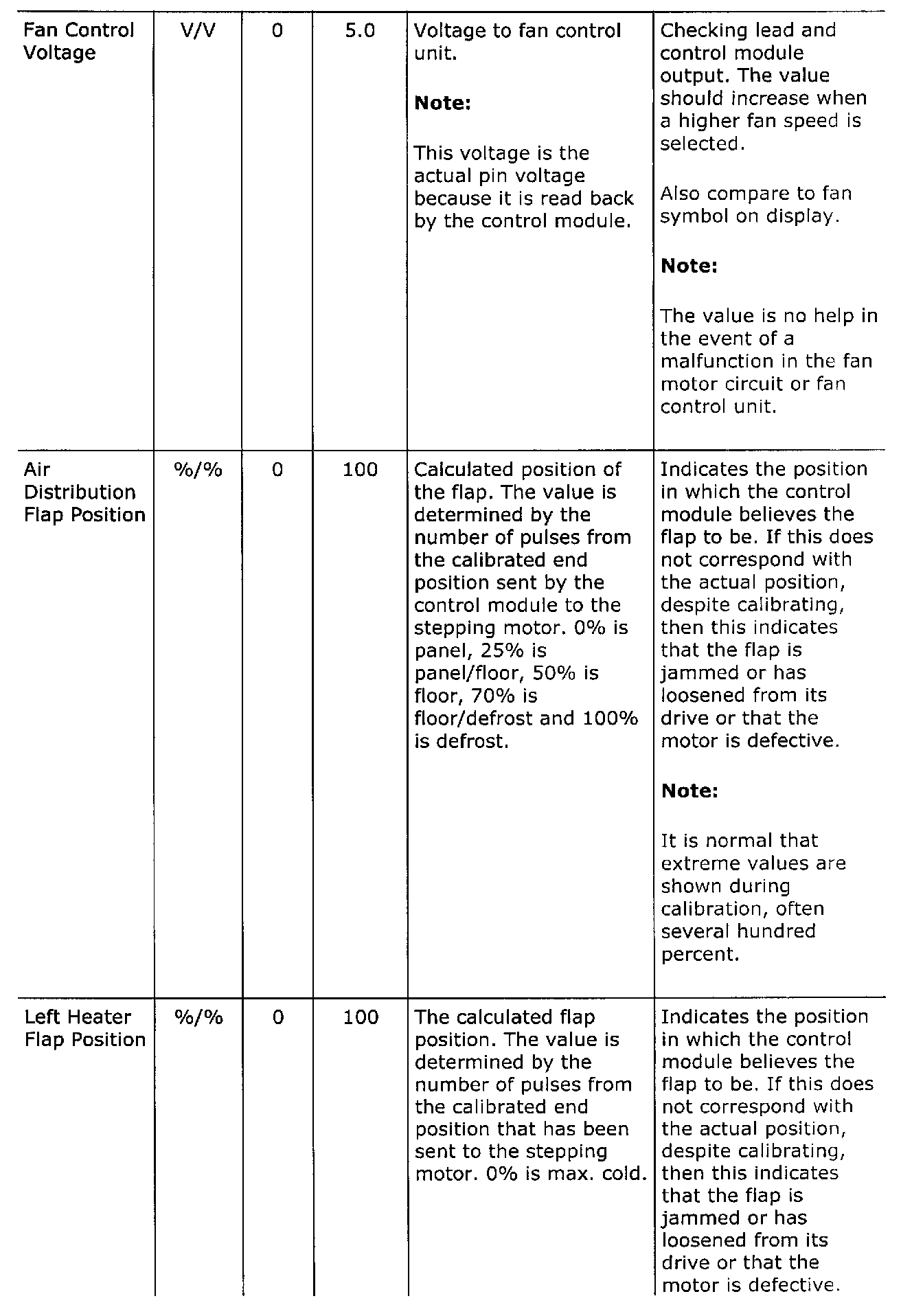

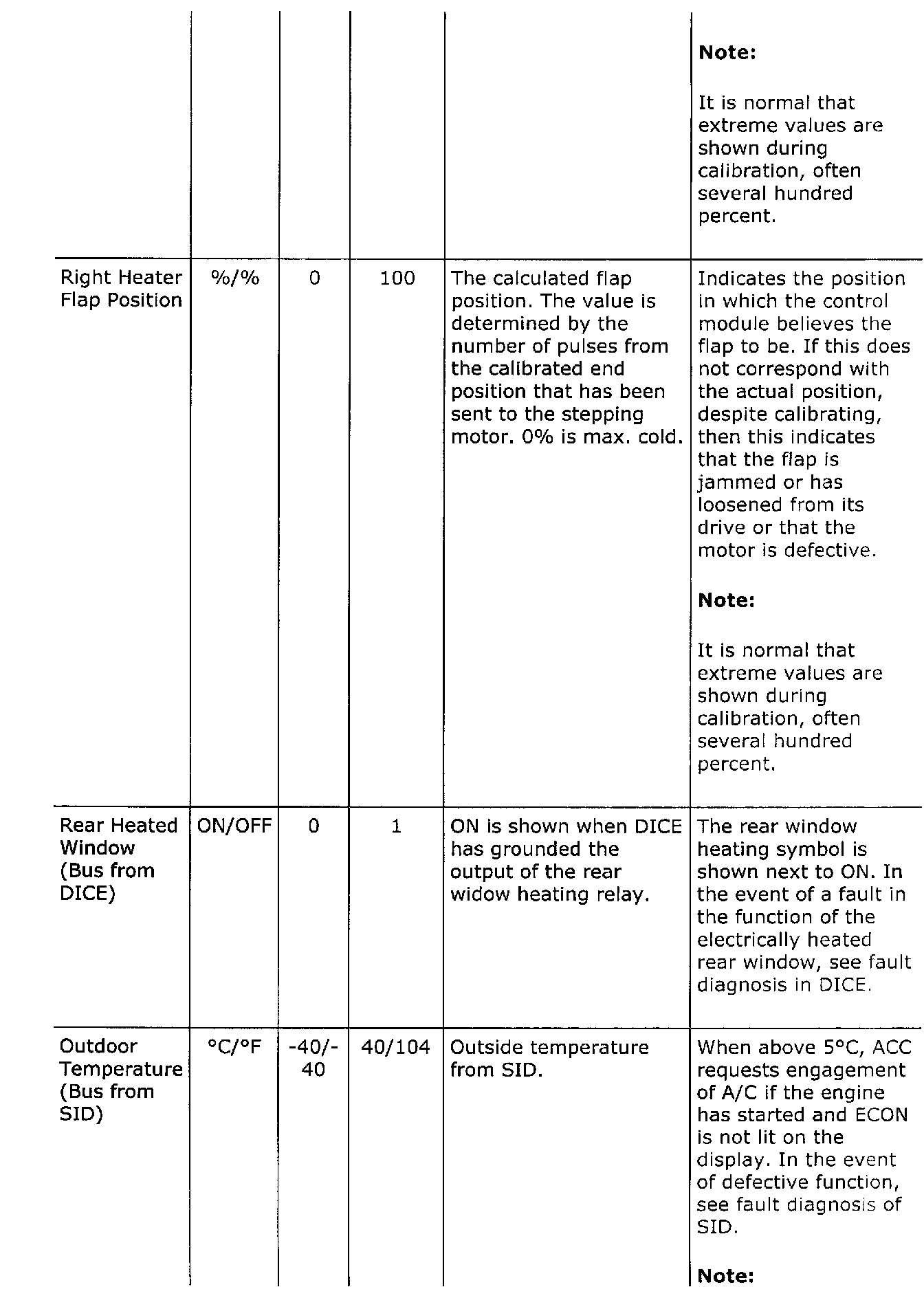

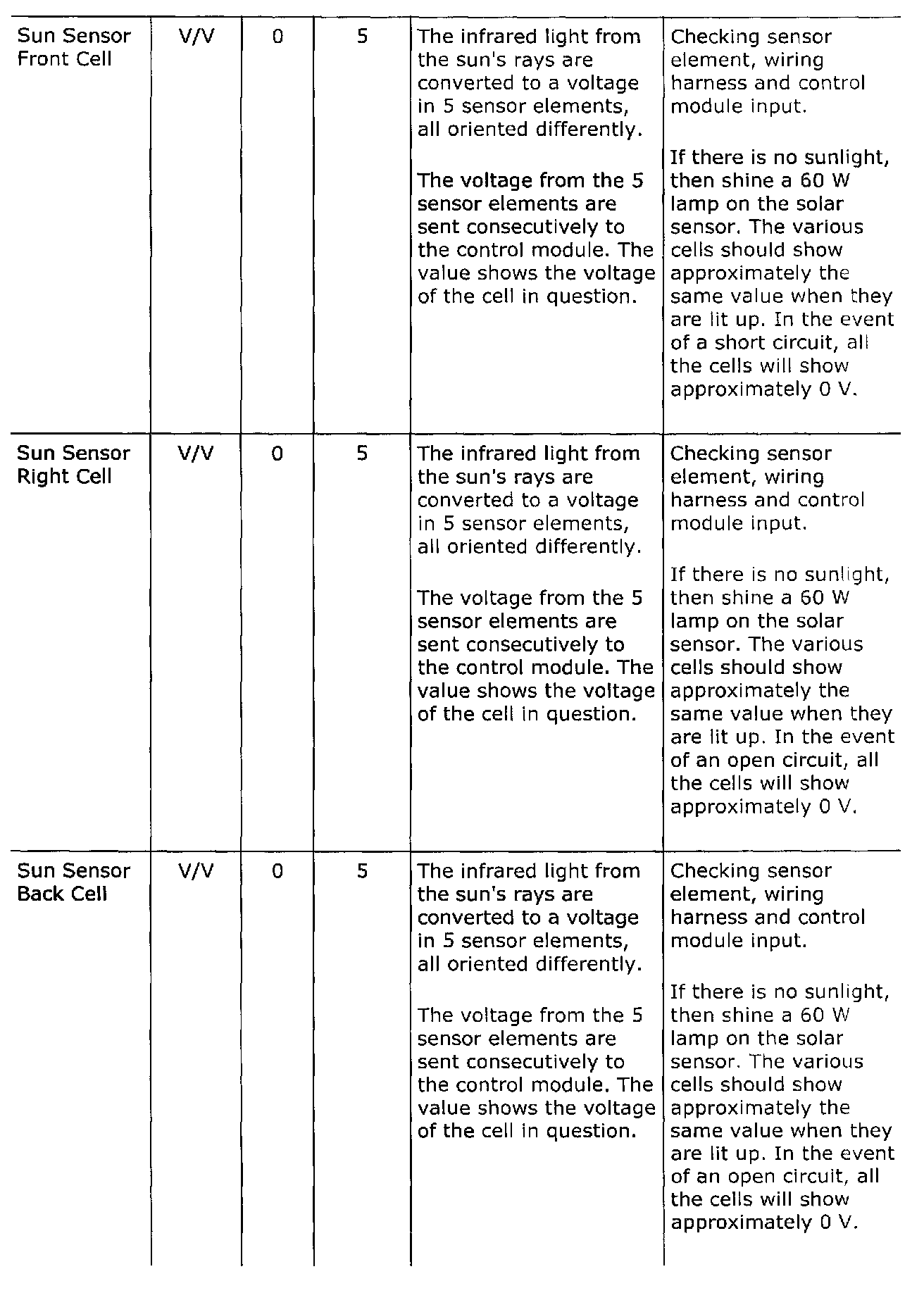

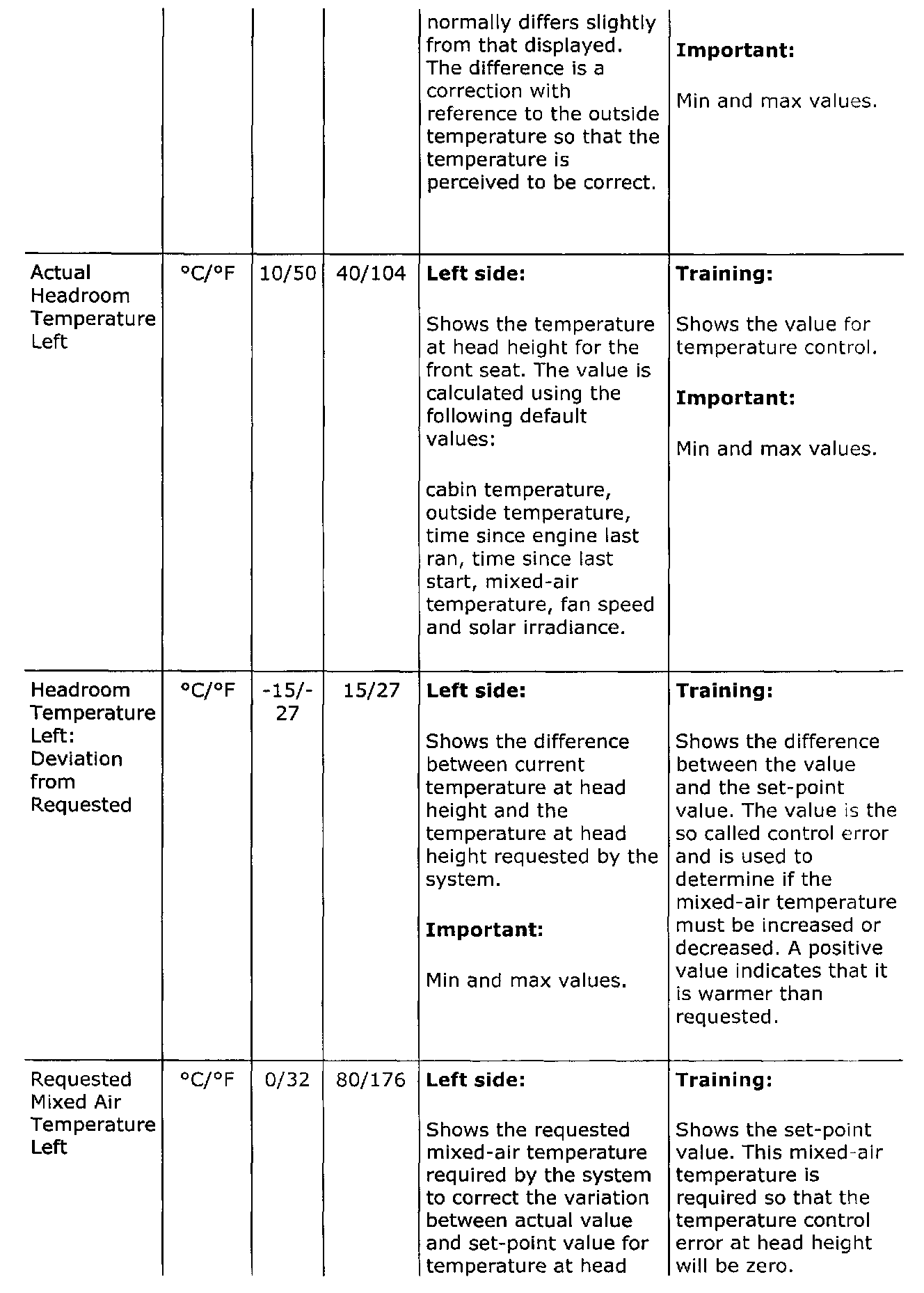

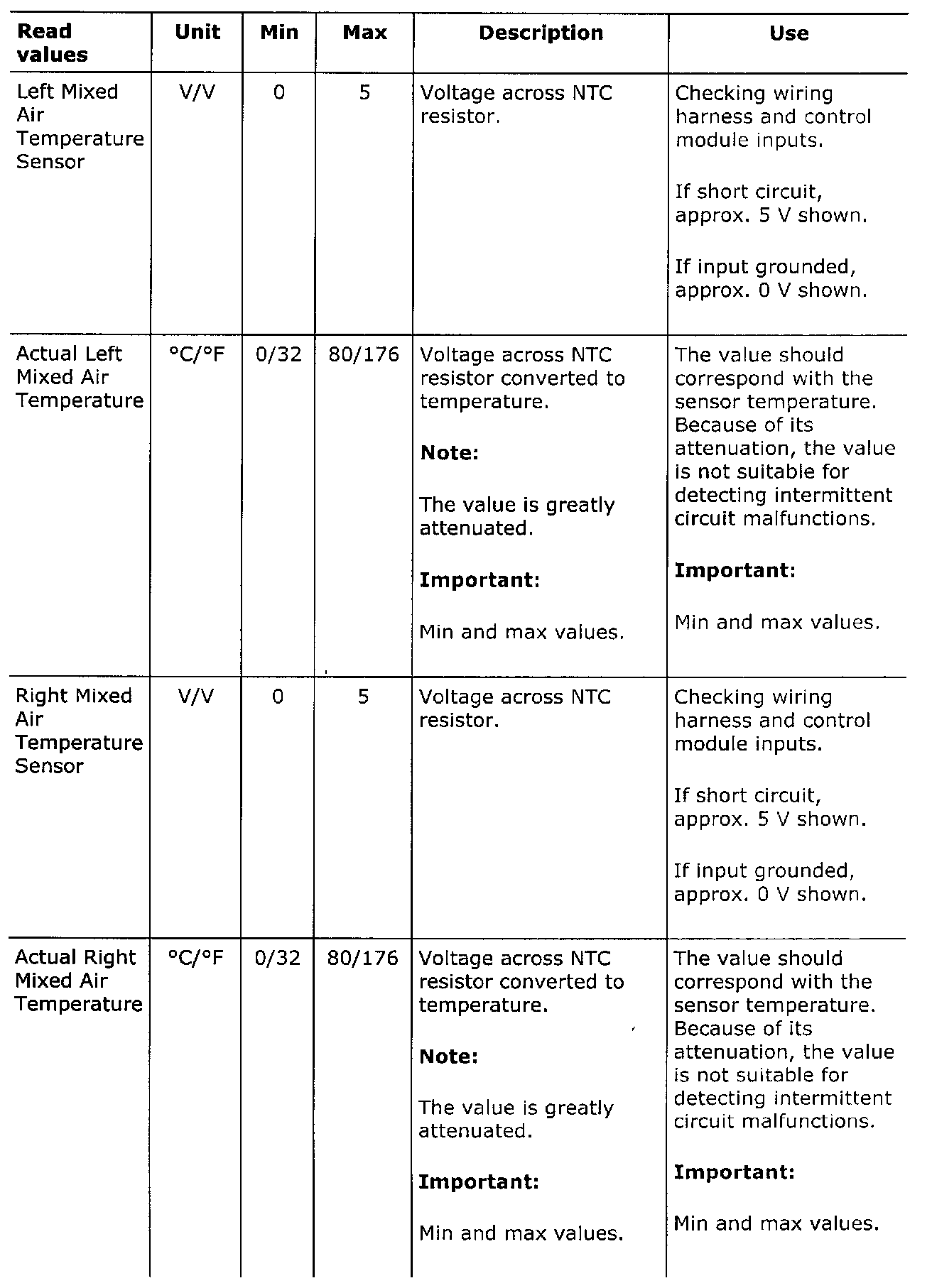

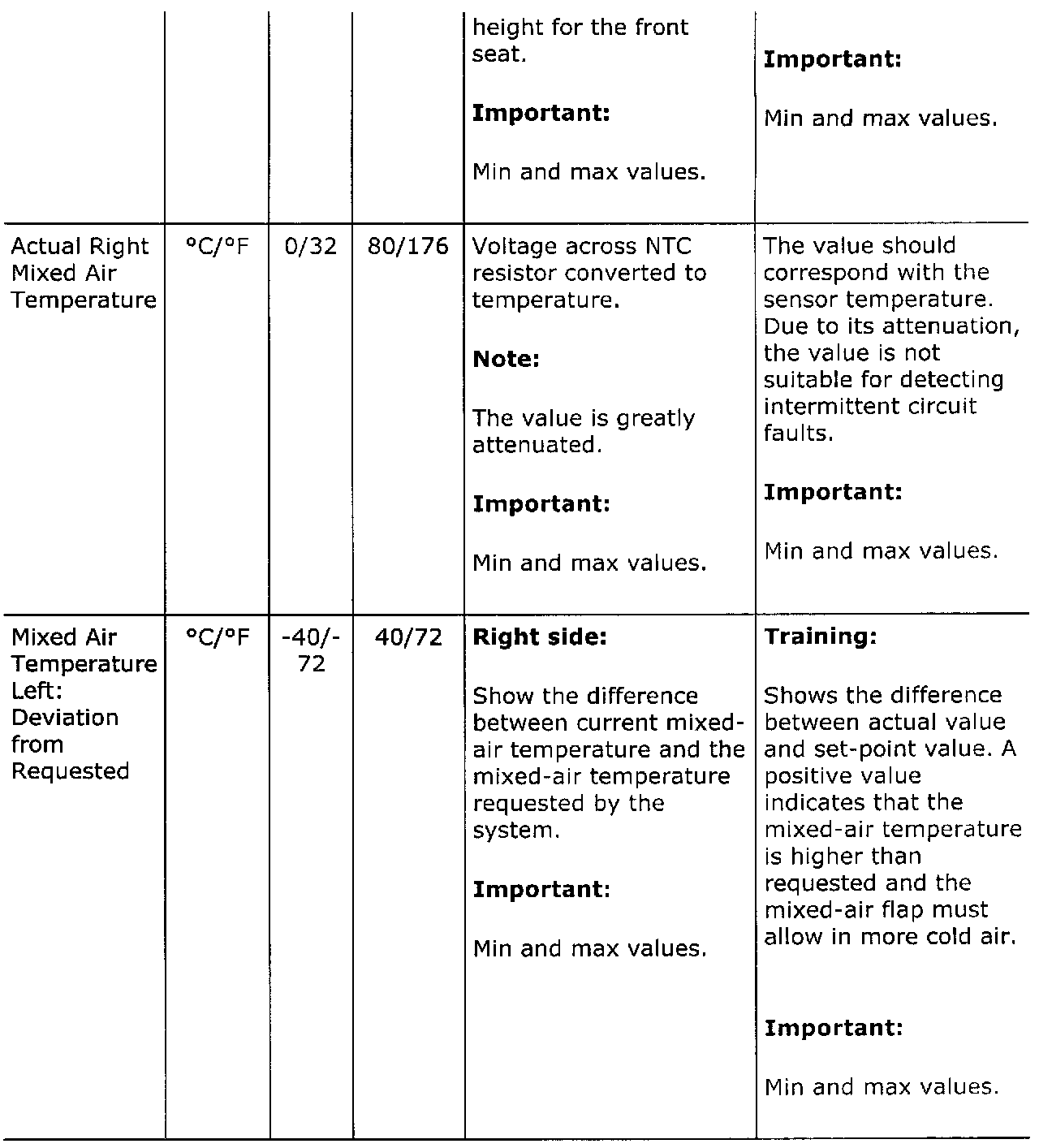

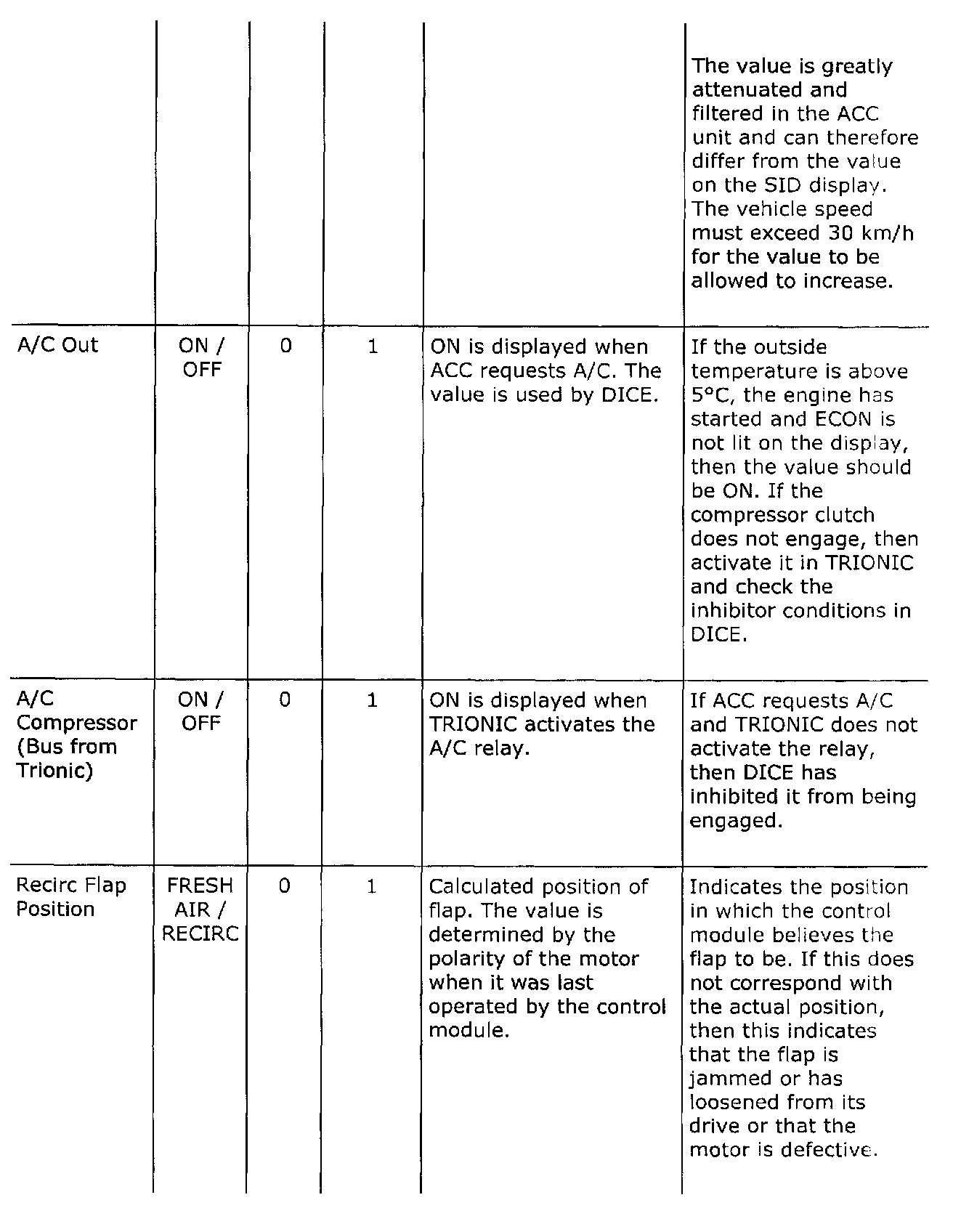

Menu "Read Values"

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

Part 10:

Part 11:

Part 12:

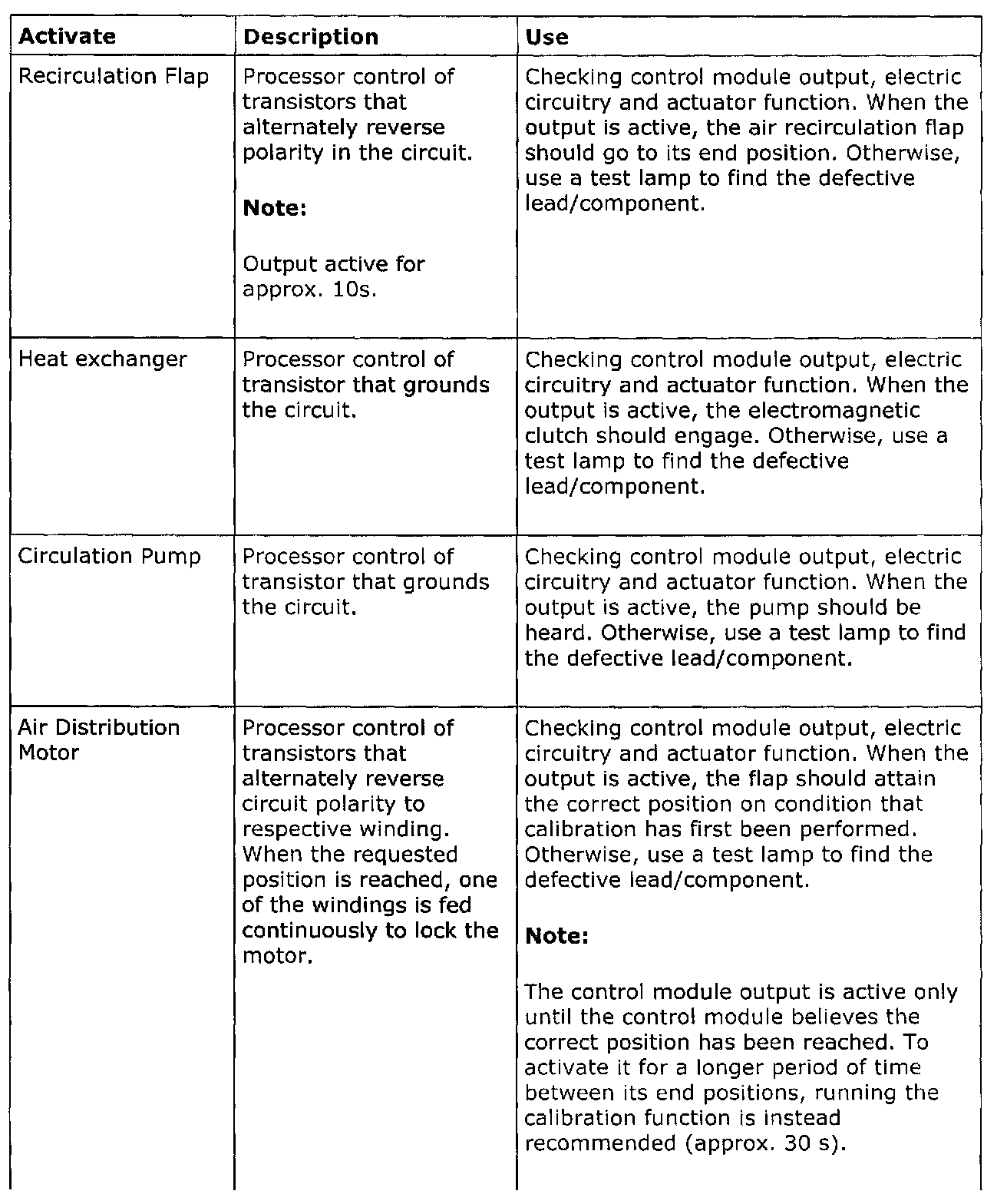

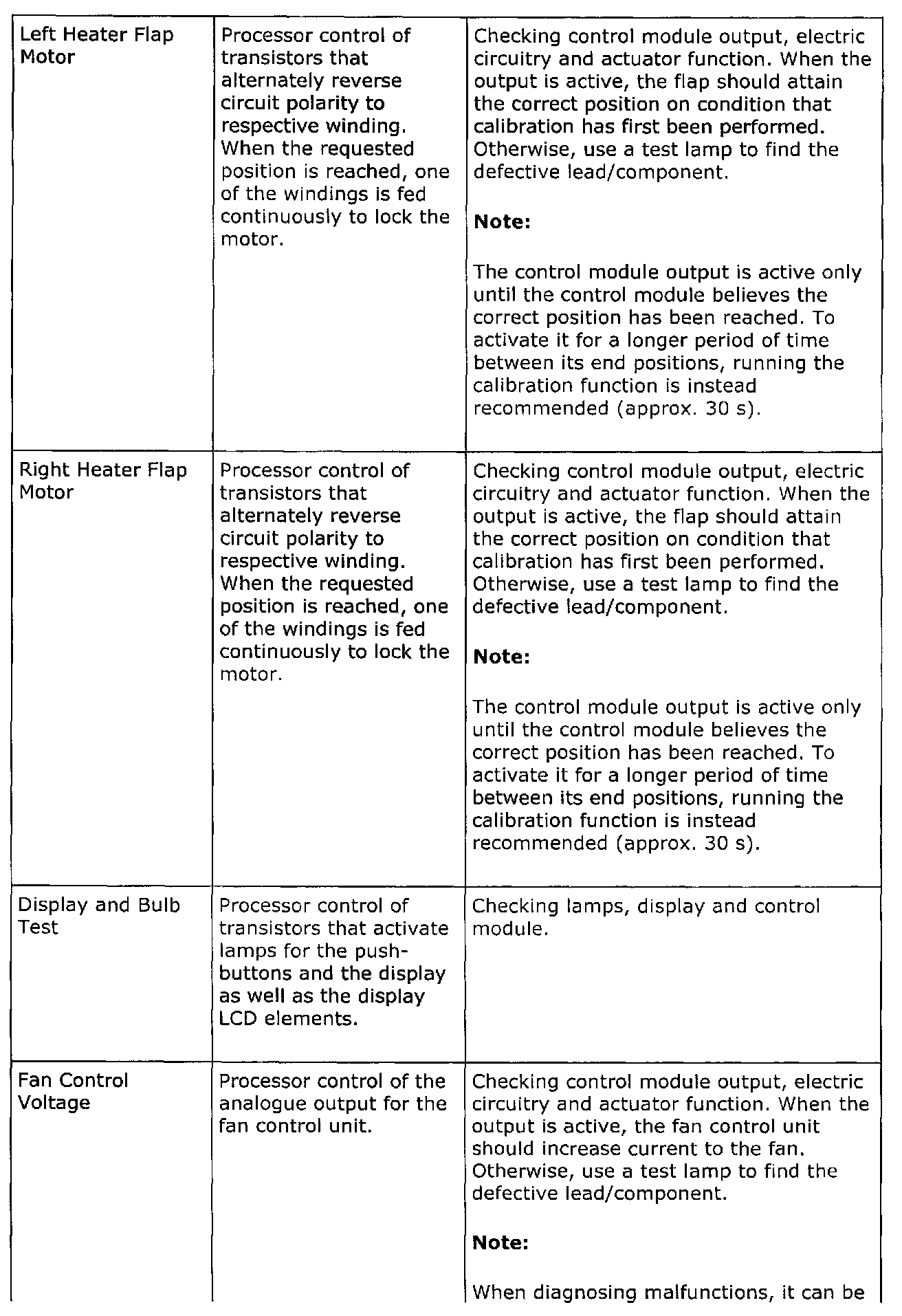

Menu "Activate"

Part 1:

Part 2:

Part 3:

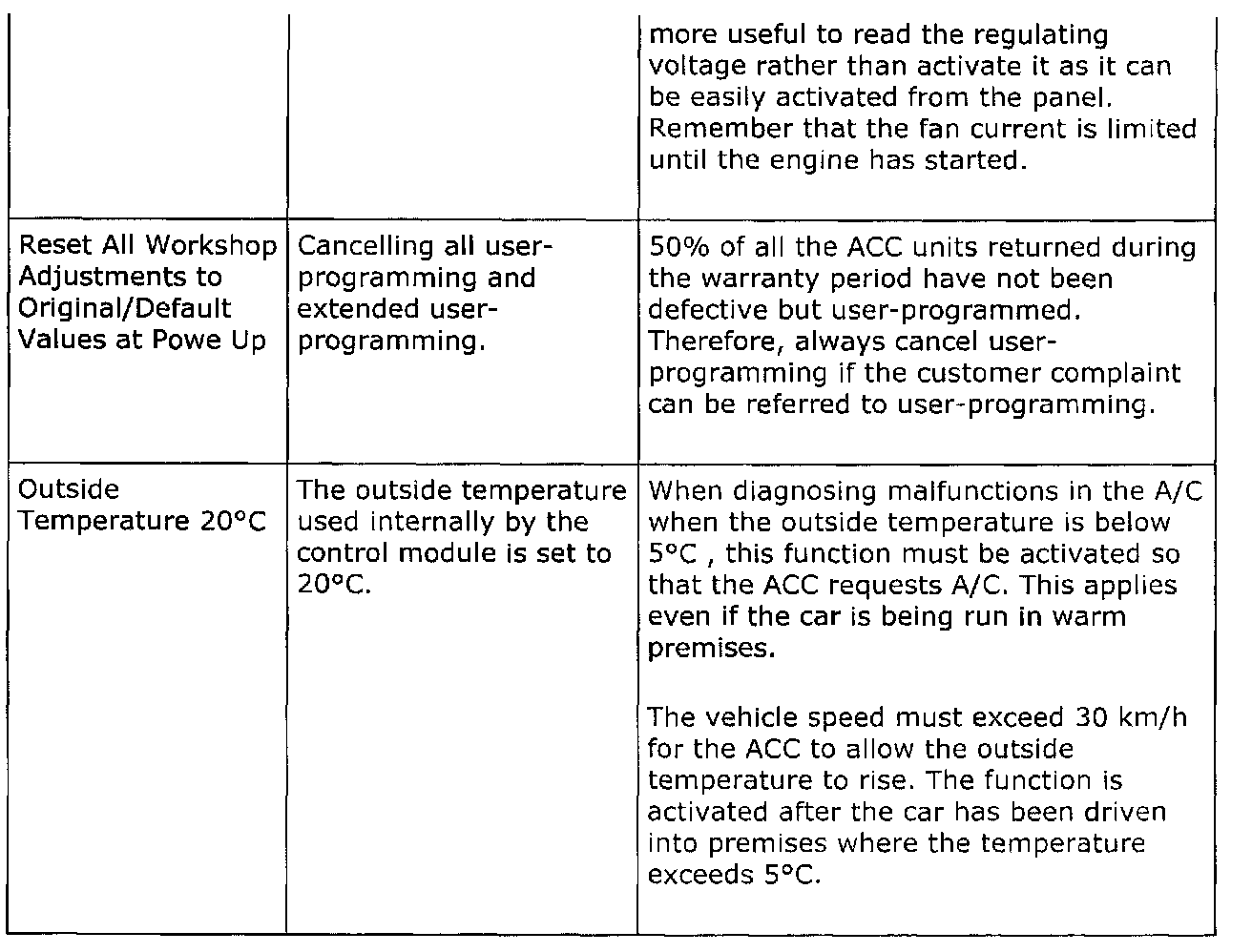

Menu "Adjustment"

Part 1:

Part 2:

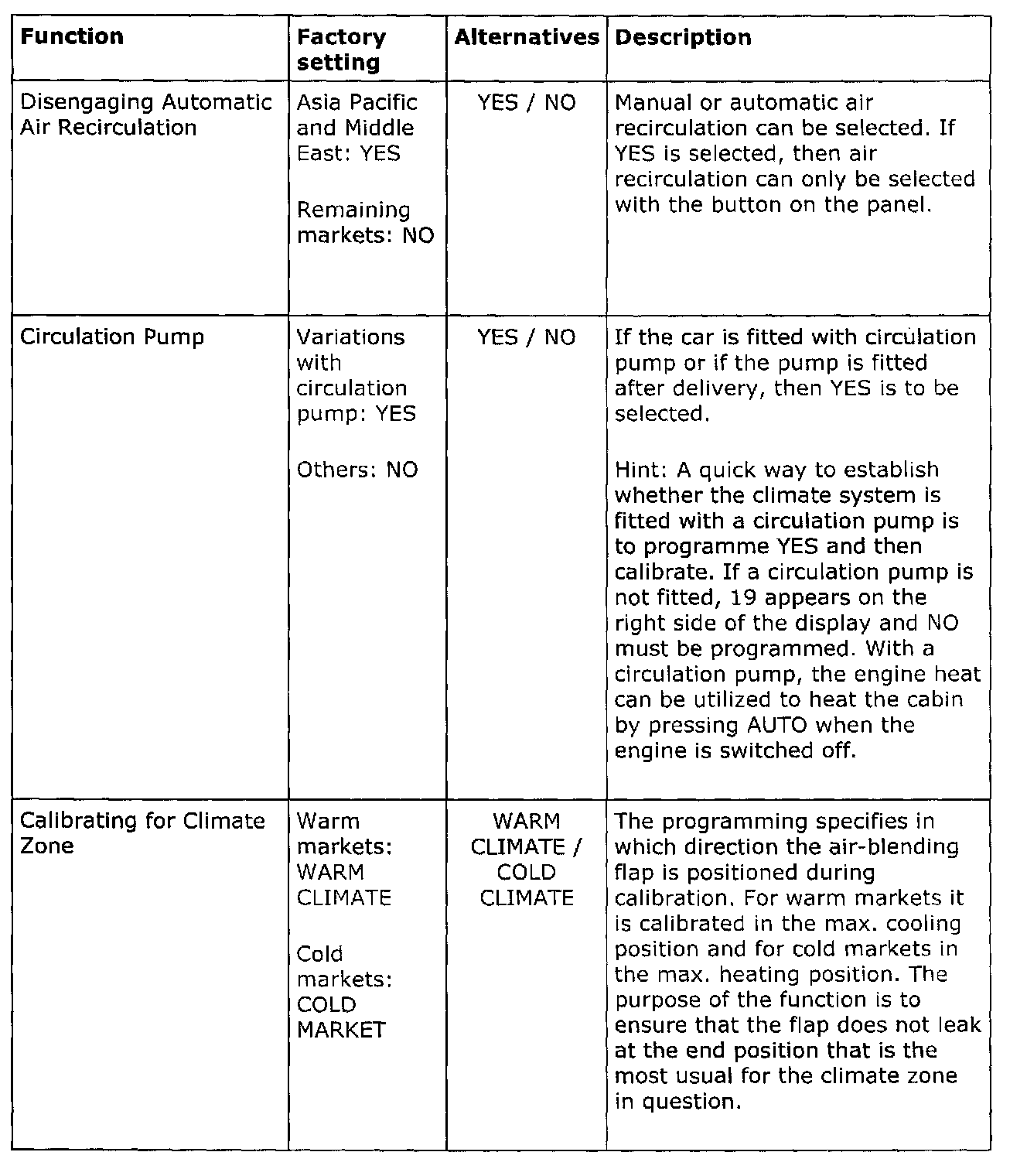

Menu "Programming"







Menu "System Information"

Text message Function

Part Number Displays the SAAB' part number for the control module
Hardware Version Number: Displays the supplier's part number for the control module
Software Version Number Displays the supplier's part number for the software
