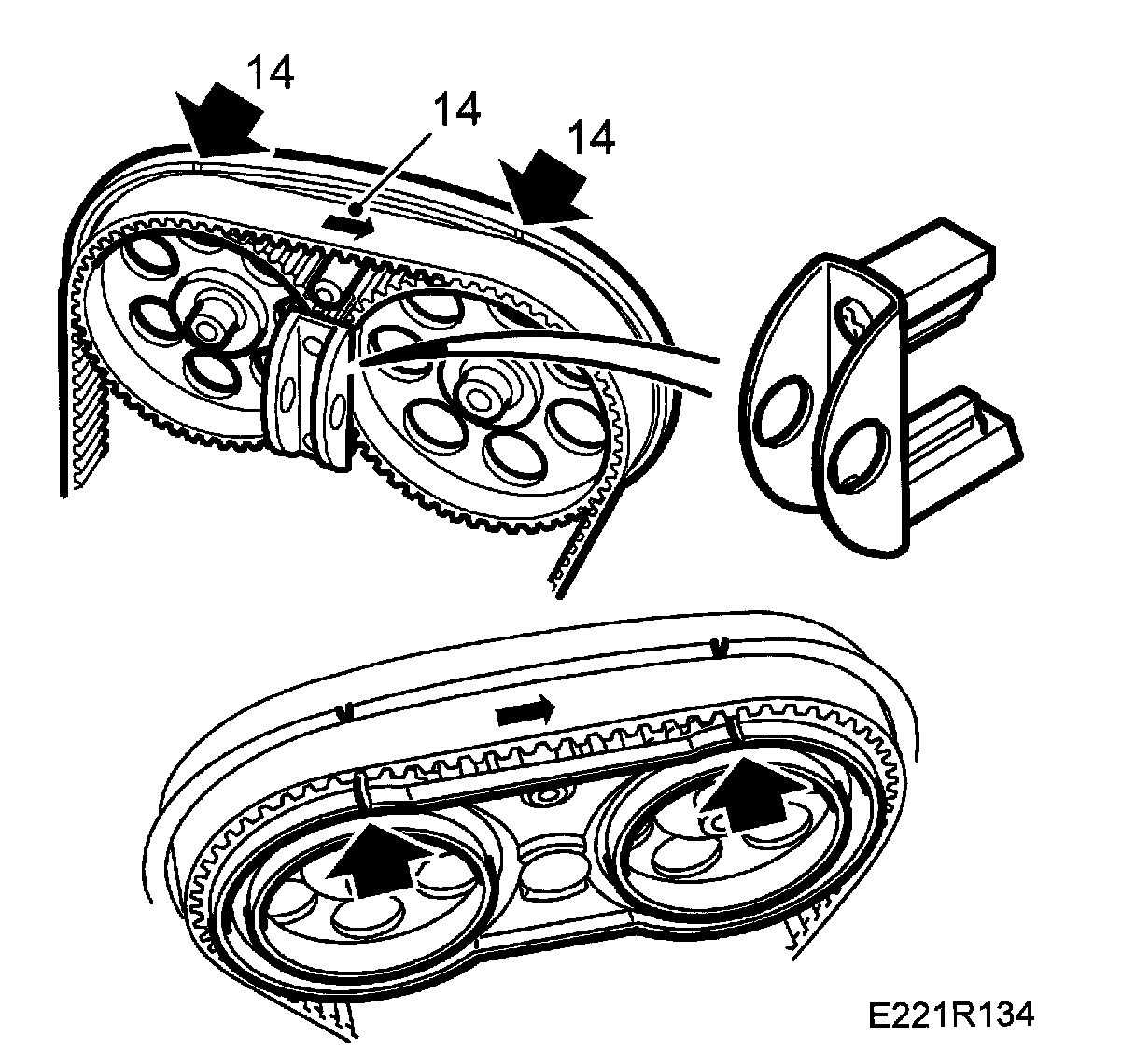

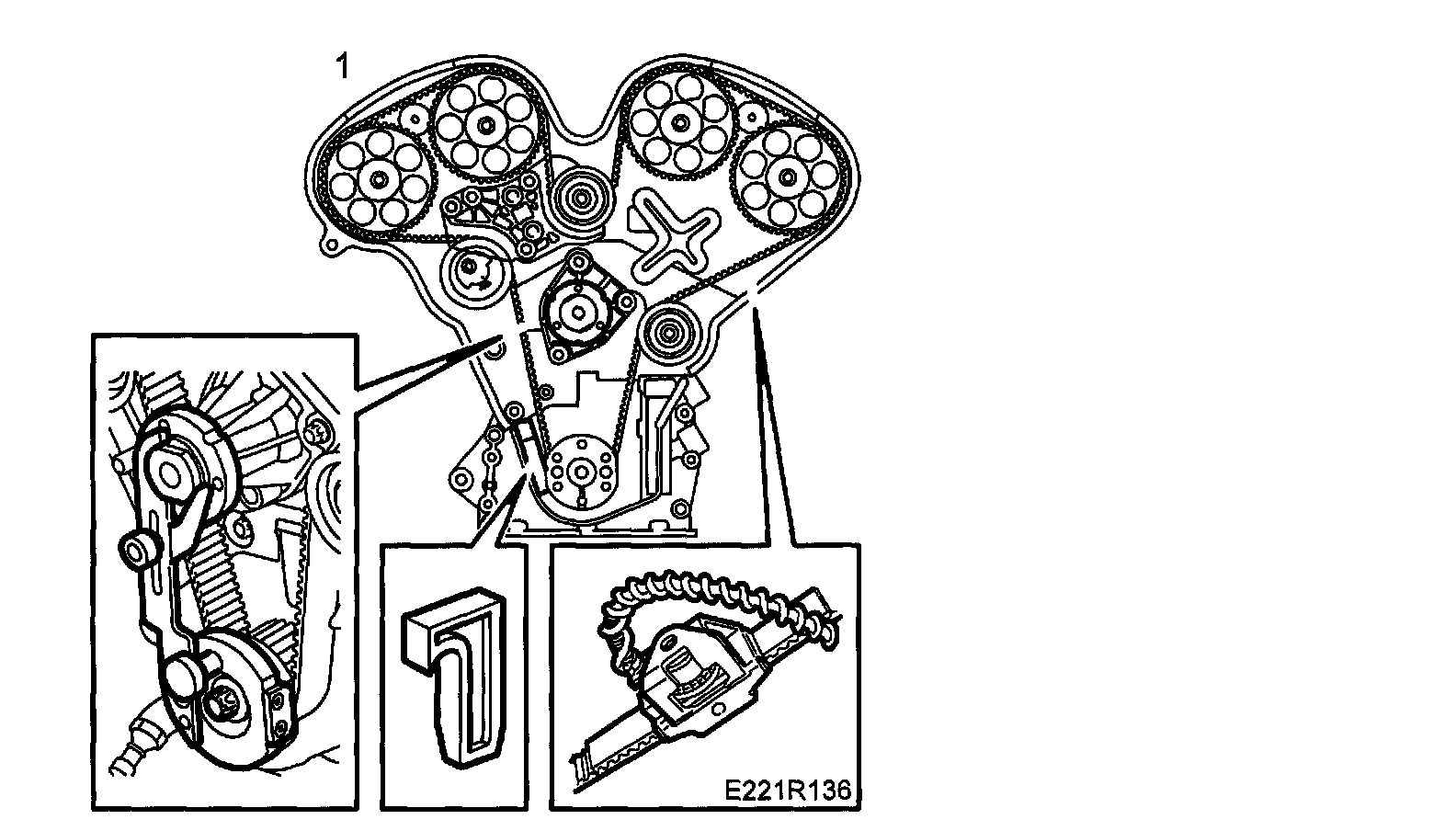

Timing Component Alignment Marks: Locations

Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components. This procedure requires special alignment tools.

For complete Timing Belt Removal and Installation information : Service and Repair
