Valve Guide: Service and Repair
Valve guides
The
valve guides
cannot be changed but must be reamed to oversize and the valve then has to be changed for one of corresponding size.

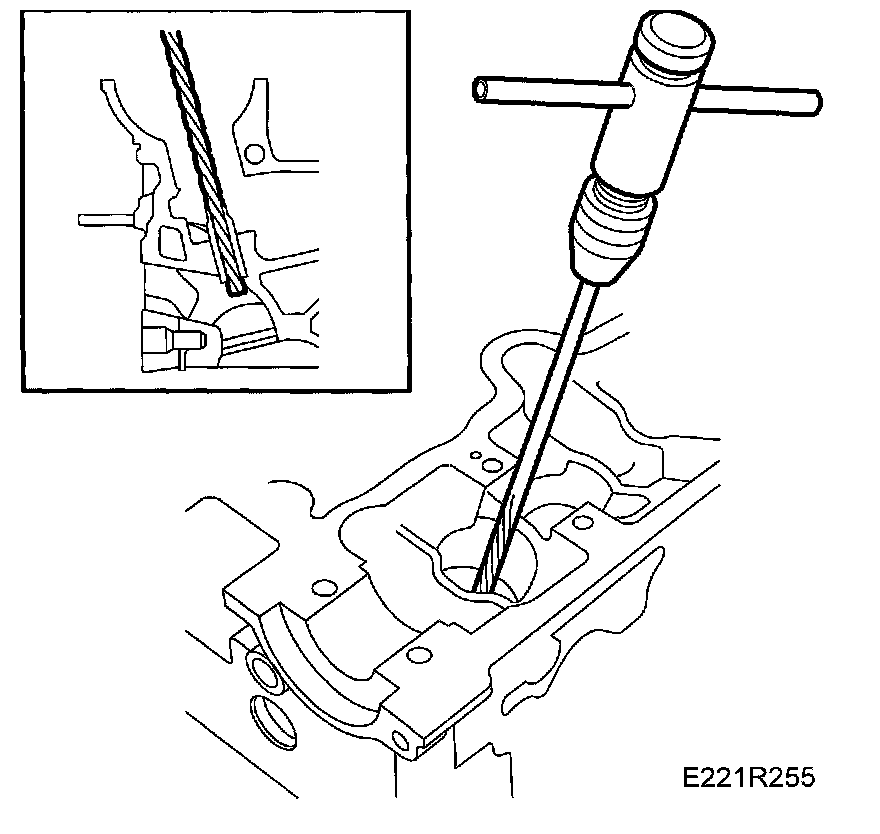

Use
valve guide
reamer, part No. 83 95 089.
