Cylinder Head Assembly: Testing and Inspection

Cylinder head flatness, to check





1. Clean the cylinder head sealing surfaces.

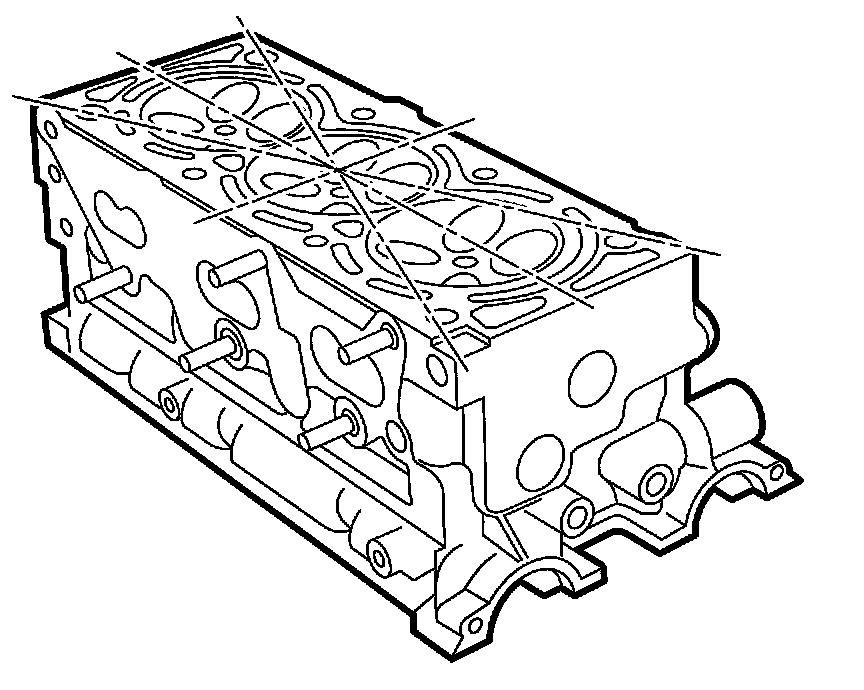

2. Using a straight-edge and feeler gauge, measure the cylinder head diagonally from corner to corner, as well as lengthwise and crosswise, to check for warping.
