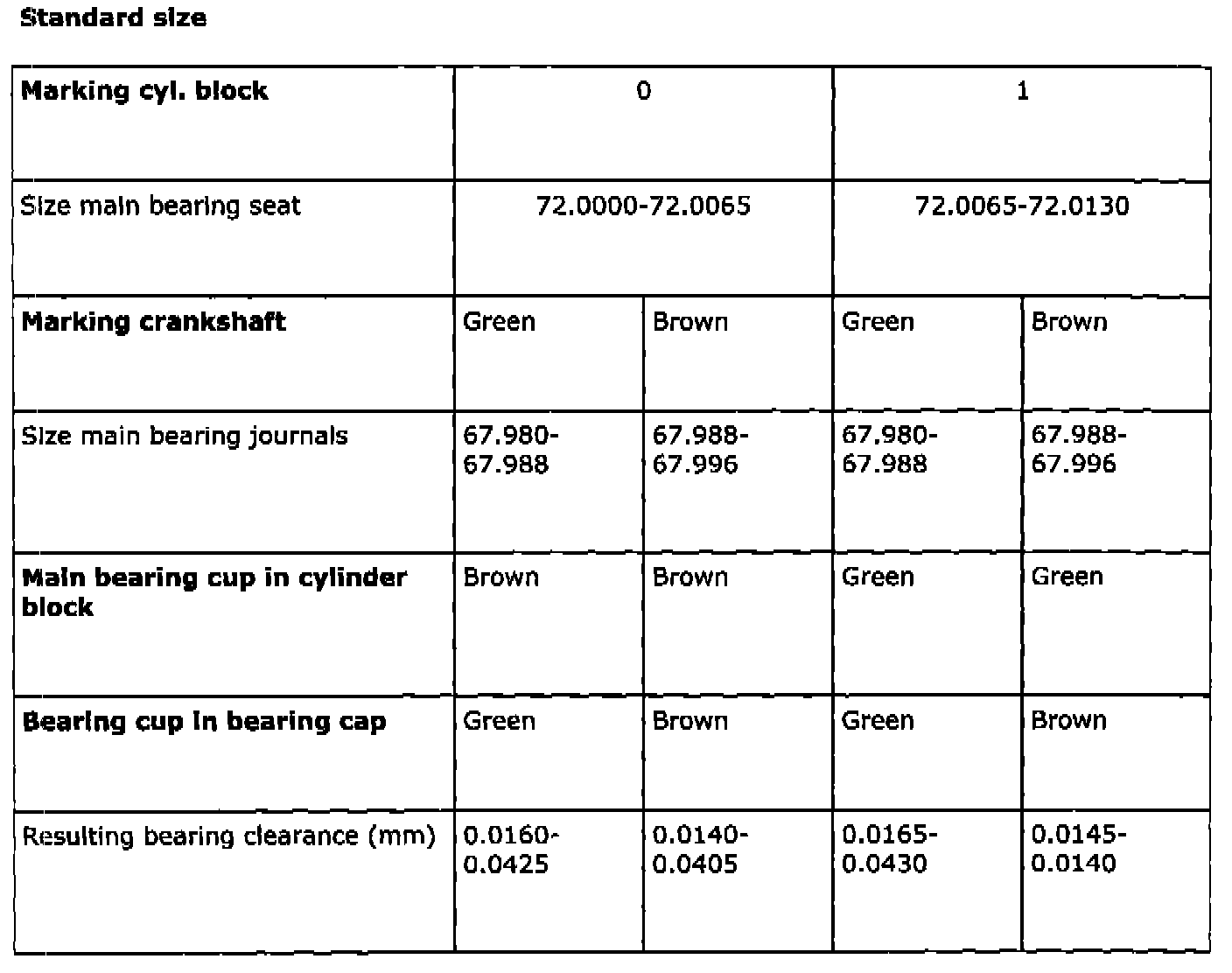

Standard Size












Standard Size

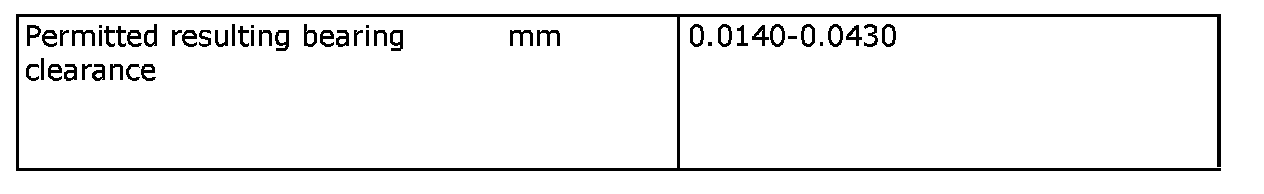

Warning: Always measure the bearing clearance before assembling

Important: The main bearing halves in bearing caps 2 and 3 have no oilway.
