Home >> Saab >> 2003 >> 9-5 (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Crimps (Splices) >> Crimp Connection J175, Instrument Network

Crimp Connection J175, Instrument Network

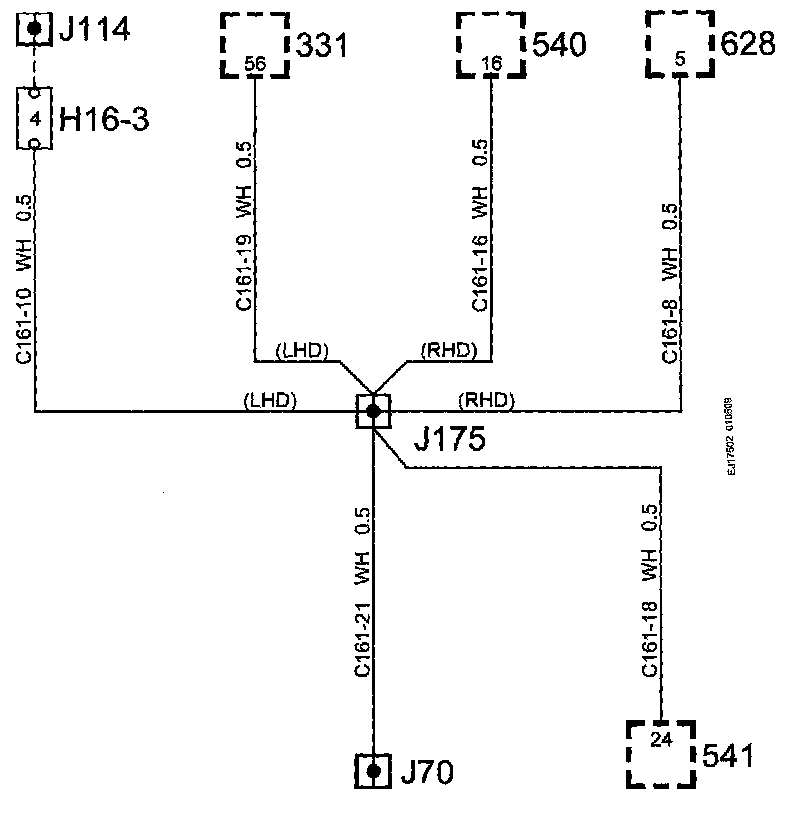

Crimp J175, Instrument Network:
