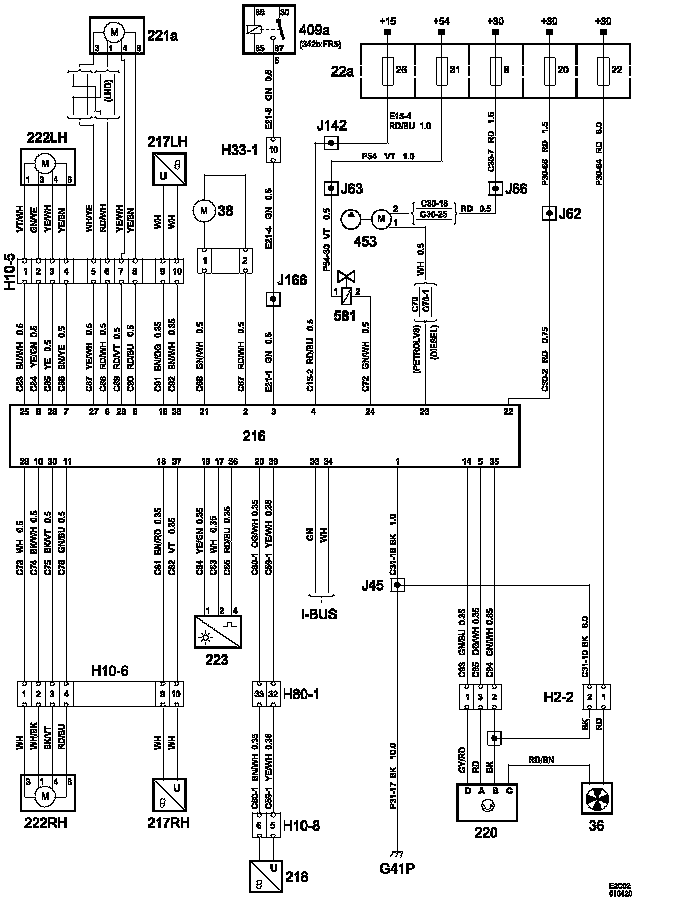

Automatic Climate Control (ACC)

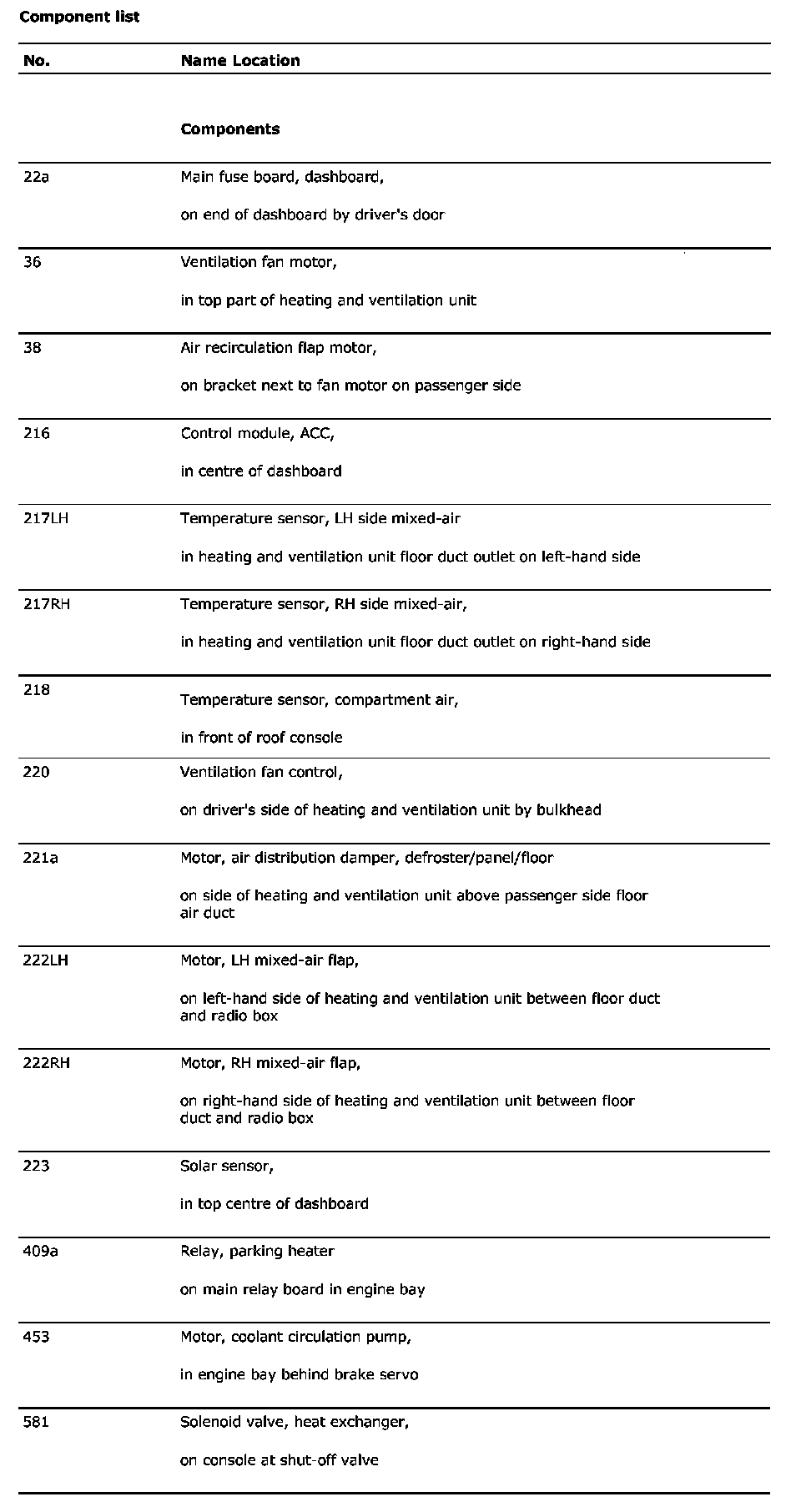

Component List (Part 1):

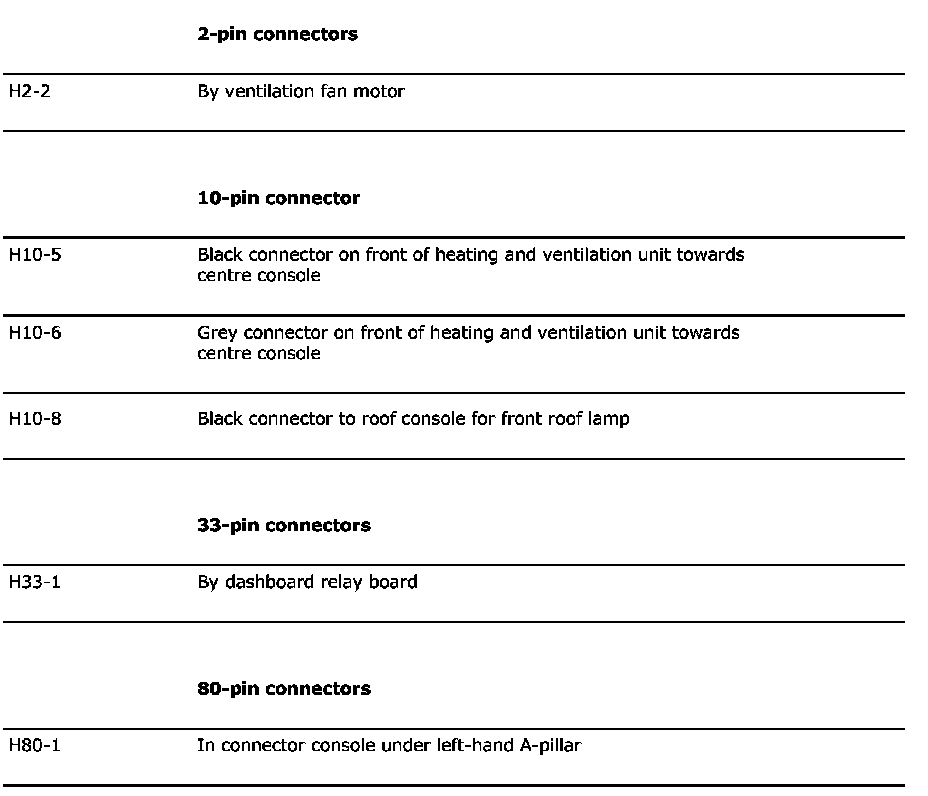

Component List (Part 2):

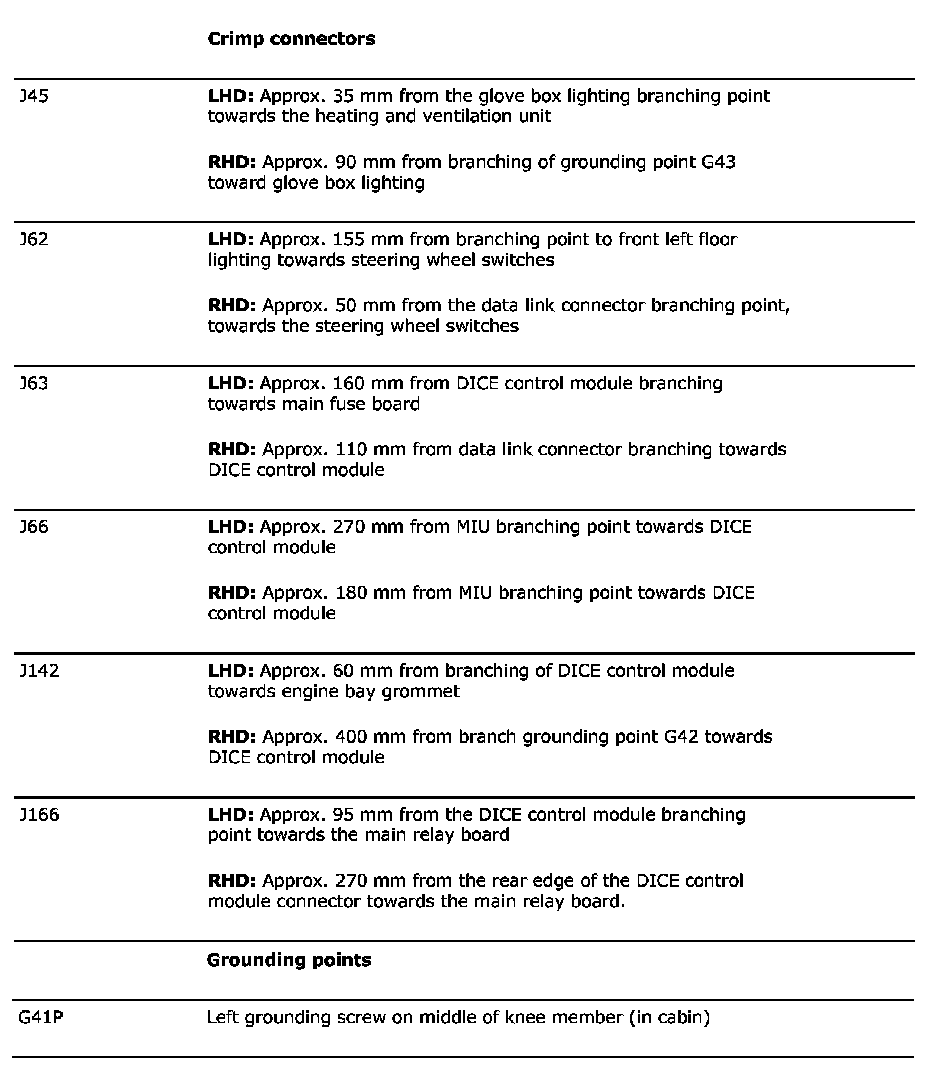

Component List (Part 3):
