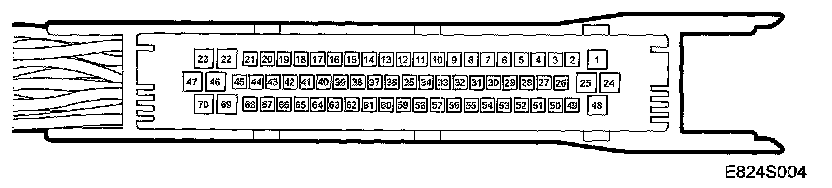

Control Module Pinout Values

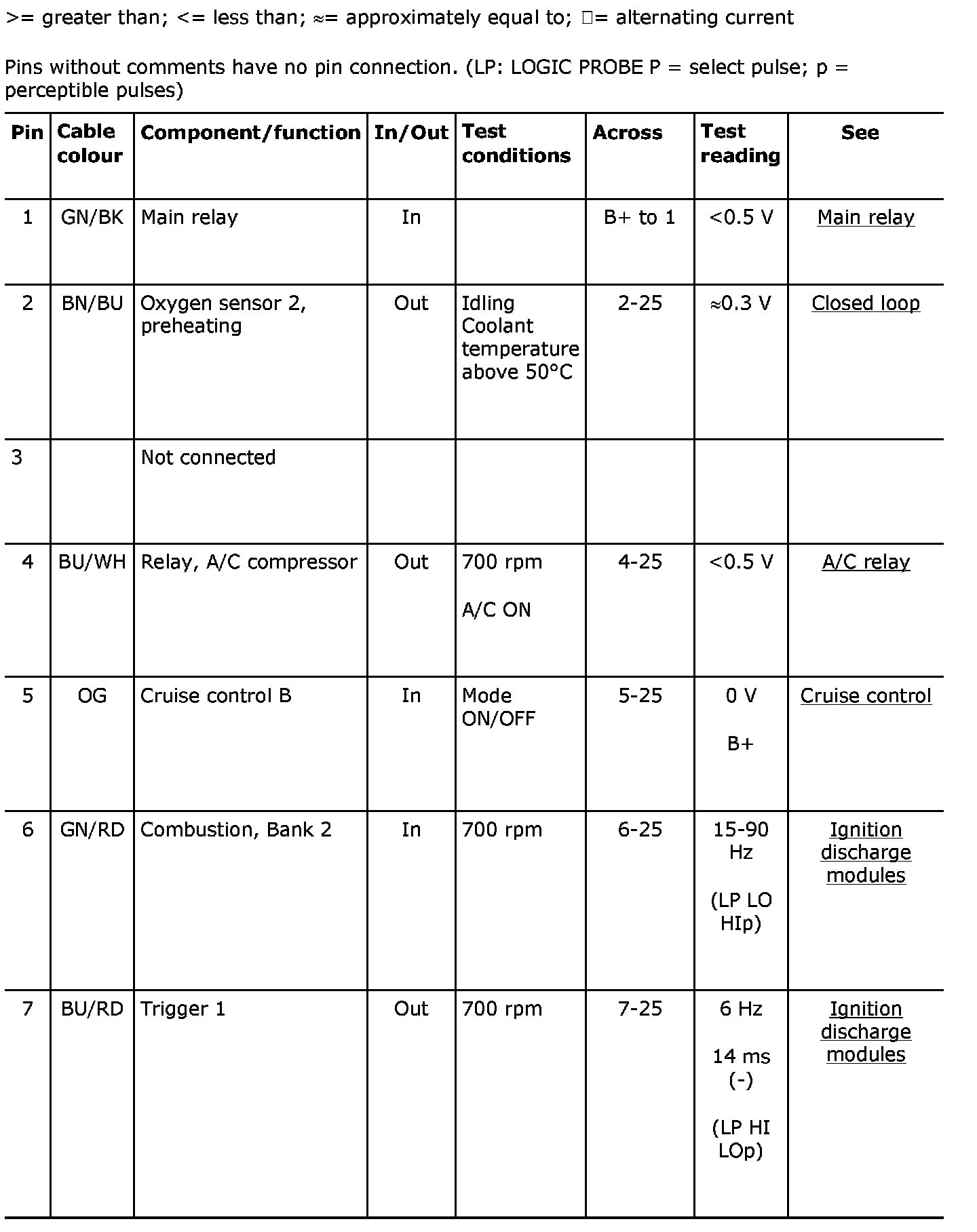

Pin No. 1-7:

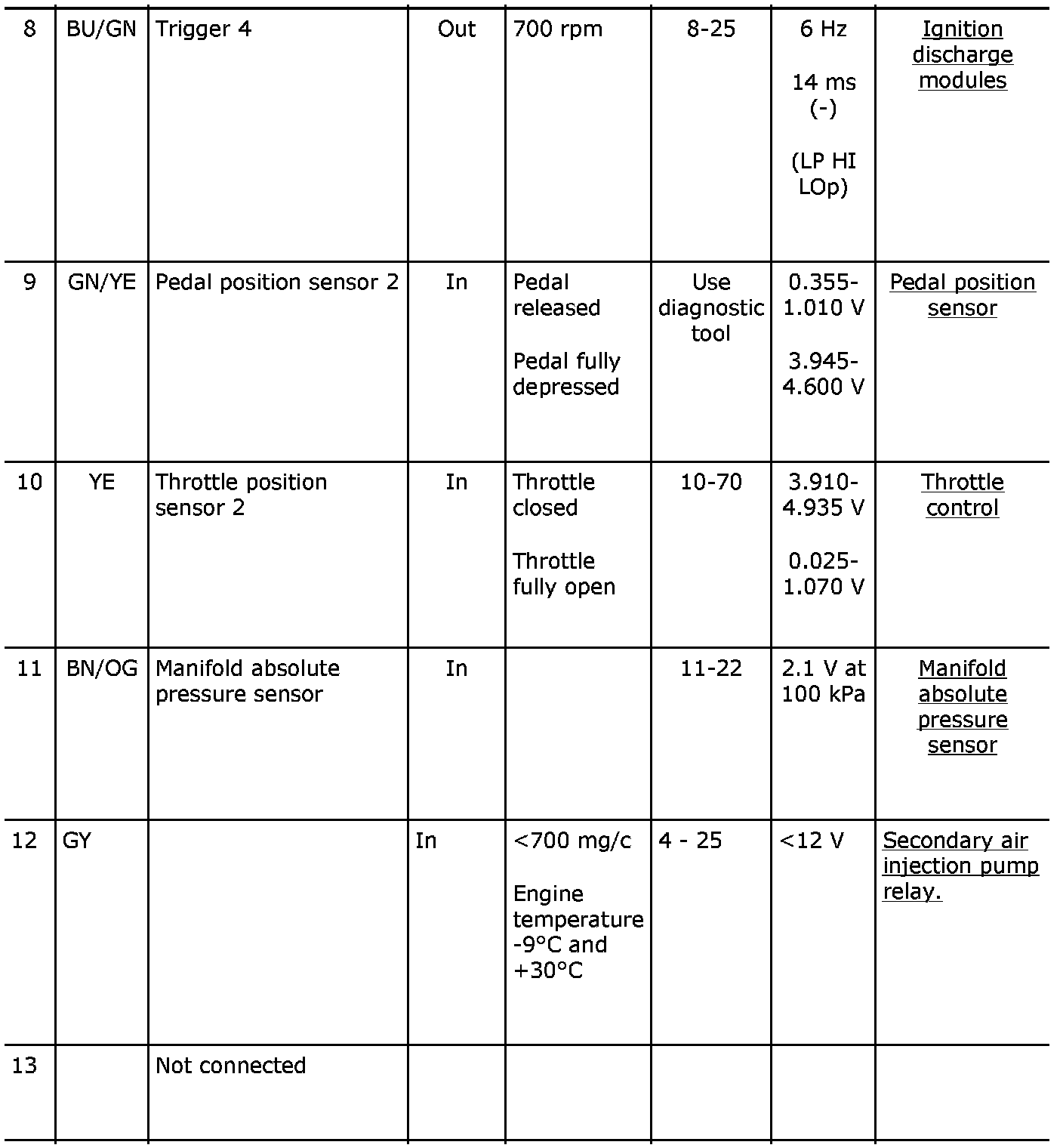

Pin No. 8-13:

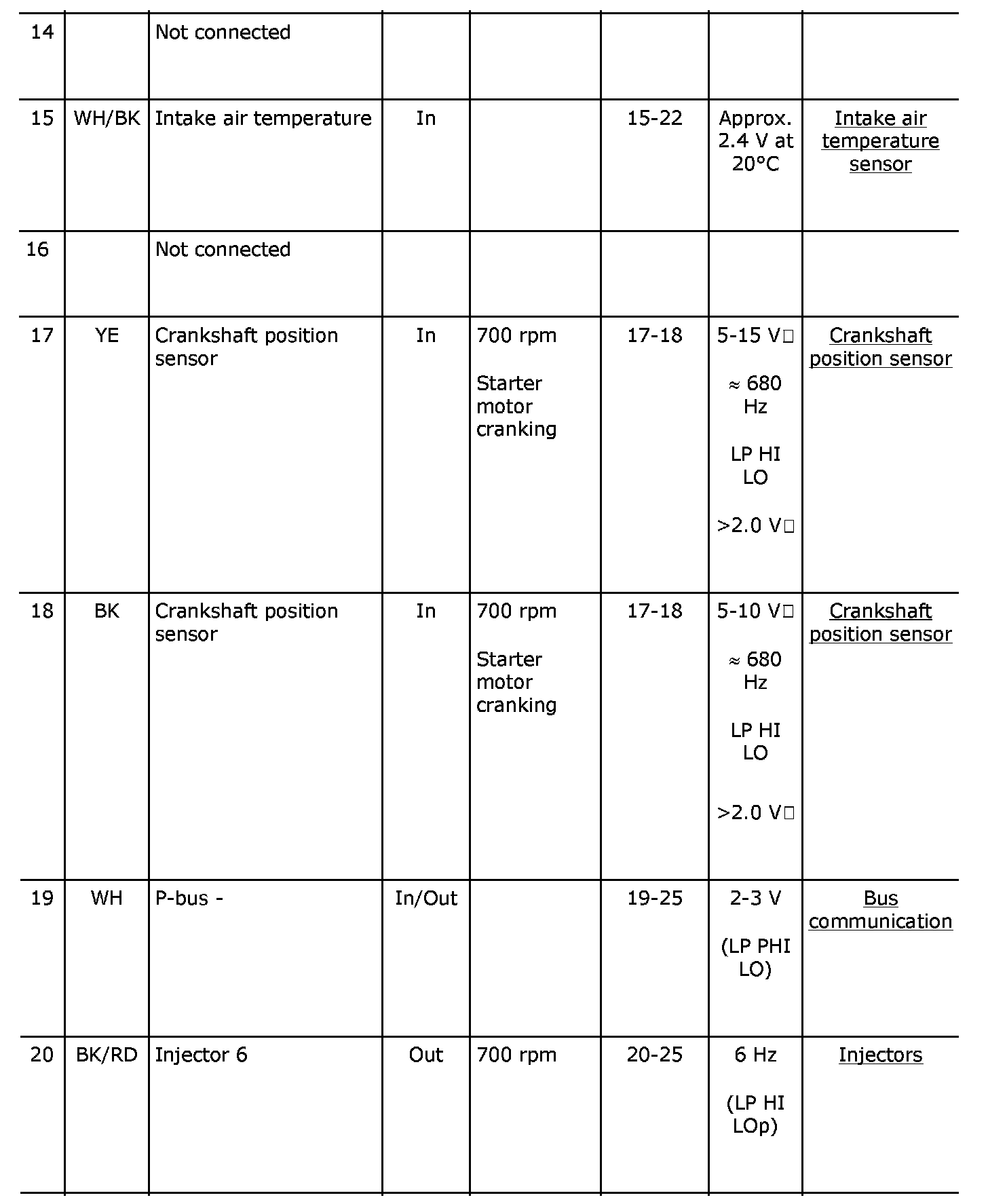

Pin No. 14-20:

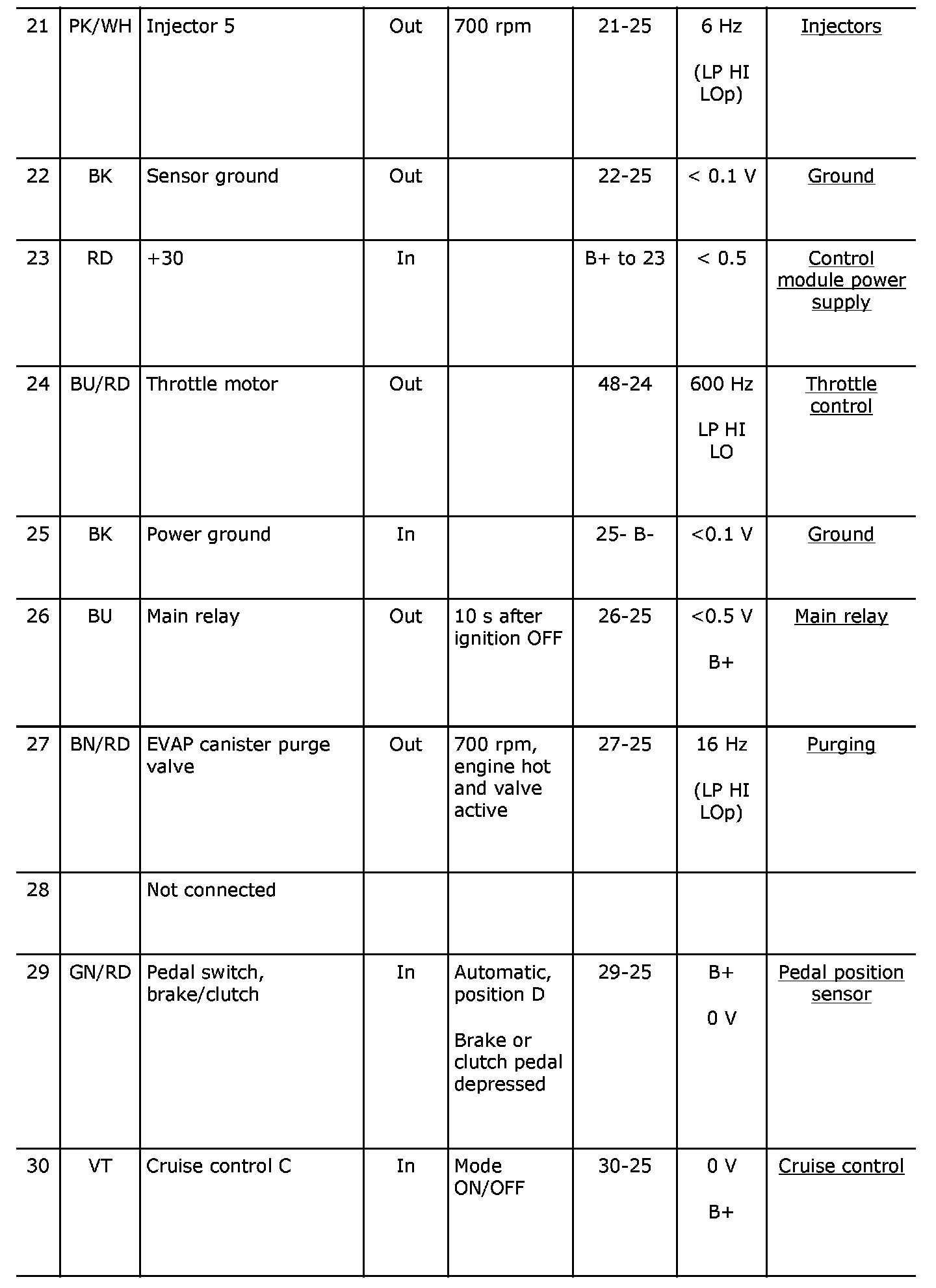

Pin No. 21-30:

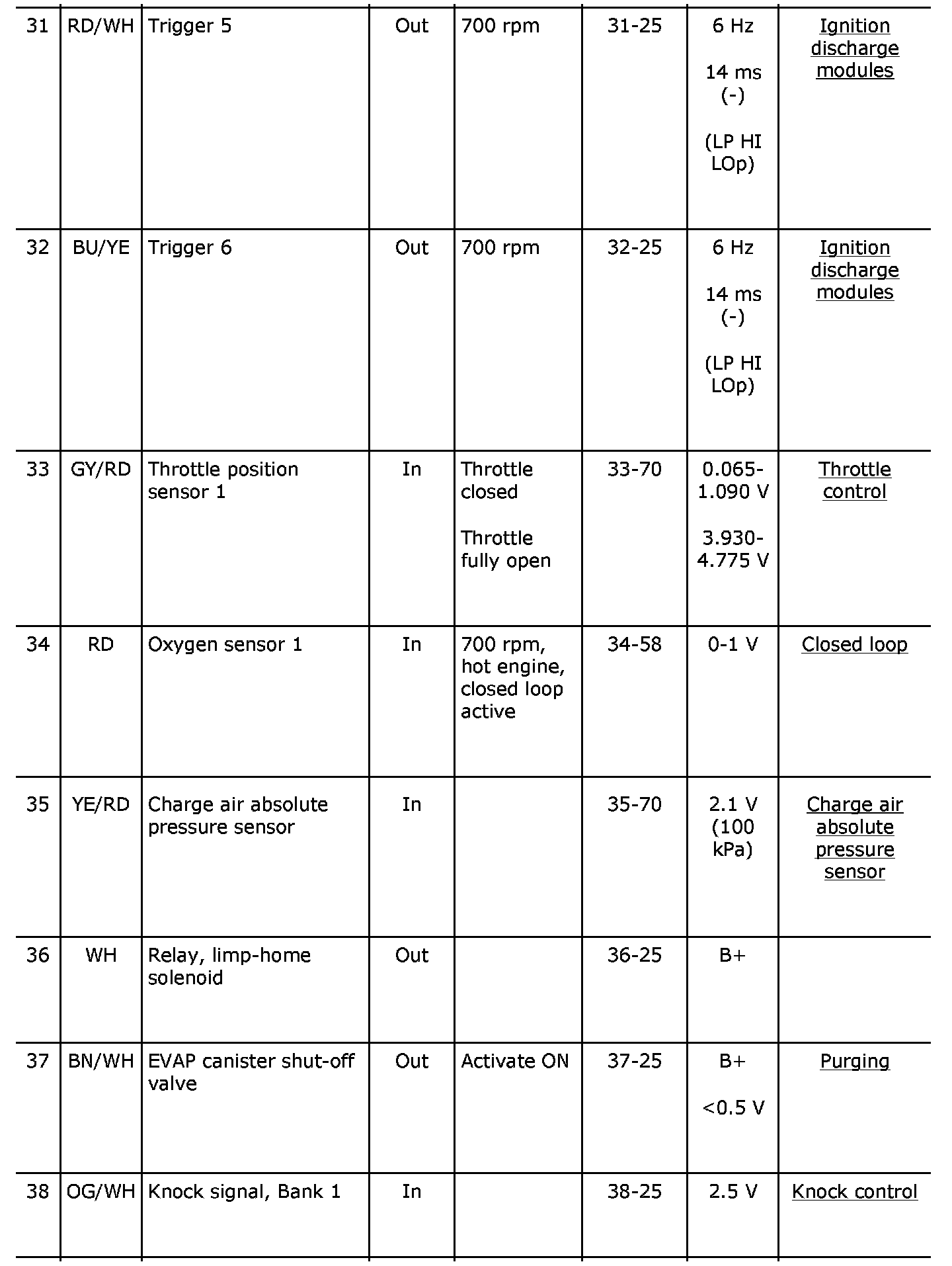

Pin No. 31-38:

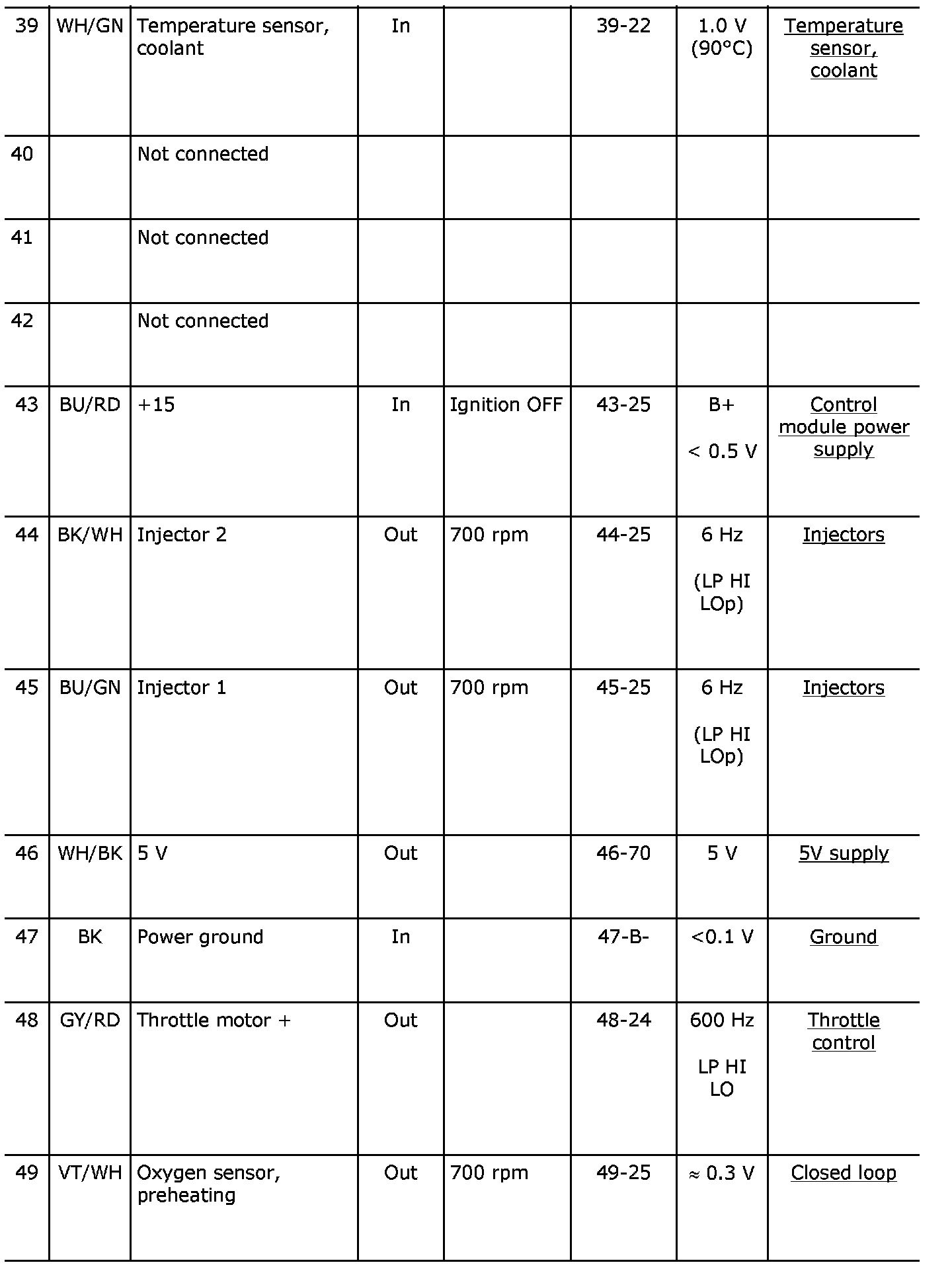

Pin No. 39-49:

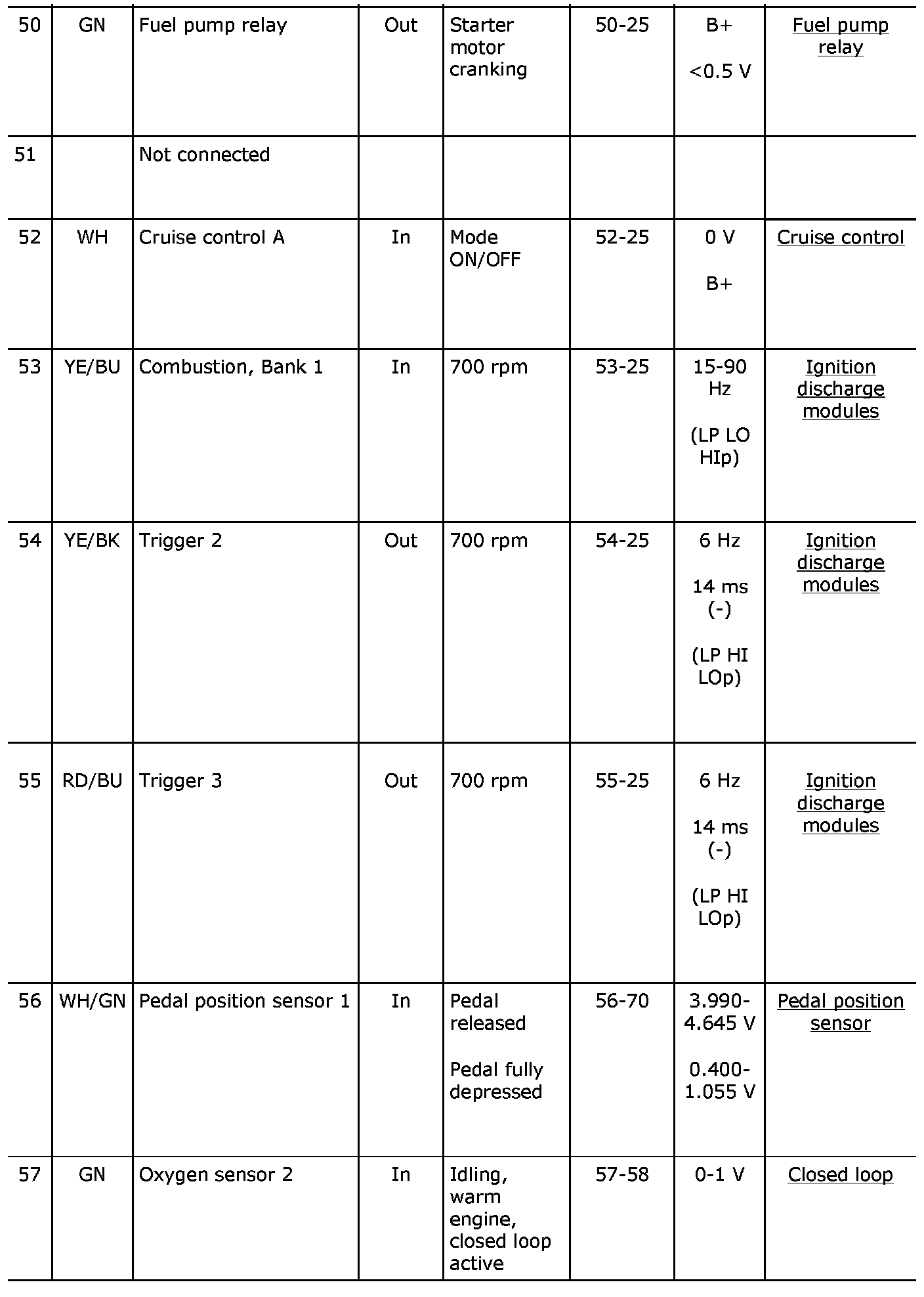

Pin No. 50-57:

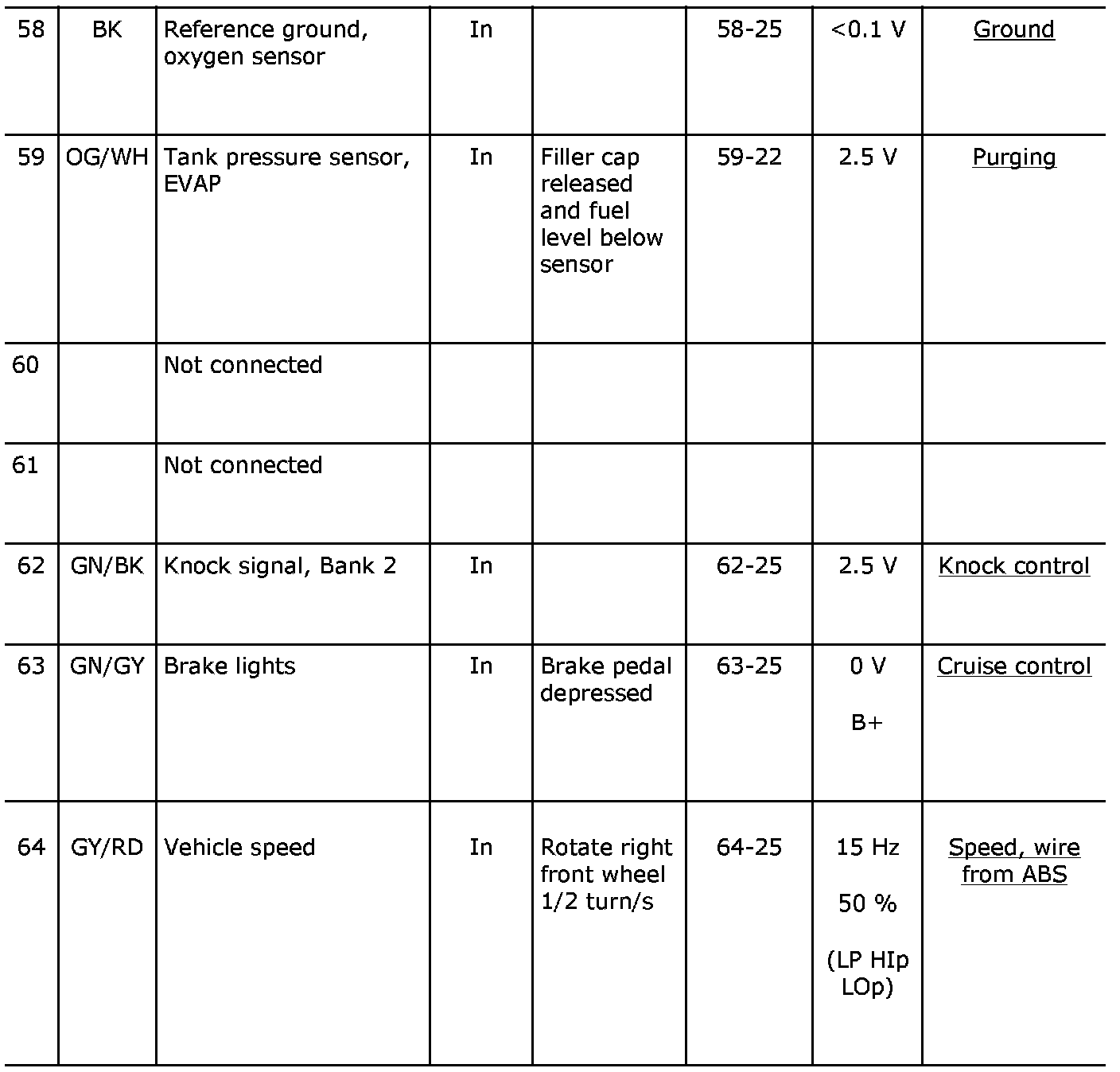

Pin No. 58-64:

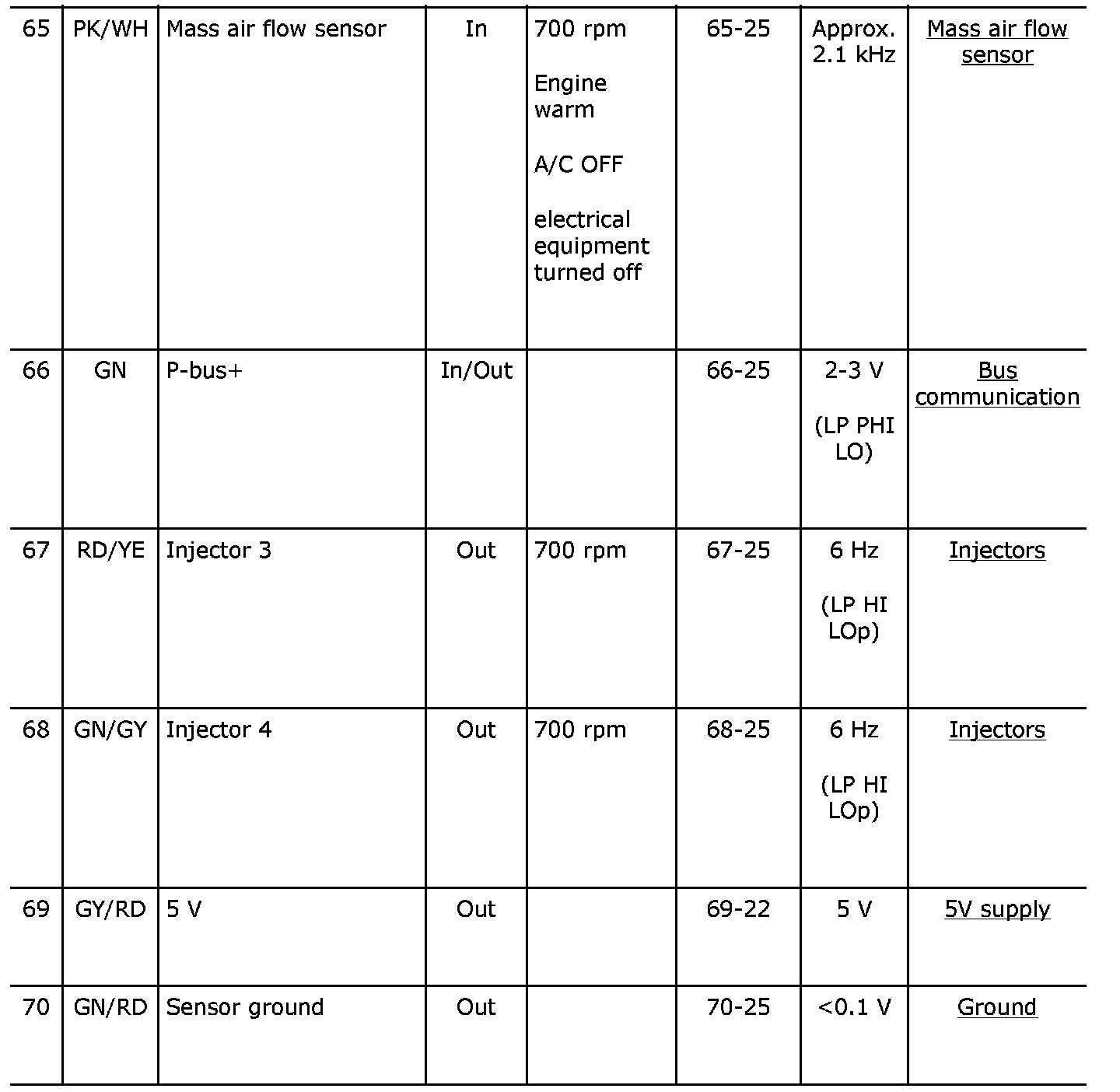

Pin No. 65-70:
