Lower Grille

Lower Grille

To remove

1. Raise the car.
2. Remove the spoiler shield.

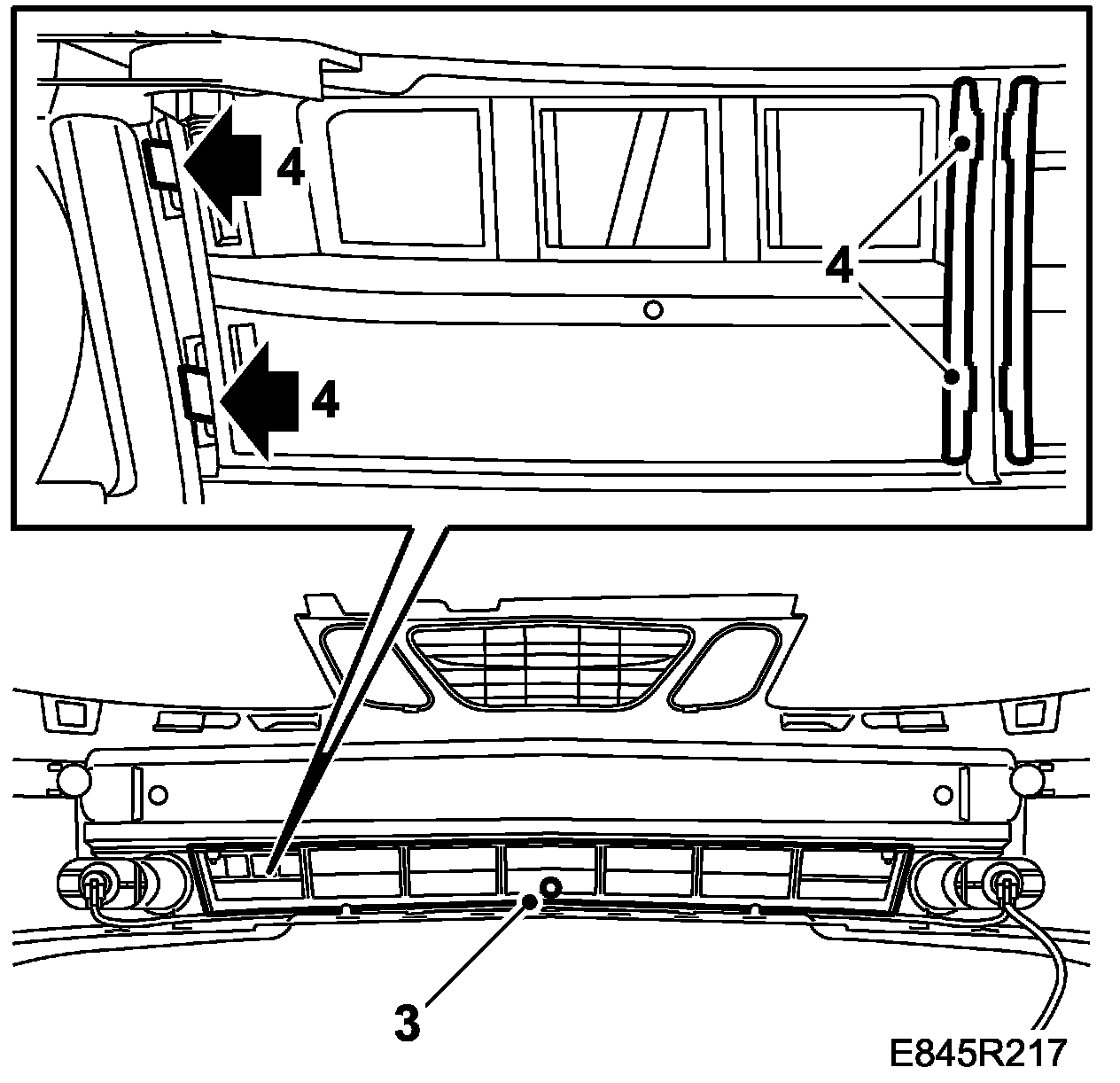

3. Detach the temperature sensor.







4. Begin by loosening the clips on one side by pressing them in with a screwdriver. Then continue with the other grille clips.
5. Carefully lift out the grille.

To fit

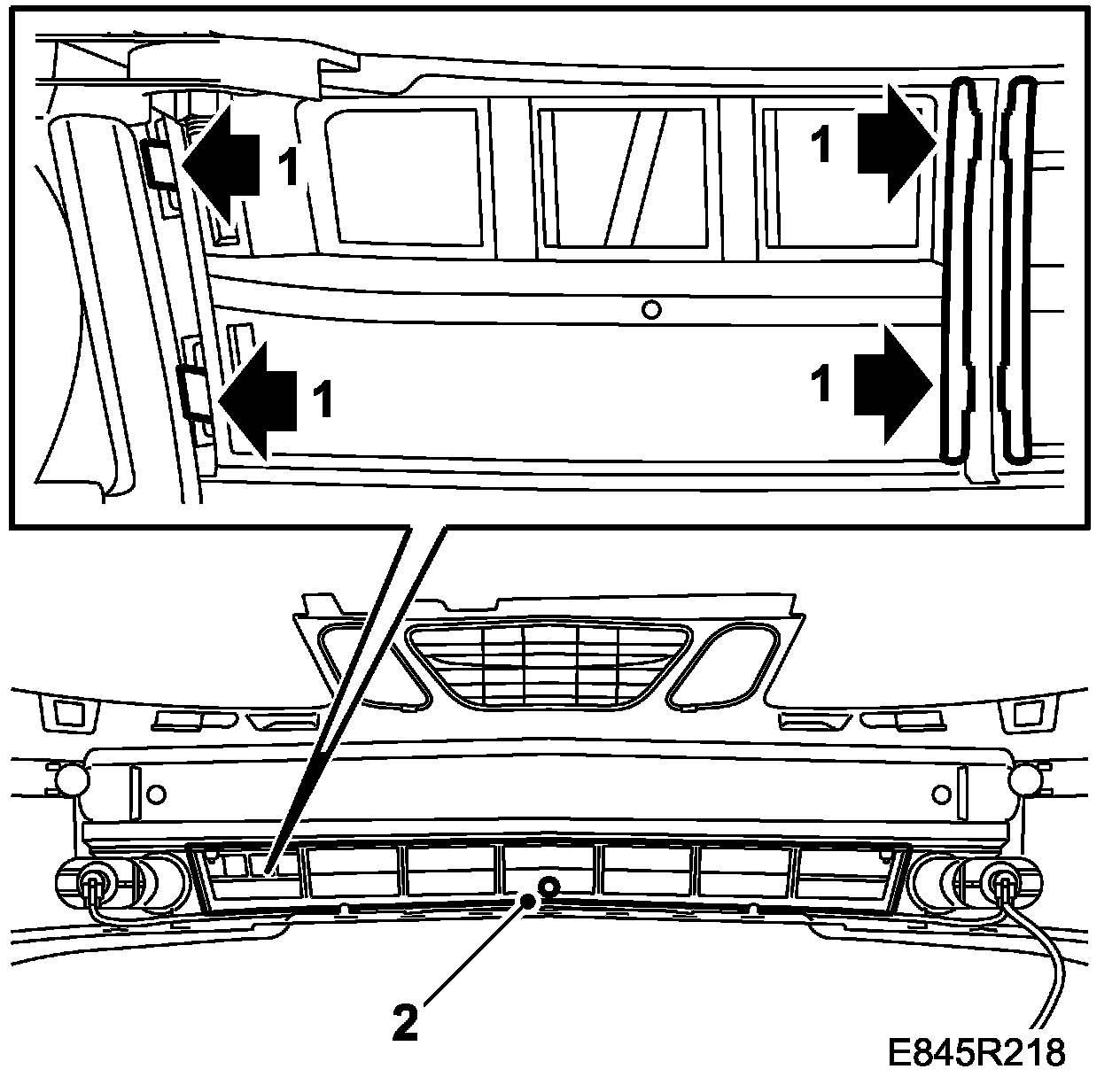

1. Press the grille back in place. Check that the clips sit correctly.







2. Fit the temperature sensor.
3. Fit the spoiler shield.







4. Lower the car to the floor.
