Centre and Side Grilles

Centre And Side Grilles

To remove

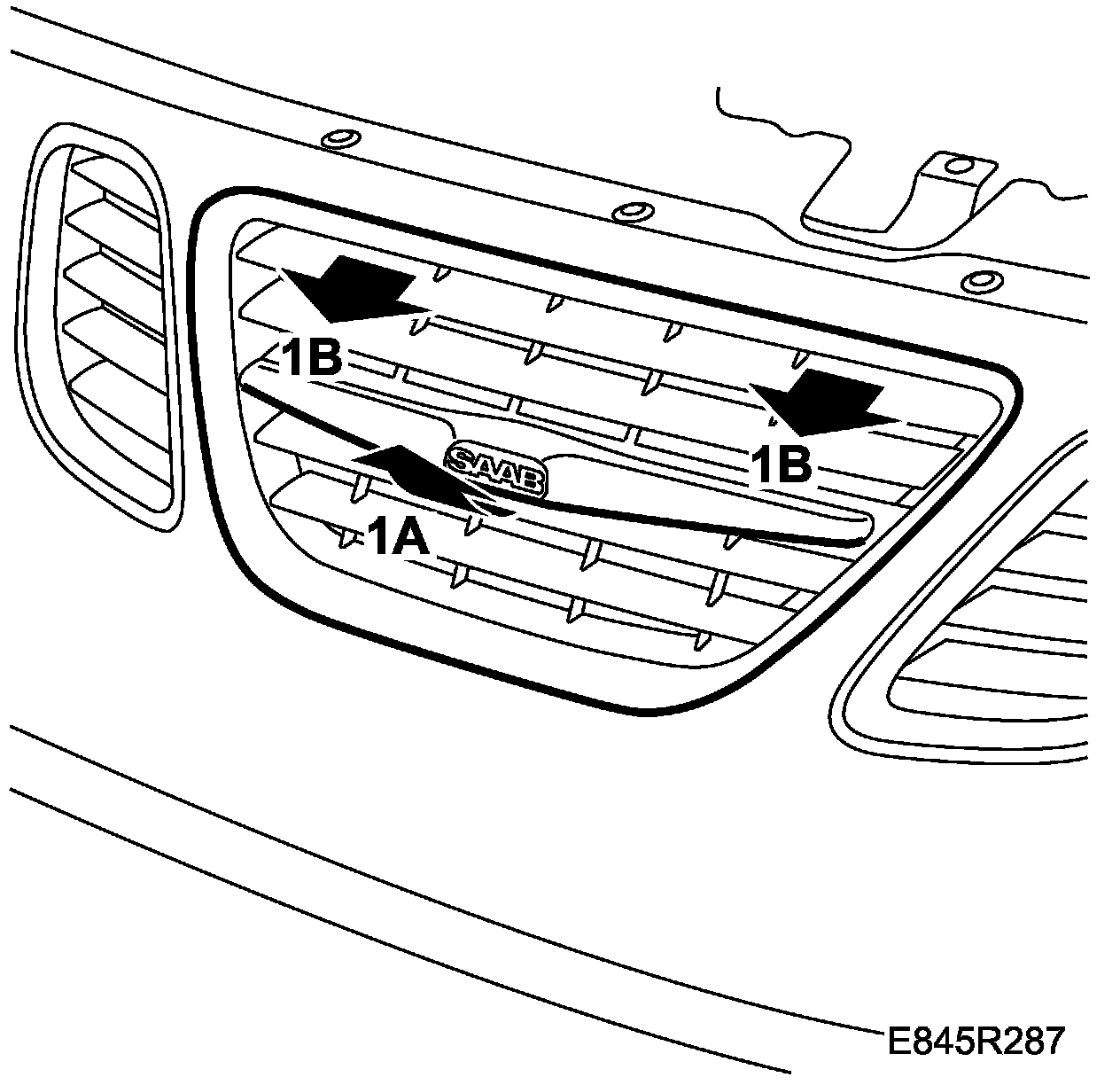

1. Remove the centre grille as follows:
1.A. Lift it slightly to loosen the bottom.
1.B. Pull it forward and down so that the spring clips loosen.

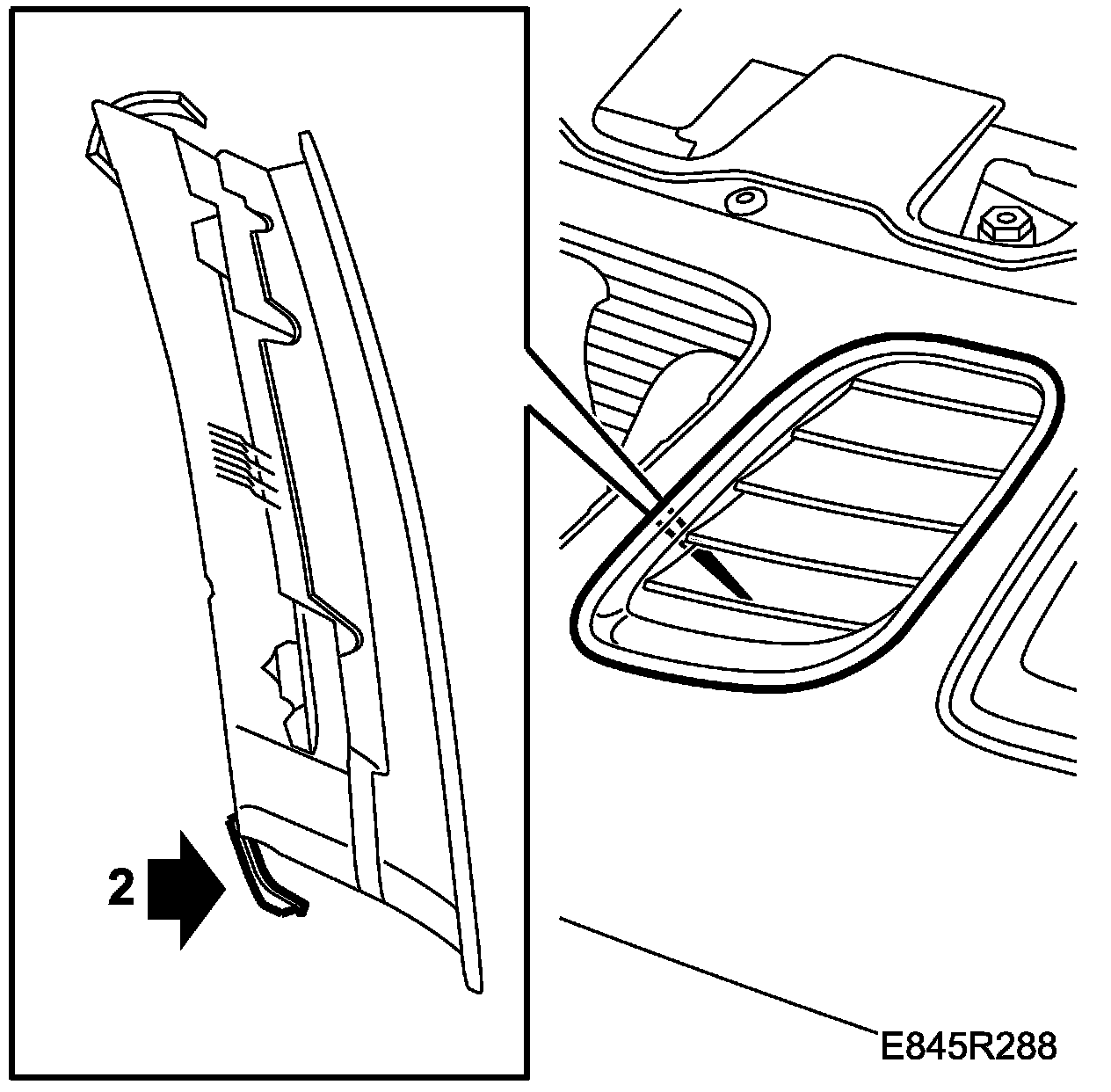

2. Remove the side grille from the back by bending up the lower clips so that they loosen. Lift away the side grille.







To fit

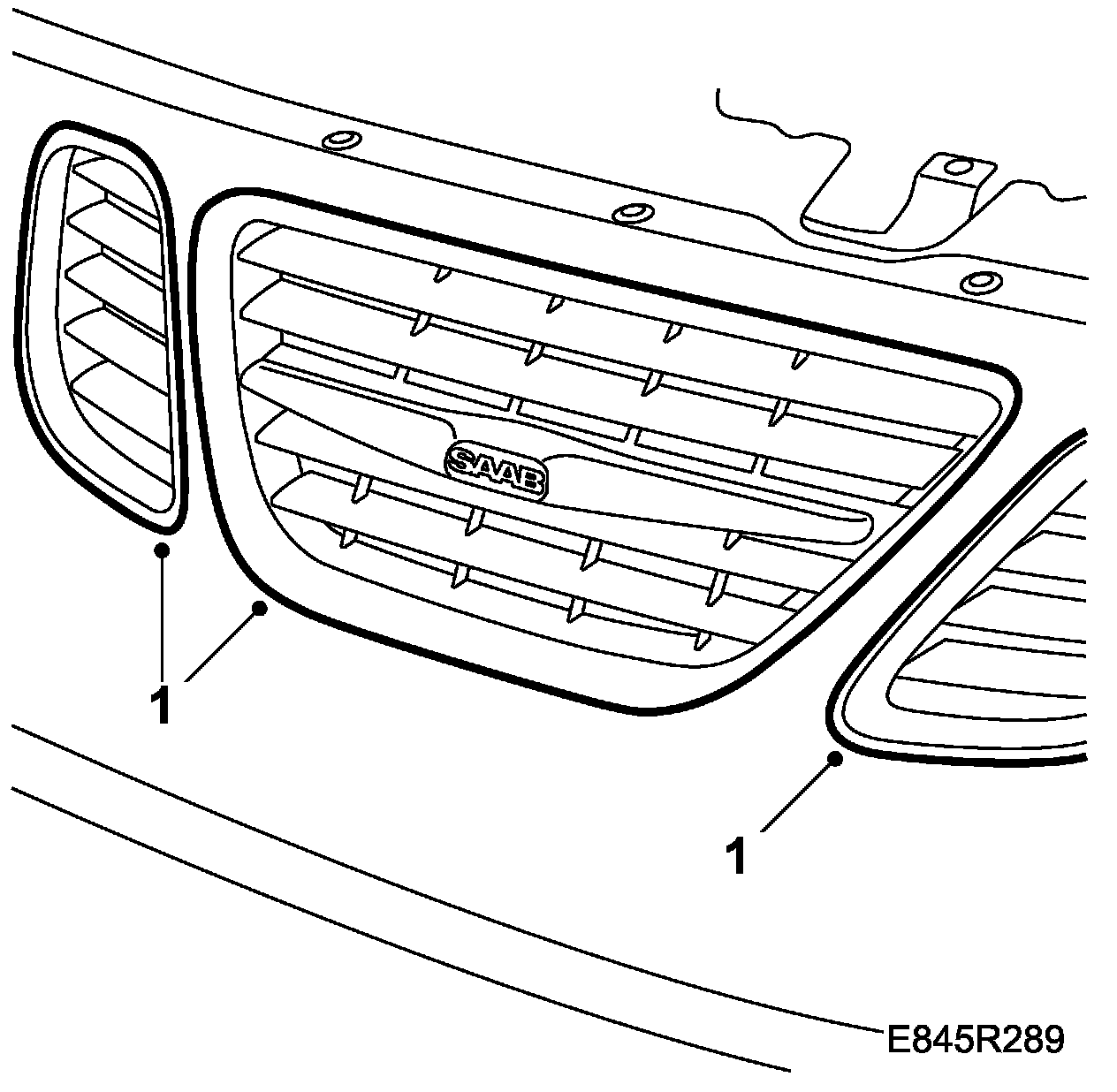

1. Put the grilles in place. Fit them by pressing them into the correct position.
